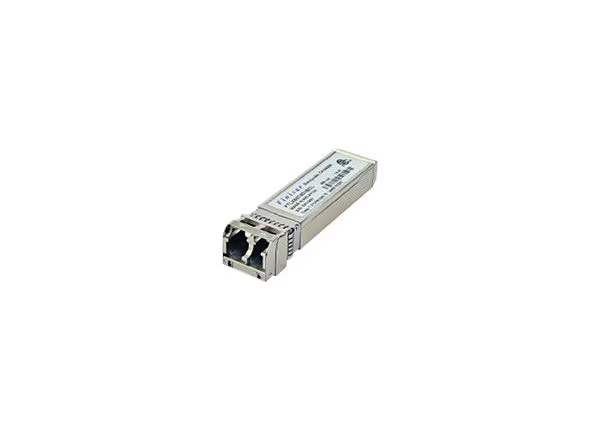

FTLX8574D3BCL 10Gb/s SFP+ transceivers are designed for use in 10-Gigabit Ethernet links over multimode fiber. They arecompliant with SFF-84311, SFF-84322,IEEE 802.3-2012 10GBASE-SR/SW3 and 10G Fibre Channel 1200-Mx-SN-I4. Digitaldiagnostics functions are available via a 2-wire serial interface, as specified in SFF_x005F_xFFFE_84725. The FTLX8574D3BCL is a “limiting module”, i.e., it employs a limiting receiver. Host board designers using an EDC PHY IC should follow the ICmanufacturer’s recommended settings for interoperating the host-board EDC PHY with a limiting receiver SFP+ module. Theoptical transceiver is compliant per the RoHS Directive 2011/65/EU6.
FEATURES• Hot-pluggable SFP+ footprint• Supports 9.95 to 10.5 Gb/s bit rates*• Power dissipation < 1W• RoHS-6 compliant (lead-free)• Commercial temperature range -5°C to 70°C• Single 3.3Vpower supply• Maximum link length of 400m on OM4 MMF• Uncooled 850nm VCSEL laser• Receiver limiting electrical interface• Duplex LC connector• Built-in digital diagnostic functions
APPLICATIONS• 10GBASE-SR/SW 10G Ethernet• 1200-Mx-SN-I 10G Fibre Channel
