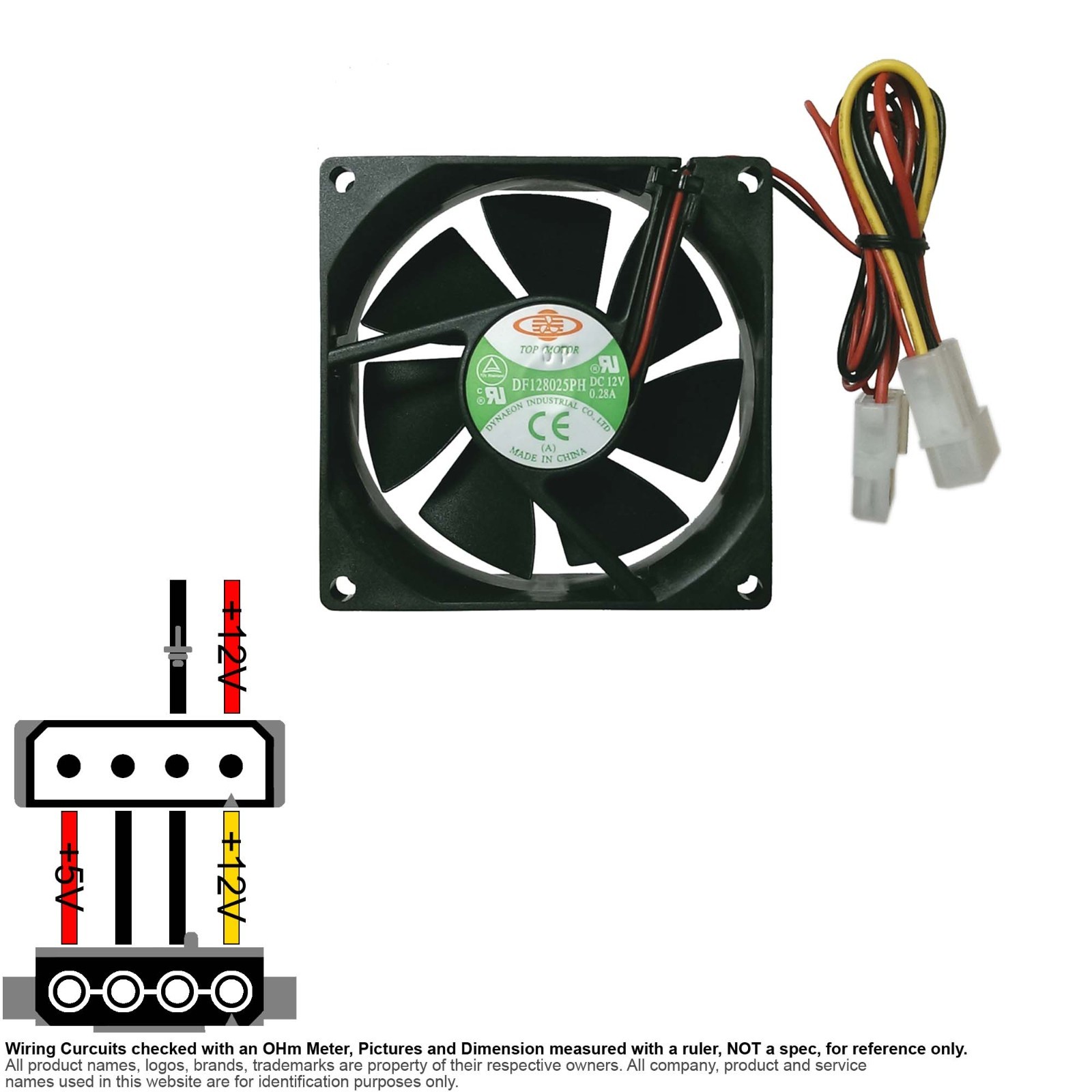

Fan Axial Muffin Cooling DC 12V 80mm 80x80x25 Top Motor DF128025SH 0.28A
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Fan Axial Muffin Cooling DC 12V 80mm 80x80x25 Top Motor DF128025SH 0.28A
Price: US $6.00
  • Description: Axial Flow Rotary Muffin Cooling Fan 80x80x25mm Top Motor DF128025SH Dynaeon Industrial DC12V 0.28A 3.36W Molex Compatible IDE 4-Pin Power Male to Female 19-inch + 3-inch Wire SKU 089746
  • Manufacturer: Dynaeon Industrial Co., Ltd. (the parent manufacturing arm)
  • Brand and Distributor:
    • Dynatron Corp. (the global brand)
    • Top Motor (the product line)
  • Model: (Compatible, Equivalent, & Interchangeable)
    • DF1208PH
    • DF128025PH
  • Brief Spec.:
    • Design: DC Brushless Fan
    • Fan Size: 80x80x25mm
    • Power Rating: DC12V 0.28A 3.36W
    • Bearing: Dual Ball Bearing
    • Speed: 3400~3500 RPM
    • Air Flow: 41~45 CFM
    • Noise Level: 38~39 dB(A)
    • Material: PBT Thermoplastic Polybutylene Terephthalate UL 94V-0 Rated
      • Frame Housing: PBT Thermoplastic Polybutylene Terephthalate UL 94V-0 Rated
      • Impeller Blades: PBT Thermoplastic Polybutylene Terephthalate UL 94V-0 Rated
    • Connection: Molex Compatible IDE 4-Pin Power Male to Female
    • Overall Wire Length: 22-inch
      • 19-inch: from Fan to 4-pin Male Connector
      • 3-inch: from 4-pin Male Connector to 4-pin Female Connector
    • Photos are representative of the model and specifications you will receive; however, the exact factory batch codes, manufacturing dates, and plant location stamps may differ across individual units.
  • Weight: 2.6 oz (estimated shipping weight 7 oz)
  • Condition: (Subject to Availability)
    • SKU ______N - New
  • Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
  • For used with or pulled from: (for reference only)
    • The Top Motor DF1208PH and DF128025PH are the exact same 80mm cooling fan designed as a High-amp high-torque brushless DC motor, integrated reverse polarity protection, auto-restart capabilities, and a heavy-duty physical build optimized for maximum static pressure for High-density enterprise servers, high-wattage power supplies (PSUs), networking equipment rack switches, industrial control cabinets, and aggressive PC gaming chassis exhaust systems.
    • DF128025PH Part Number Breakdown:
      • 'D' DC (Direct Current)
      • 'F' Fan
      • '12' 12V DC operating voltage.
      • '80' 80mm width × 80mm height.
      • '25' 25mm thickness.
      • 'P' Internal Mechanical Format Two-Ball Bearing System.
      • 'H' Factory Tuning Category High Speed output tier.
    • Serial Number Available or Sold:
      • SN 0089701~0089800 New
