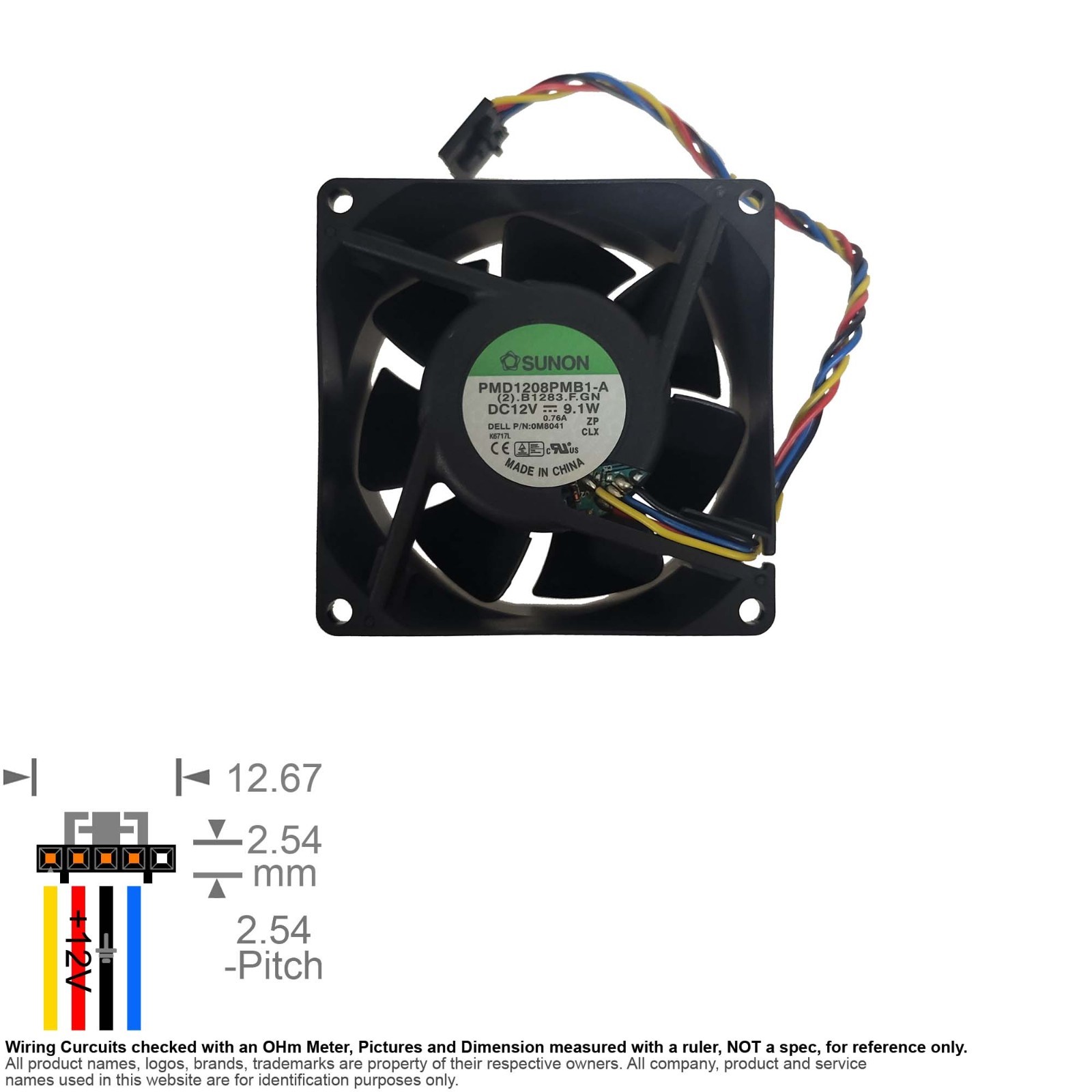

Fan Axial Muffin Cooling DC 12V 80mm 80x80x38 Sunon PMD1208PMB1-A 0M8041 0.76A
SKU ______U - Used, may have signs of cosmetic wear.
Package: Non-retail packaging, in unprinted box or plastic bag.
For use with or pulled from: (for reference only)
Sunon PMD1208PMB1-A (2).B1283.F.GN ZP CLX is a highly specialized 12V high-performance industrial DC brushless axial cooling fan, primarily engineered for enterprise-grade servers, telecom equipment, network switches, and heavy-duty industrial machinery.
'PMD' the fan series (High-power, premium DC motor)
'12' operates on a 12V DC nominal voltage.
'08' frame size width and height 80mm x 80mm.
'P' frame thickness / depth code 38mm thick.
'M' motor power rating code (Medium/High power range).
'B1' Features a Dual Ball Bearing system and represents Sunon's highest relative speed profile (High Speed)
'-A' design generation indicator.
'(2)' Sunon internal frame or motor pole configuration code.
'.B1283' is a proprietary internal manufacturer sub-code designating the exact project number or manufacturing customer specification block.
'.F' equipped with a Third-Wire Frequency Generator / Tachometer output (sends an RPM signal back to the motherboard or server panel to track fan speeds)
'.GN' stands for 'Green Mark' indicating that the product is fully compliant with the global RoHS environment standard.
'Z' Impedance Protected (Auto-Restart) indicates an inherent electrical safety design. If the fan blades become physically blocked or jammed (a locked rotor state), the internal coil impedance limits the current flow. This prevents the motor from overheating, melting its PBT plastic frame, or catching fire, even if power remains connected
'P' Environment Compliance (Protection Class) designates a specific material or build standard—frequently corresponding to Lead-Free / RoHS conformity or localized environmental ingress protections (such as specialized dust or moisture repellency) required by industrial clients.
'CLX' Hardware lines tagged with "CLX" (Non-PWM Control Limits) feature internal motor circuitry that is structurally different from generic "KEEN" or standard consumer lines. Because of these internal components, CLX fans stall easily under standard Pulse Width Modulation (PWM) duty cycle reductions and are meant to run primarily at fixed voltages.
