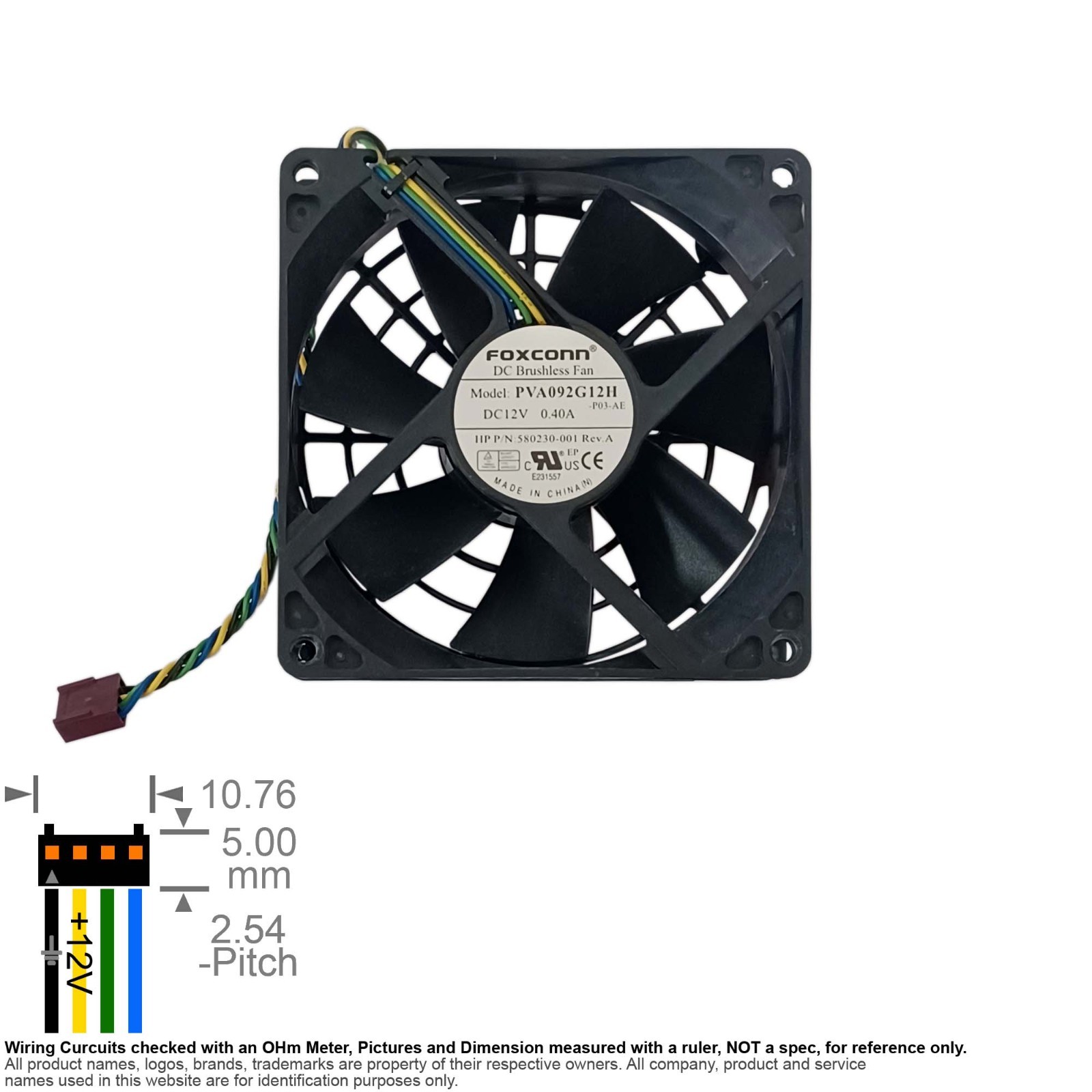

Fan Axial Muffin Cooling DC 12V 92mm 92x92x25 Foxconn PVA092G12H -P03 -AE 0.40A
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Fan Axial Muffin Cooling DC 12V 92mm 92x92x25 Foxconn PVA092G12H -P03 -AE 0.40A
Price: US $10.60
  • Description: Axial Flow Rotary Muffin Cooling Fan 92x92x25mm Foxconn PVA092G12H -P03 -AE HP 580230-001 Rev A UL E 231557 DC12V 0.40A 4.8W 2.54mm Pitch 4-Pin 4-Conductor PWM Connector 6-inch Wire SKU 101155
  • Manufacturer: Foxconn Technology Co., Ltd.
  • Brand: or Distributor: Foxconn / HP
  • Model:
    • Foxconn PVA092G12H -P03 -AE UL E 231557
    • HP 580230-001 Rev A
  • Features.:
    • Design: DC Brushless Cooling Fan
    • Size: 92x92x25mm
    • Power Rating: DC12V 0.40A 4.8W
    • Bearing: Sleeve Bearing
    • Speed: 900 ~ 3600 RPM +/- 5%
    • Air Flow: 22 ~ 61 CFM
    • Noise Level: 11 ~ 32 dB(A)
    • Connector: 2.54mm Pitch 4-Pin 4-Conductor PWM Connector
    • Wire Length: 6-inch
  • Weight: 3.6 oz (estimated shipping weight 8 oz)
  • Condition:(Subject to Availability)
    • SKU ______U - Used, with signs of cosmetic wear.
  • Package:Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
  • For used with or pulled from: (for reference only)
    • PVA092G12H is used in a wide range of HP Compaq and HP Elite business desktop computers, The '-P03' is a revision or configuration code refers to a specific combination of wire length , connector type, and PWM speed profile requested by HP. '-AE' is a sub-revision or regional identifier to ensure the part matches the exact electrical and physical requirements for a specific batch of computer chassis.
      • HP Elite Series - 8000, 8100, 8200 and 8300.
      • HP Compaq Pro Series - 6000, 6005, 6200, 6300, and 6350.
      • HP Compaq Elite 8100 Minitower
      • HP Compaq 6000 Pro SFF
      • HP 8200 Elite Microtower
    • Serial Number Available or Sold:
      • SN 00099183 Used
