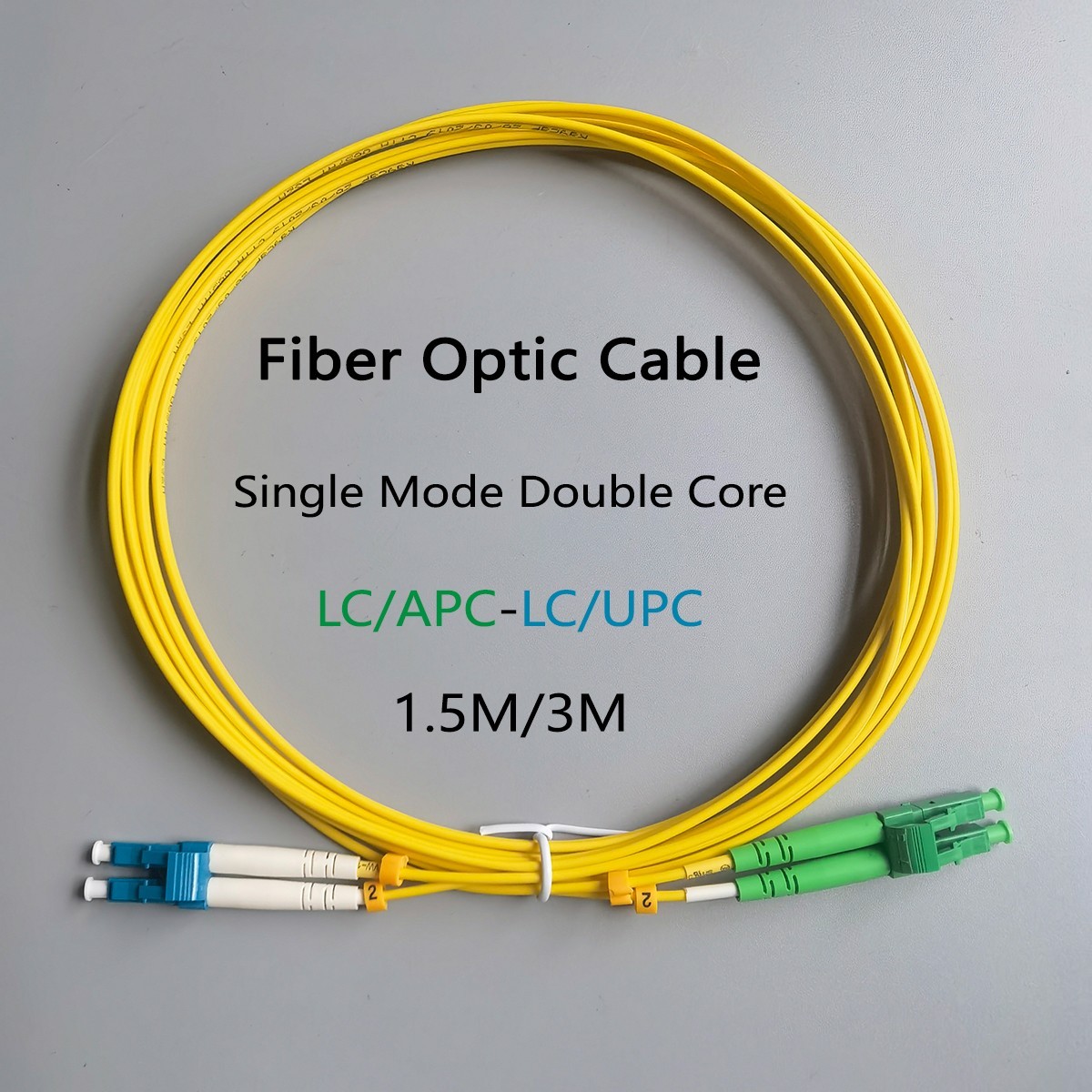

Fiber Optic Cable FTTH LC/APC-LC/UPC Single Mode Double Core 2.0mm 1.5M/3M
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Fiber Optic Cable FTTH LC/APC-LC/UPC Single Mode Double Core 2.0mm 1.5M/3M
Price: CN $9.80
Key Features

  • Single-Mode Performance:Ensures low attenuation and high bandwidth for long-distance data transmission.

  • Hybrid Connector Interface:LC/APC (green boot) to LC/UPC (blue boot) facilitates connections between FTTH networks (typically APC) and customer premises equipment (often UPC).

  • Duplex Design:Two fibers (9/125µm) for offerirectional communication in a single cable.

  • Cable Options:

    • 1.5M PVC, G652D Fiber:Standard single-mode fiber with a flexible PVC jacket, suitable for indoor use.

    • 3M LSZH, G657A1 Fiber:Bend-insensitive fiber with a Low Smoke Zero Halogen (LSZH) jacket, ideal for confined spaces or areas with strict fire safety regulations.

  • 2.0mm Cable Diameter:Slim, lightweight, and easy to route in tight spaces.

  • Precision Ferrule:High-grade ceramic ferrules ensure optimal alignment and low insertion loss.

  • Durable Construction:Reinforced connectors and strain relief boots provide excellent durability and crush resistance.

Technical TypeSingle ModeCable TypeDuplex (Double Core)Cable Diameter2.0mmConnector 1LC/APC (Angled Physical Contact)Connector 2LC/UPC (Ultra Physical Contact)Insertion Loss≤ 0.3 dBReturn LossAPC End: ≥ 65 dB, UPC End: ≥ 50 dBOperating Temperature-20°C to +70°CTensile Load≤ 100 N (during installation)Durability≥ 500 mating cyclesCable Variants:LengthJacket MaterialFiber StandardKey Application1.5 MetersPVCITU-T G.652DGeneral indoor FTTH installations3 MetersLSZHITU-T G.657A1Indoor/outdoor, bend-sensitive areasApplications

  • FTTH (Fiber to the Home) network extensions

  • Connecting ONT/ONU to optical terminals or media converters

  • Patch panels, distribution frames, and telecom cabinets

  • Data centers requiring APC to UPC interconnections

  • CCTV and security system fiber links

  • Broadband and CATV networks
