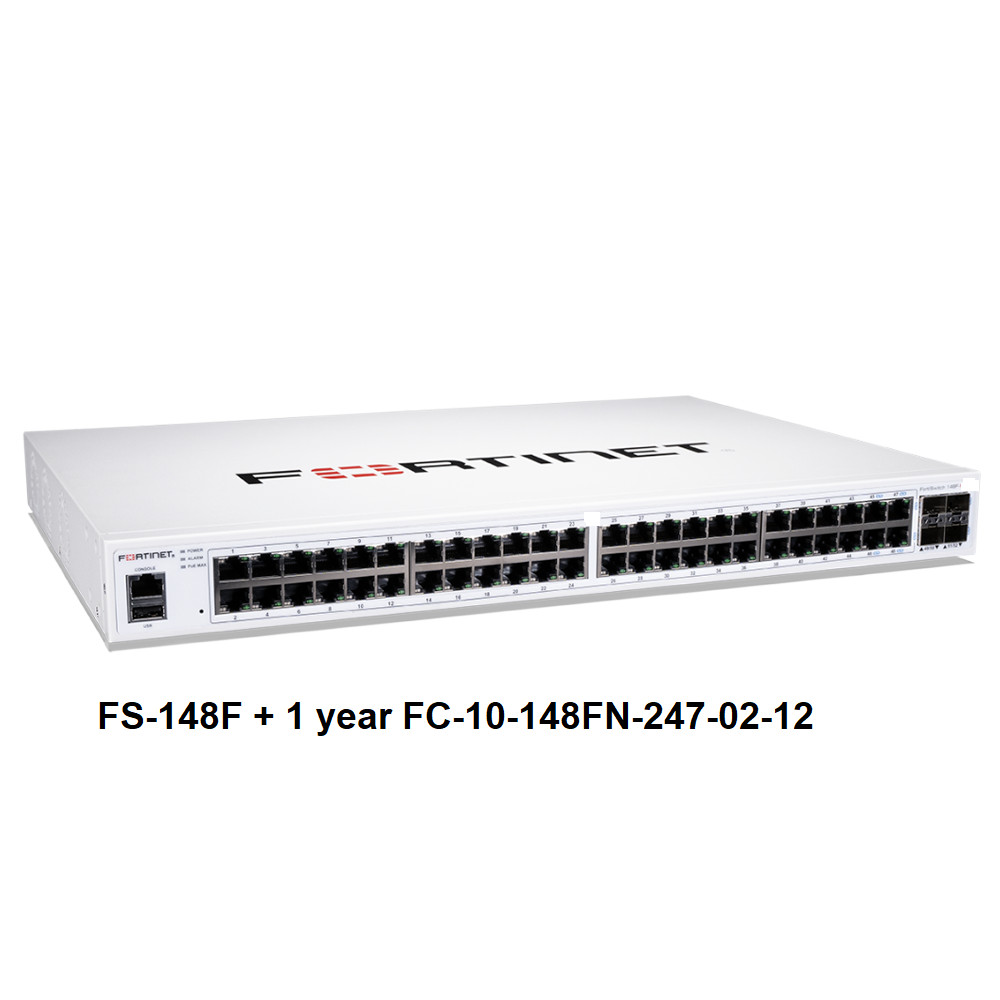

Fortinet FortiSwitch FS-148F 48 port + 1 year FortiCare FC-10-148FN-247-02-12FortiSwitch-148F 1 Year FortiCare Premium Support
Product Specifications
General
Device TypeSwitch - 48 ports - managed
Enclosure TypeSide to back airflow rack-mountable 1U
SubtypeGigabit Ethernet
Ports48 x 10/100/1000 + 4 x 10 Gigabit SFP+
PerformanceSwitching capacity: 176 Gbps | Packets per second: 260 Mbps | Latency: < 1 µs
CapacityVLANs supported: 4000 | Link aggregation groups: 8 | Total link aggregation groups: 128 | Buffer capacity (MB): 2
MAC Address Table Size32K entries
Jumbo Frame SupportYes
Routing ProtocolIGMP, policy-based routing (PBR), MSTP, RSTP, STP
Remote Management ProtocolSNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI, DHCP, IPv4, IPv6, RSTP, RADIUS
Authentication MethodSecure Shell (SSH), RADIUS
FeaturesFlow control, firewall protection, auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, SNTP support, DHCP snooping, STP Root Guard, LACP support, LLDP support, 802.1x authentication, Storm Control, Link Aggregation, Management Information Base (MIB) II, Application Visibility and Control (AVC), LLDP-MED, VLAN Tagging, IP forwarding support, MAC Access Bypass (MAB), BPDU Guard, Link Aggregation Group (LAG)
Compliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.1AX
RAM512 MB DDR3 SDRAM
Flash Memory64 MB
Status IndicatorsStatus
Expansion / Connectivity
Interfaces48 x 1000Base-T RJ-45 | 4 x 10GBase-X SFP+ | 1 x serial (console) RJ-45
Power
Power DeviceInternal power supply
Voltage RequiredAC 120/230 V (50 - 60 Hz)
Power Consumption Operational55.8 Watt
Miscellaneous
MTBF10 years
Compliant StandardsUL, VCCI, BSMI, CB, FCC, RoHS2, RCM
Dimensions & Weight
Width17.3 in
Depth10.2 in
Height1.7 in
Weight7.63 lbs
