TheGBM-7000-S85 is a multi-mode short haul (SX) Gigabit Ethernet GBIC type optical module with 1.25G data rate and SC optical connector. The GBIC is programmed for Cisco compatibility.
It operates as 1000Base-SX standard, covering a range of 550m over multi-mode 50/125um fiber or up to 300m over multi-mode 62.5/125um fiber circuit. It can be used in any modern Ethernet switch equipped with GBIC slots. The opticalmodule has been tested and found 100% compatible with various Ethernetswitches from major manufacturers like: Cisco, Nortel, Extreme, ZyXEL,D-Link or Netgear.Technical Specifications:
Operating media :MM - multimode fiber 50/125um (550m - distance covered)
(works on 62.5/125um up to 275m only)
Data rate : 1.25G
Optical connector : SC
Wavelength :850nm
Max. Output Power(dBm) : -4 dBm
Min. Output Power (dBm) : -9.5 dBm
Sensitivity (dBm) : -18 dBm
Power budget (dB) : 8.5 dB

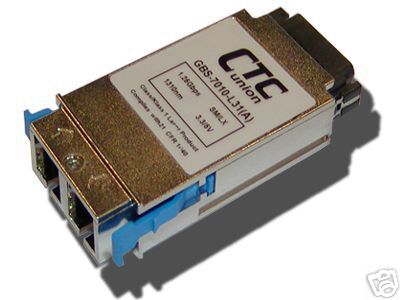

Diode type : VCSEL Note: Picture is depicting the singlemode GBS-7010-L31 GBIC module, but the GBM-7000-S85 looks identical.
Allunits are new. All products sold by Fiber Optic for All come with 2 years manufacturer warranty.
