Item description

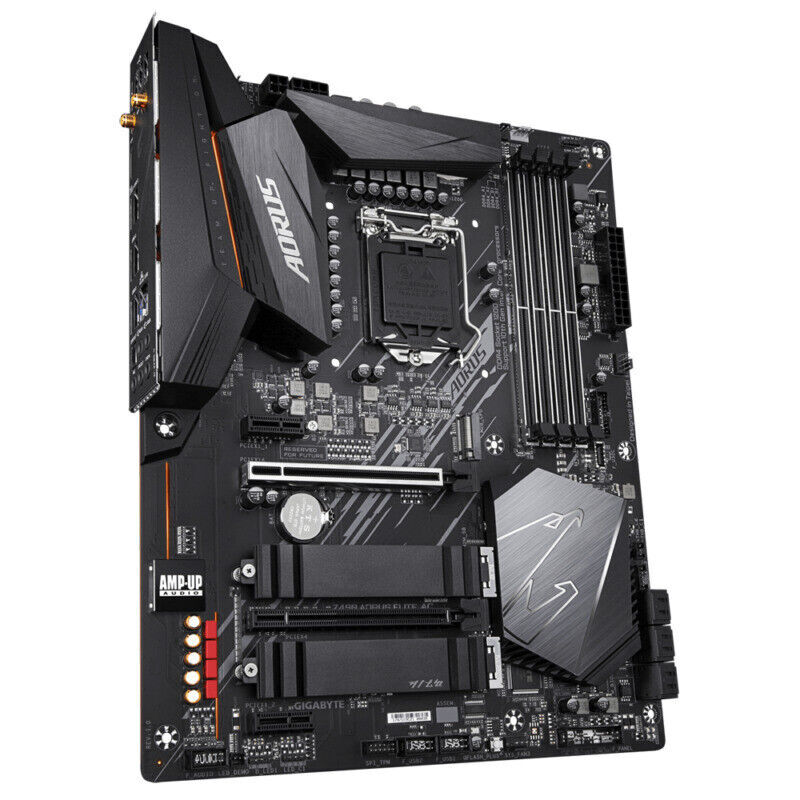

GIGABYTE Z490 AORUS ELITE AC Motherboard Intel Z490 ATX LGA 1200 DDR4 Core 2xM.2

CPU

LGA1200 Socket Support - 10th Generation Intel® Intel® Core™ i9 Processor/Intel® Core™ i7 Processor/Intel® Core™ i5 Processor/Intel® Core™ i3 Processor/Intel® Pentium® Processor/Intel ® Celeron® Processor

L3 cache depends on CPU

Chipset

Intel® Express Chipset

RAM

4 DDR4 DIMM slots supporting up to 128GB (single slot supports 32 GB memory)

Supports dual-channel memory technology

Support DDR4 5000(OC)/4933(OC)/4800(OC)/ 4700(OC)/ 4600(OC)/ 4500(OC)/ 4400(OC)/ 4300(OC)/4266(OC) / 4133(OC) ) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3666(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3300(OC ) / 3200(OC) / 3000(OC) / 2933 / 2800 / 2666 / 2400 / 2133 MHz

* XMP memory is required to support 3200 MHz.

Supports ECC Un-buffered DIMM 1Rx8/2Rx8 memory (operating in non-ECC mode)

Support non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory

Supports Extreme Memory Profile (XMP) memory

Display function

I Graphics-based processor® with Intel® HD Graphics support:

1 HDMI port, supports resolution up to 4096x2160@30 Hz

* Support HDMI 1.4 version and HDCP 2.3.

Support * maximum shared display memory * 512MB

Sound effect

Integrated Realtek® ALC1200 chip

Support High Definition Audio

Support 2/4/5.1/7.1 channel

Support S/PDIF output

The internet

Integrated Realtek® 2.5GbE network chip (2.5 Gbit/1 Gbit/100 Mbit)

Wireless communication module

Intel® Wi-Fi AC 9462:

Intel® CNVi interface 802.11a/b/g/n/ac, supports 2.4/5 GHz wireless dual-band

BLUETOOTH 5

Support 11ax 160MHz wireless communication standard, can support up to 433 Mbps

* Actual transfer speed will vary depending on usage environment and equipment.

Expansion slot

1 PCI-E x16 slot, supporting x16 operating specification (PCIEX16)

*In order to maximize the performance of the graphics card, be sure to install the *PCIEX16 slot when installing a graphics card.

1 PCI-E x16 slot, supports x4 running specification (PCIEX4)

2 PCI-E x1 slots

(All PCI-E slots support PCI-E 3.0)

Support ASPM L1.2 power management protocol

Multiple Display Technology

Supports AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technology

Storage device interface

2 M.2 slots (support Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD) (M2A_SB/M2M_SB)

6 SATA 3.0 ports

Supports RAID 0, RAID 1, RAID 5 and RAID 10 functions

Supports Intel® Optane™ Memory Technology

Support ASPM L1.2 PCI-E power management protocol

USB

Chipset:

2 USB Type-A™ ports on rear panel

One USB Type-C™ port needs to be connected to the USB socket on the motherboard via a flat cable, supporting USB 3.2 Gen 1

6 USB 3.2 Gen 1 ports (4 on the rear panel, 2 need to be connected from the USB socket on the motherboard via a cable)

Based on chipset + 2 USB 2.0 Hubs:

8 USB 2.0/1.1 ports (4 on the rear panel, 4 need to be connected from the USB socket on the motherboard via a cable)

Internal socket

1 24PIN motherboard power socket

1 8PIN CPU power socket

1 4PIN CPU power socket

2 M.2 SSD sockets

6 SATA 3.0 sockets

1 CPU fan header

1 CPU water cooling fan socket

3 system fan sockets

2 programmable LED strip power sockets

2 RGB LED strip power sockets

1 motherboard jumper socket

1 front audio jack

1 x USB Type-C™ socket, supports USB 3.2 Gen 1

1 USB 3.2 Gen 1 socket

2 USB 2.0/1.1 sockets

1 security encryption module socket (only used with GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0)

2 Thunderbolt™ expansion daughter card sockets

1 clear CMOS data pin

1 Q-Flash Plus button

Rear panel unit connection socket

USB Type-A™ port (red)

4 USB 3.2 Gen 1 ports

USB 2.0/1.1 ports

SMA antenna interface (2T2R)

1 HDMI interface

1 RJ-45 network cable interface

1 digital optical output interface

5 audio interfaces

I/O Controller

Integrated iTE® I/O controller chip

BIOS

1x 256 Mbit flash

Use an authorized AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features

Operating system

Support Windows 10 64-bit

Dimension

ATX ; 30.5cm x class="MsoNormal" level1 lfo1;tab-stops:list 36.0pt">

1 x motherboard.
