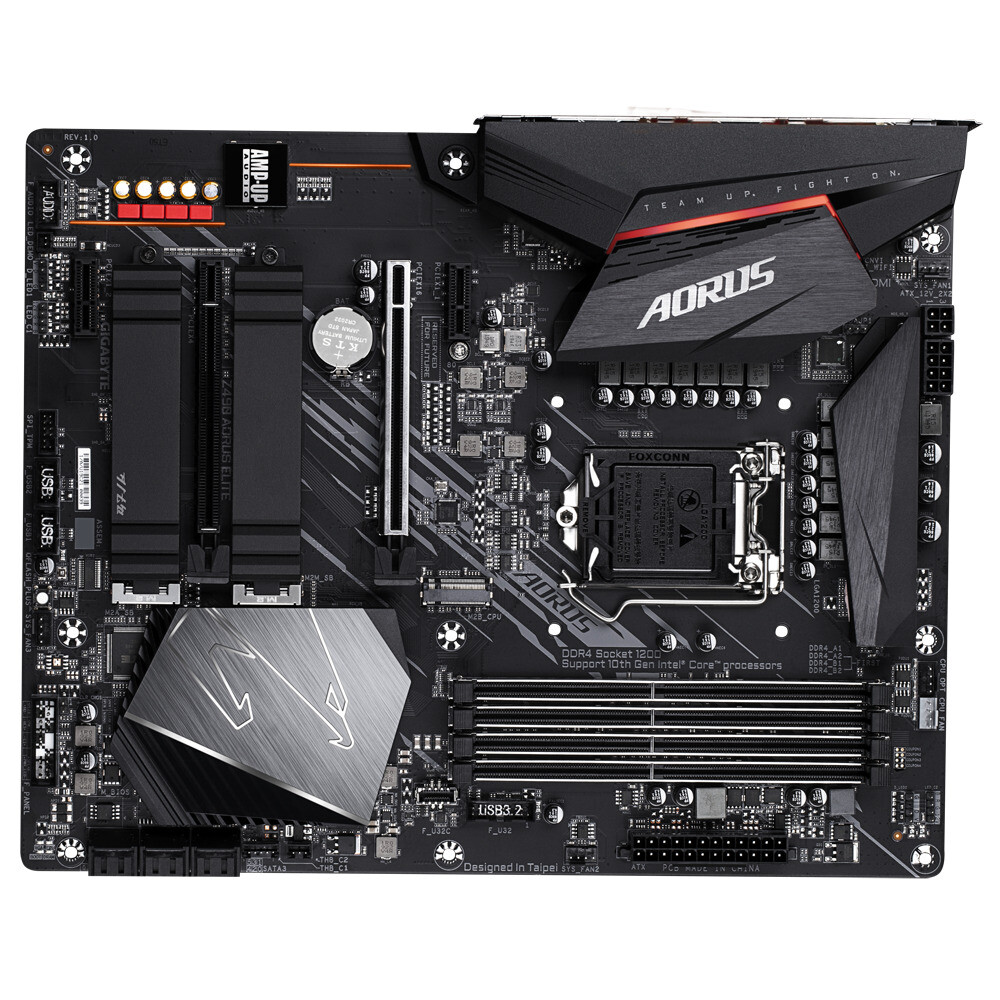

GIGABYTE Z490 AORUS ELITE Motherboard Intel Z490 LGA 1200 DDR4 ATX Core USB 3.2

CPU

LGA1200 socket support - 10th generation processors: Intel® Core™ i9 processor/ Intel® Core™ i7 processor/ Intel® Core™ i5 processor/ Intel® Core™ i3 processor/ Intel® Pentium® processor/ Intel® Celeron® Processor

L3 cache depends on Z490 Express Core™ i9/i7 Processor:

Support DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) ) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C. ) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz

Intel® Core™ i5/i3/Pentium®/Celeron® Processors:

Support DDR4 2666/2400/2133 MHz

4xDDR4 DIMM slots supporting up to 128 GB (single slot supports 32 GB capacity)

Supports ECC Un-buffered DIMM 1Rx8/2Rx8 memory (operating in non-ECC mode)

Support non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory

Supports Extreme Memory Profile (XMP) memory

Display function

Display-capable processor-supports Intel® HD Graphics:

1xHDMI port, can support resolution up to 4096x2160@30 Hz

* Support HDMI 1.4 version and HDCP 2.3.

Support *shared display memory*512 MB

Sound effect

Integrated Realtek® ALC1200 chip

Support High Definition Audio

Support 2/4/5.1/7.1 channel

Support S/PDIF output

The internet

Integrated Realtek® 2.5GbE network chip (2.5 Gbit/1 Gbit/100 Mbit)

Expansion slot

1xPCI-E x16 slot, supporting x16 operating specification (PCIEX16)

* To maximize the performance of the graphics card, be sure to install the *PCIEX16 slot when installing a graphics card.

1xPCI-E x16 slot, supports x4 running specification (PCIEX4)

2xPCI-E x1 slots

(*PCI Express slots support PCI Express 3.0)

Support ASPM L1.2 power management protocol

Multiple Display Technology

Supports AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technology

Storage device interface

2xM.2 slots (support Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD) (M2M_SB/M2A_SB)

6xSATA 3.0 ports

Supports RAID 0, RAID 1, RAID 5 and RAID 10 functions

Intel® Optane™ Memory Ready

Support ASPM L1.2 PCI-E power management on chipset:

2xUSB 3.2 Gen 2 Type-A ports (red) on rear window IO

1x USB Type-C™ port, supports USB 3.2 Gen 1, needs to be connected to the USB socket on the motherboard via a flat cable

6xUSB 3.2 Gen 1 ports (4 in the rear window IO, 2 need to be connected from the USB socket in the motherboard via a cable)

Based on chipset + 2 USB 2.0 Hubs:

8xUSB 2.0/1.1 ports (4 in the rear window IO, 4 need to be connected from the USB socket in the motherboard via the cable)

Internal socket

1x24PIN motherboard power socket

1x8PIN CPU power socket

1x4PIN CPU power socket

2xM.2 SSD slots

6xSATA 3.0 ports

1xCPU fan header

1xCPU water cooling fan socket

3xsystem fan sockets

2xprogrammable LED lights with power sockets

2xRGB LED lights with power sockets

1xmotherboard jumper socket

1xfront audio jack

1xUSB Type-C™ socket, supports USB 3.2 Gen 1

1xUSB 3.2 Gen 1 socket

2xUSB 2.0/1.1 sockets

1xsecurity encryption module socket (only used with GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0)

2xThunderbolt™ expansion daughter card sockets

1xclear CMOS data pin

1xQ-Flash Plus button

Rear panel unit connection socket

2xUSB 3.2 Gen 2 Type-A ports (red)

4xUSB 3.2 Gen 1 ports

4xUSB 2.0/1.1 ports

1xHDMI interface

1xRJ-45 network cable interface

1xdigital optical output interface

5xaudio interfaces

I/O Controller

Integrated iTE® I/O controller chip

BIOS

1x 256 Mbit flash

Use an authorized AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Operating system

Support Windows 10 64-bit

Form Factor

ATX ; 30.5cmx 24.4cm

• 1 x motherboard.

• 2 x SATA II cables.

• 1 x I/O shield.
