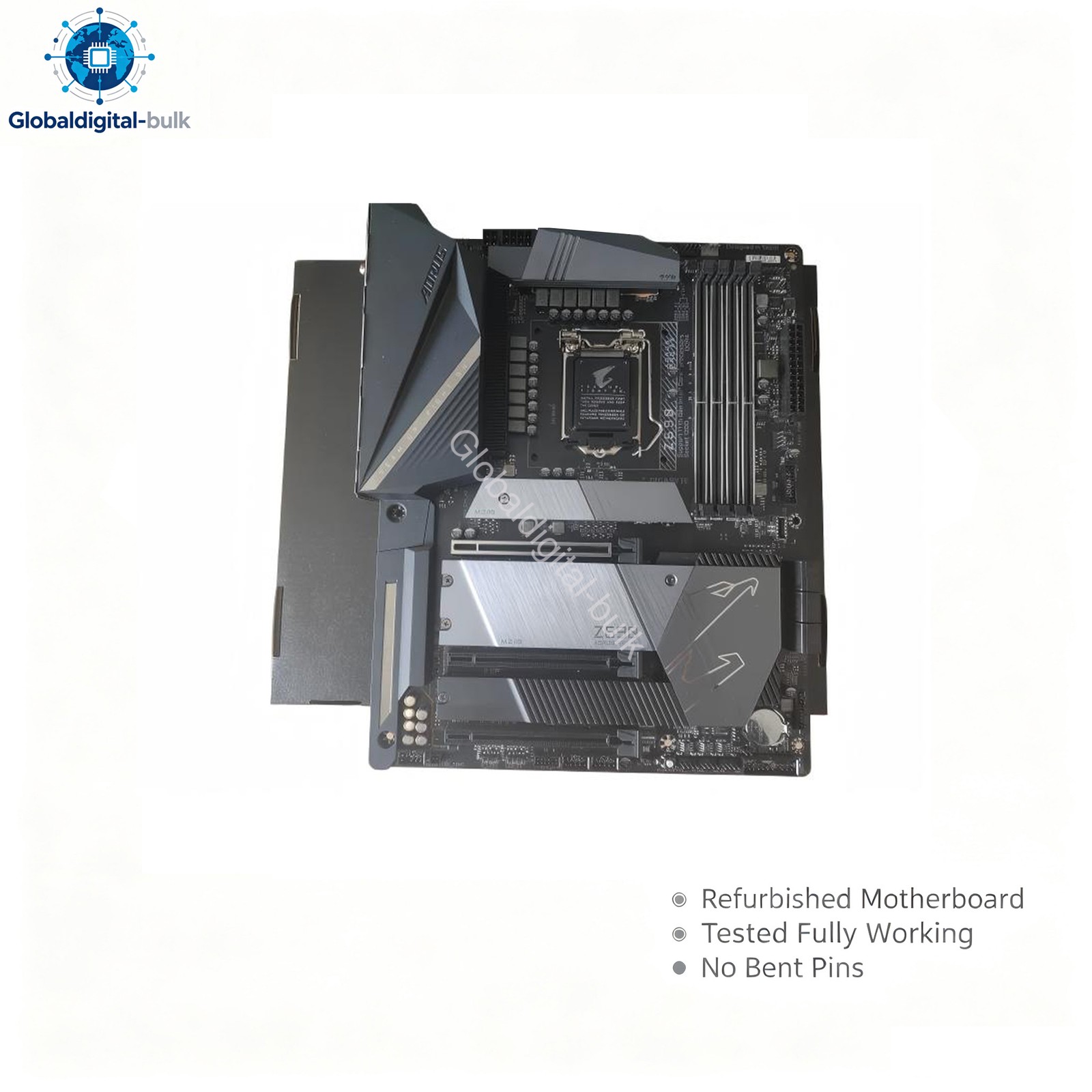

GIGABYTE Z590 AORUS PRO AX LGA1200 ATX Motherboard DDR4 4×M.2 WiFi6 For 10th11th
Price: CN $168.45
Model: GIGABYTE Z590 AORUS PRO AX (Rev.1.0)
  1. CPU SupportSocket: LGA1200Compatible CPUs: 11th & 10th Gen Intel Core i9/i7/i5/i3, Pentium Gold, Celeron ProcessorsPower: Direct 12+1 Phase Digital 90A Smart Power Stage VRM, Solid 8+4 pin CPU power connector, 2nd Gen Direct-Touch Heatpipe VRM Heatsink
  2. ChipsetIntel Z590
  3. Form FactorATX, 30.5 cm × 24.4 cm, 6-layer PCB with 2oz Copper
  4. Memory4 × DDR4 DIMM sockets, Dual Channel Non‑ECC UnbufferedMax Memory: 128 GBSupported Speed (11th Gen CPU): DDR4 MHzSupports XMP profile, memory signal shielding armor
  5. Expansion Slots
  • 1 × PCIe 4.0 x16 (Graphics slot)
  • 2 × PCIe 3.0 x16 (Max x4 bandwidth)
  • 3 × PCIe 3.0 x1
  1. Storage
  • 4 × M.2 Key M sockets, all equipped with M.2 Thermal Guard; supports 2242/2260/2280 PCIe4.0/3.0 NVMe SSD, Intel Optane ready
  • 6 × SATA III 6Gb/s ports, Intel RAID supported
  1. Back Panel I/O
  • 1 × DisplayPort
  • 1 × USB 3.2 Gen2x2 Type-C
  • 4 × USB 3.2 Gen2 Type-A
  • 4 × USB 3.2 Gen1 Type-A
  • 4 × USB 2.0
  • 1 × RJ45 2.5G LAN
  • Wi-Fi SMA antenna connectors
  • Optical S/PDIF out
  • 5 × 3.5 mm Audio Jacks
  1. Internal Onboard Headers
  • USB 3.2 Gen2 Type-C front panel header
  • USB 3.2 Gen1 header (2 ports)
  • Two USB 2.0 headers
  • Multiple hybrid fan & pump headers with Smart Fan 6 & FAN STOP
  • 2 × RGB LED strip headers, 2 × Addressable RGB LED headers
  • Q-Flash Plus button (CPU-less BIOS update)
  • Front audio, COM, TPM, chassis intrusion, Thunderbolt expansion header
  1. LAN & WirelessIntel I225-V 2.5G Ethernet with cFosSpeed; Intel Wi-Fi 6 AX210 + Bluetooth 5.2, Dual-band 2.4G/5GHz
  2. AudioRealtek ALC4080 HD Audio, WIMA premium audio capacitors, AMP-UP Audio Noise Guard shielding
  3. RGB LightingRGB FUSION 2.0, multi-zone onboard RGB lighting, sync with RGB & ARGB LED strips
  4. Thermal Design2nd Gen Fins-Array VRM heatsink, direct-touch heatpipe, 4 independent M.2 thermal guards, high thermal conductivity pads
  5. Operating SystemWindows 10 64-bit, Windows 11 64-bit
  6. FeaturesReinforced PCIe steel slots, anti-sulfur resistors, pre-mounted I/O shield, Q-Flash Plus BIOS flash without CPU
