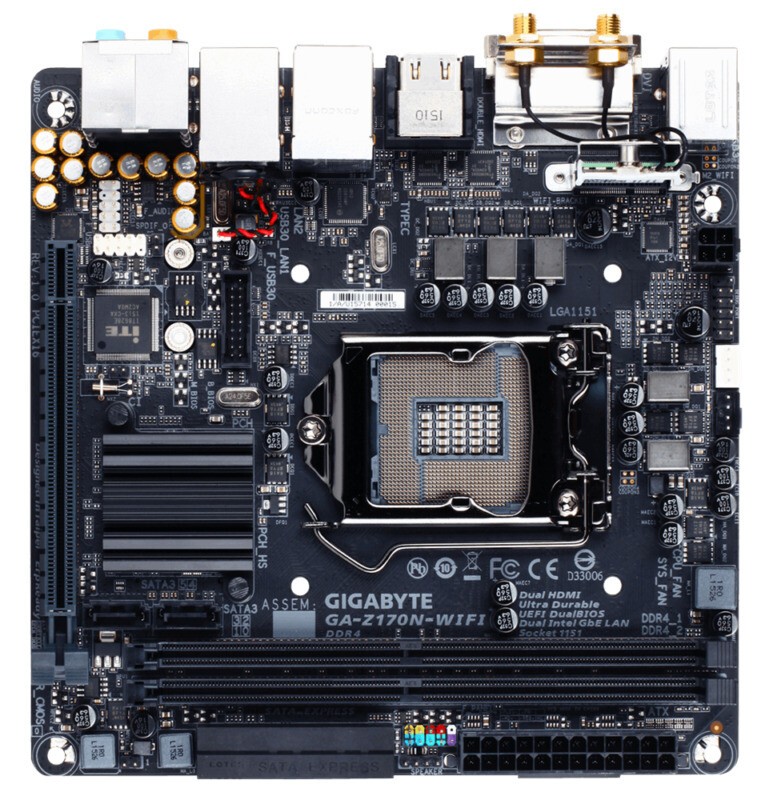

Description
2x sata cable(free gift).
1 xI/O back panel.
itemintroduction
CPU
Support LGA1151 socket processors: Intel® Core™ i7 processor / Intel® Core™ i5 processor / Intel® Core™ i3 processor / Intel® Pentium® processor / Intel® Celeron® processor
L3 cache depends on CPU
Chipset
Intel® Z170 Express Chipset
RAM
2 DDR4 DIMM slots, support up to 32 GB
* Due to the limitation of Windows 32-bit operating system, if more than 4 GB of actual memory is installed, the actual displayed memory capacity will be less than 4 GB.
Supports dual-channel memory technology
Support DDR4 3466(O.C.) /3400(O.C.) /3333(O.C.) /3300(O.C.) /3200(O.C.) /3000(O.C.) /2800(O.C.) /2666(O.C.) /2400(O.C.) /2133 MHz
Supports ECC UDIMM 1Rx8/2Rx8 memory (operating in non-ECC mode)
Support non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory
Supports Extreme Memory Profile (XMP) memory
Display function
Built-in display capable processor - supports Intel® HD Graphics:
1 DVI-D interface, can support resolution up to 1920x1200@60 Hz
* This DVI-D interface does not support the function of converting to VGA.
2 HDMI ports supporting resolutions up to 4096x2160@24 Hz
* Support HDMI 1.4 version.
Can support up to three screen display simultaneously output
Supports maximum shared display memory up to 1024 MB
Sound effect
Built-in Realtek® ALC1150 chip
Support High Definition Audio
Support 2/4/5.1/7.1 channel
Support S/PDIF output
The internet
Built-in 2 Intel® GbE network chips (10/100/1000 Mbit)
Wireless communication module
Wi-Fi 802.11 a/b/g/n/ac, supports 2.4/5 GHz wireless dual-band
BLUETOOTH 4.2, 4.1, BLE, 4.0, 3.0, 2.1+EDR
Support 11ac wireless communication standard, can support transmission speed up to 867 Mbps
* Actual transfer speed will vary depending on usage environment and equipment.
Expansion slot
1 PCI-E x16 slot, supports x16 running specification
(PCI-E x16 slot supports PCI-E 3.0)
1 M.2 WiFi slot for wireless communication module (M2_WIFI)
Storage device interface
Built into the chipset:
1 M.2 SSD slot on the back of the motherboard (supports 2260/2280 SATA and PCI-E x4/x2/x1 SSD)
2 SATA-E ports
6 SATA 3.0 ports
Supports RAID 0, RAID 1, RAID 5 and RAID 10 functions
USB
Built into the chipset:
2 USB 2.0 ports need to be connected from the onboard USB socket of the motherboard via a flat cable
6 USB 3.0 ports (4 on the rear window of the motherboard, 2 from the onboard USB socket on the motherboard via a flat cable)
1x USB Type-C™ port on the rear window of the motherboard, supports USB 3.0
Internal socket
1 24PIN motherboard power socket
1 4PIN CPU power socket
6 SATA 3.0 ports
2 SATA-E ports
1 M.2 SSD slot
1 CPU fan header
1 system fan socket
1 motherboard jumper socket
1 front audio jack
1 USB 3.0 socket (each socket can be connected to up to two front ports)
1 USB 2.0 socket (each socket can be connected to up to two front ports)
1 S/PDIF output socket
1 speaker socket
1 clear CMOS data jumper
1 computer case open detection pin
Rear panel unit connection socket
1 PS/2 keyboard/mouse interface
2 HDMI ports
2 WiFi antenna ports
1 DVI-D interface
4 USB 3.0 ports
1x USB Type-C™ port, supports USB 3.0
2 RJ-45 network cable ports
1 S/PDIF optical output socket
5 audio interfaces (center and subwoofer output, rear speaker output, audio input, audio output, microphone)
I/O Controller
Built-in iTE® I/O controller chip
BIOS
2 x 64 Mbit flash
Use an authorized AMI UEFI BIOS
Support Graphical Dual BIOS Technology
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Operating system
Supports Windows 10 64-bit (7th Generation Intel® Processor)
Support Windows 10 64-bit / Windows 8.1 64-bit / Windows 7 32-bit / 64-bit (6th Generation Intel® Processor)
Form Factor
Mini-ITX size; 17.0cm x 17.0cm
