WELCOME TO ELECREALM store Product Description HDMI+DVI+VGA+Audio Controller Board for 17.0" 1440x900 Screen LTN170BT07-G01 B170PW01 V.0 V.1 LTN170WX-L01 N170C2-L01 with 1-Lamp CCFL Backlight

---The power adapter for the board is DC+12V 3.0A~5.0A.

---12V DC Adapter(with 5.5x2.5 male connector. The plug of the power cord is American standard):

https://www..com/itm/402243169332

---Programmer for upgrading the firmware of this  controller board:

https://www..com/itm/402265558558 The LCD's connector is Wire to Board type, pin pitch 1.0mm, 30Pin.
The backlight connecotr is BHSR-02VS-1(Wire to Board type), pin pitch 3.5mm, total amount 1 pcs. B170PW01 V.0 V.1 LTN170BT07-G01 LTN170WX-L01 -L05 N170C2-L01 -L02 B170PW03 V.0 V.1 V.2 V.3 V.4 V.5 V.9 LTN170BT08-G01 -001 LTN170X2-L02 B170PW05 V.1 V.4 LTN170BT09-001 B170PW06 V.2 V.3

---The power for the board+LCD and the screen's voltage are 2 different parameters.
---Normally, the board works at DC+12V3.0A~8.0A.
---The screen's voltage only can be supplied by the board's jumper. Normally, there are 3 kinds of voltages for the LCD: +3.3V +5.0V +12.0V.  The jumper has been set at +5V for this listing LCD. Please don't jump it again. Or else, LCD will be damaged at +5.0V/+12.0V . Kind Note: ---The driver board can be worked with lots of lcd with different resolution after upgrading the firmware,such as:
......800 x480
......800 x600
......1024x768
......1280x800
......1280x1024
......1366x768
......1440x900
......1600x900
......1920x1080
......1920x1200
......up to 2048x1154@60Hz Package includes:

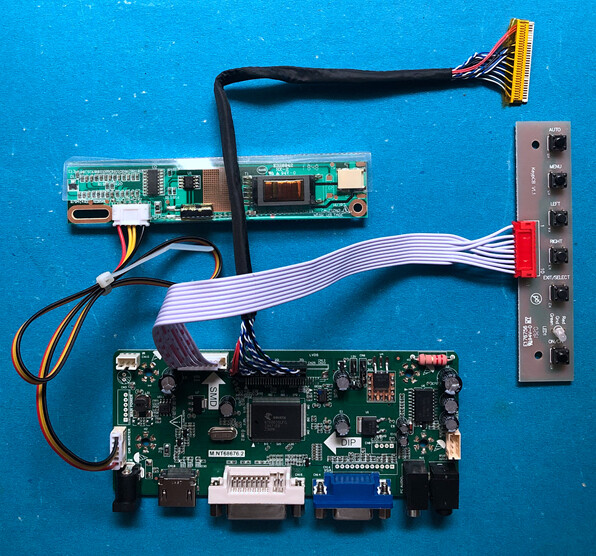

---1× HDMI VGA DVI LCD Controller Board M.NT68676

---1× Keyboard with Wire

---1× LVDS Cable(FI-XB30SR-HF11, pin pitch 1.0mm, pin amount 30pins)

---1× 1-Lamp CCFL Inverter Board
