HP Envy TE01 TG01 Rother Motherboard L56019-601 L56019-001 L56808-001 For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

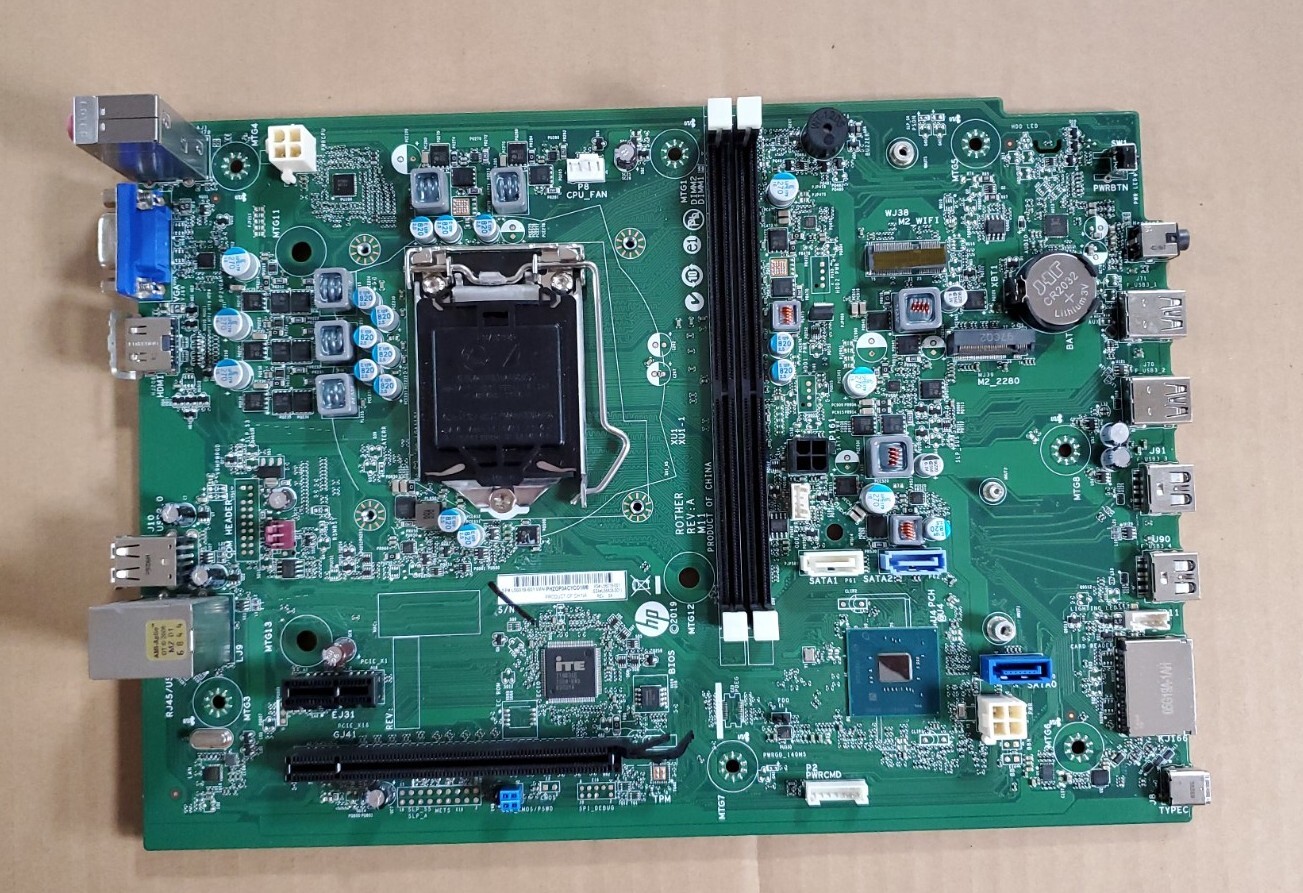

HP Envy TE01 TG01 Rother Motherboard L56019-601 L56019-001 L56808-001

Price: US $219.99

HP Desktop PCs - motherboard specifications, RotherMotherboard description

HP name: Rother
SSID: 8653

Form Factor

Customized
Dimensions: 29.09 x 20.3 cm (11.45 x 7.99 in)

Chipset

H370

Processor upgrade information

TDP: up to 65 W
Socket type: LGA1151
Motherboard supports the following processor upgrades:ProcessorTDPIntel Core i7-9700 3 GHz Base frequency, 4.7 GHz with Intel Turbo Boost Technology, 12 MB cache, Octa core (Coffee Lake-R)65 WIntel Core i7-9700F 3 GHz Base frequency, 4.7 GHz with Intel Turbo Boost Technology, 12 MB cache, Octa core (Coffee Lake-R)65 WIntel Core i5-9400 2.9 GHz Base frequency, 4.1 GHz with Intel Turbo Boost Technology, 9 MB cache, Hexa core (Coffee Lake-R)65 WIntel Core i5-9400F 2.9 GHz Base frequency, 4.1 GHz with Intel Turbo Boost Technology, 9 MB cache, Hexa core (Coffee Lake-R)65 WIntel Core i3-9100 3.6 GHz Base frequency, 4.2 GHz with Intel Turbo Boost Technology, 6 MB cache, Quad core (Coffee Lake-R)65 WIntel Core i3-9100F 3.6 GHz Base frequency, 4.2 GHz with Intel Turbo Boost Technology, 6 MB cache, Quad core (Coffee Lake-R)65 WIntel Core i5-8400 2.8 GHz Base frequency, 4.0 GHz with Intel Turbo Boost Technology, 9 MB cache, Hexa core (Coffee Lake-S)65 WIntel Core i3-8100 3.6 GHz Base frequency, 6 MB cache, Quad core (Coffee Lake-S)65 WIntel Pentium Gold G5420 3.8 GHz Base frequency, 4 MB cache, Dual core (Coffee Lake-R)54 WIntel Celeron G4930 3.2 GHz Base frequency, 2 MB cache, Dual core (Coffee Lake-R)54 W

Memory upgrade information

Dual channel (1 DIMM per channel) memory architecture
Two DDR4 UDIMM (288-pin) sockets
Supports PC4-21300 (DDR4-2666)
Supports 8 GB and 16 GB DDR4 UDIMMs
Supports up to 4 GB on 32-bit systemsNOTE:32-bit systems cannot address a full 4.0 GB of memory.
Supports up to 32 GB (unbuffered) with two 16 GB DIMMs on 64-bit computersNOTE:Maximum memory shown reflects the capability of the hardware and can be limited further in the operating system.

VideoIntegrated graphics

Intel UHD Graphics 630NOTE:Integrated video is not available if a graphics card is installed.

AudioIntegrated audio

Audio Codec: ALC3601-CG
High Definition (Azalia) 5.1 channel audio supportNOTE:The motherboard supports 5.1 surround sound. If the computer does not have the required audio jacks for a 5.1 configuration, additional hardware is required to use 5.1 surround sound.
Audio jack presence detectionNOTE:An internal speaker is not included with integrated audio. External speakers or headphones are required to hear sound.NOTE:Integrated audio is not available if a sound card is installed.

NetworkLAN: 1000BASE-T

Technology: Realtek RTL8118ASH
Data transfer speeds: up to 10/100/1000 Mb/s
Transmission standards: 1000BASE-T Ethernet

Expansion slots

One PCIe x16 socket (for discrete graphic card)
One PCIe x1 socket
One M.2 socket 1, key A
One M.2 socket 3, key M

I/O portsBack I/O portsNOTE:The configuration might vary depending on your model (for example, if a dedicated graphics card is included). Any modifications or upgrades might change the configuration, port accessibility, and port functionality.
