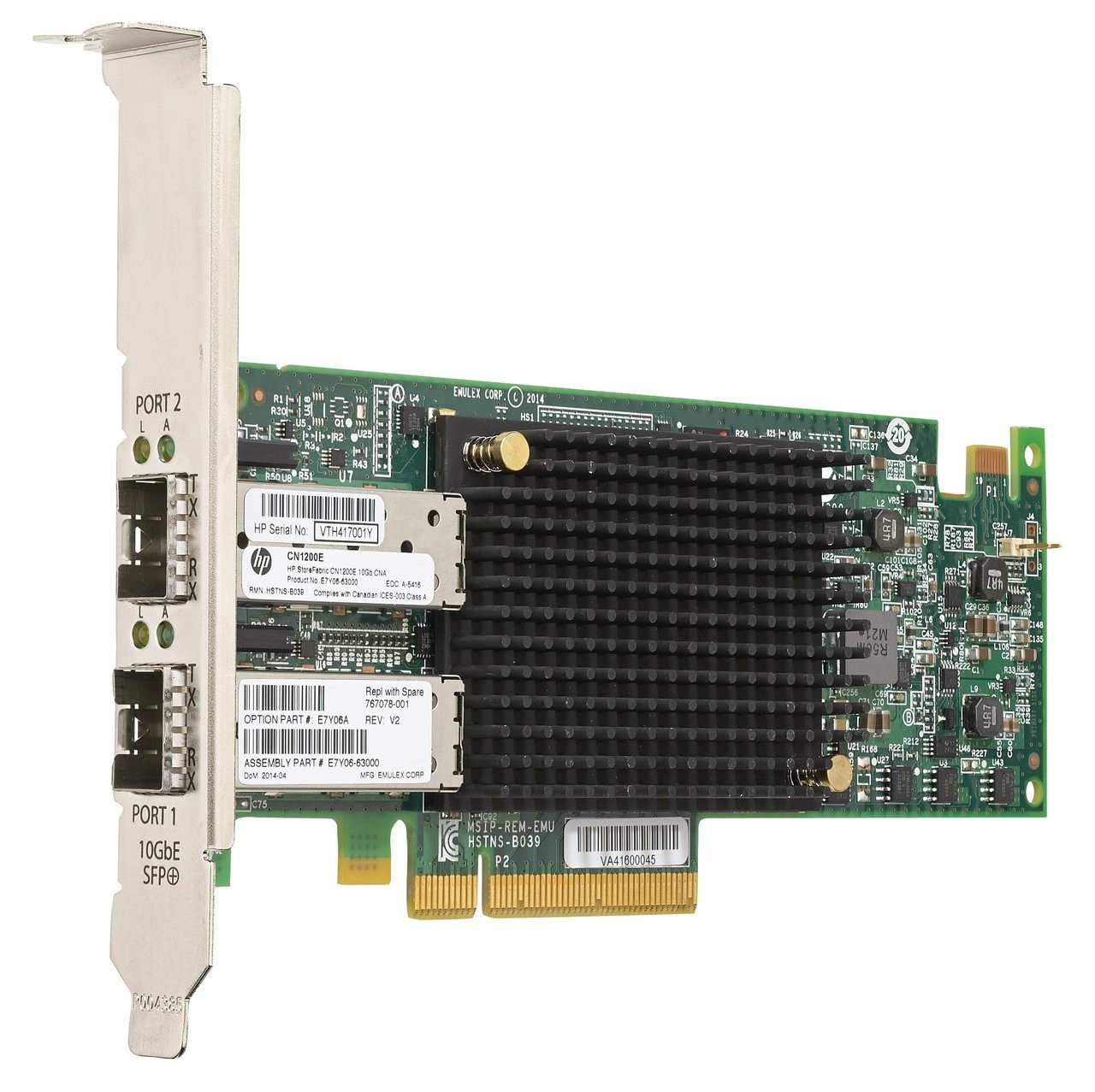

New, sealed, HP HPE StoreFabric CN1200E PCIe 10Gb Dual Port CNA E7Y06A 767078-001
Specifications
Brand: HPE
MPN: 767078-001
Option Part Number: E7Y06A
Spare Part Number: 767078-001
General
Device Type: Network adapter
Product Family: StoreFabric
Product Type: 10Gbit Ethernet Card
Form Factor: Plug-in card
Interface (Bus) Type: PCI Express
Networking
Connector: RJ-45 (Two)
Connectivity Technology: Wired
Wiring: CAT6A UTP or better twisted-pair
Cable Distance: Maximum distances for CAT6A unshielded cable are 30 meters (98 feet) and Maximum distances for CAT6A shielded (or better) are 100 meters (328 feet)
Number of Channels: Dual
Ports: 10Gb CEE x 2
Port Speed: 10GbE
Slot Type Supported: x8 PCIe 3.0 or 2.0
Type: Optical
PCIe Connector: PCIe x8 (Gen3)
Protocol Supported: FCoE, Ethernet, iSCSI
Data Link Protocol: Fibre Channel, FCoE, 10Gb CEE
Data Transfer Rate: 10 Gbps
Network / Transport Protocol: iSCSI
Features: Converged Enhanced Ethernet (CEE)
Media: CAT6A Cables, 10Gb SFP+ Ethernet Optical Modules (SR) or SFP+ direct attach active and passive copper cable
Compliance: IEEE802.3x, IEEE802.3ad, IEEE802.1p, IEEE802.1q, IEEE802.3az, IEEE802.3ae, IEEE802.3ap, IEEE802.1qau, P802.1Qaz(ETS), P802.1Qbb(PFC), P802.1Qaz(DCBX)
Expansion & Connectivity
Interfaces: 2 x 10Gb Ethernet / FCoE
Miscellaneous
Included Accessories: Low-profile bracket
Software / System Requirements
OS Required: Red Hat Linux, SuSe Linux, Microsoft Windows Server 2003, Microsoft Windows Server 2008
Environmental Parameters
Minimum Operating Temperature: 32º (0º C)
Maximum Operating Temperature: 113º F (45º C)
Minimum Storage Temperature: -40º F (-40º C)
Maximum Storage Temperature: 158º F (70º C)
Minimum Operating Humidity: 15% (relative, non-condensing)
Maximum Operating Humidity: 80% (relative, non-condensing)
Dimensions & Weight
Box Dimension(W x D x H): 24.0cm x 15.5cm x 4.2cm
Card Dimension(W x D x H): 18.2cm x 12.0cm x 2.18cm
Weight: 23.98 oz
Compatibility Information
Designed for
HPE ProLiant DL Series: DL360 (Gen10) DL380 (Gen10) DL385 (Gen10) DL560 (Gen10) DL580 (Gen10)
HPE ProLiant XL Series: XL170r (Gen10)
Please contact with us if you have any question or to know the compatibility of this with your current server or storage array.
