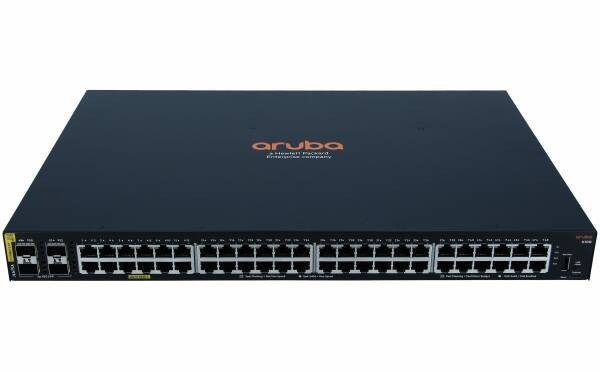

The Aruba CX 6100 Switch Series is a modern family of entry level access switches ideal for branch offices, mid-market enterprise, and SMB networks. Designed for reliable, simple, and secure access, the Aruba CX 6100 switches provide a convenient wired access solution for enterprise networks supporting IoT, mobile, and cloud applications.
DifferentiatorThe Aruba CX 6100 Switch Series delivers entry level, reliable, and convenient Layer 2 wired access connectivity ideal for branch offices, mid-market enterprise, and SMBs. This model has 48x 10/100/1000BASE-T and 4x 1G/10G SFP ports. 370W Class 4 PoE/PoE+ power.
Power consumptionMax Power (w/o PoE): 45WMax Power (w/ PoE): 480W
Input voltage100-127 VAC / 200-240 VAC
Ports48x ports 10/100/1000BASE-T ports4x 1G/10G SFP ports
Latency1 Gbps: 1.9 μSec , 10 Gbps: 1.8 μSec
Switching capacity176 Gbps
Throughput98.6 Mpps
Memory and processorDual Core ARM Cortex A9 @ 1016 Mhz4 GB DDR3, maximum, depending on model16 GB eMMC
PoE capability370W Class 4 PoE/PoE+
