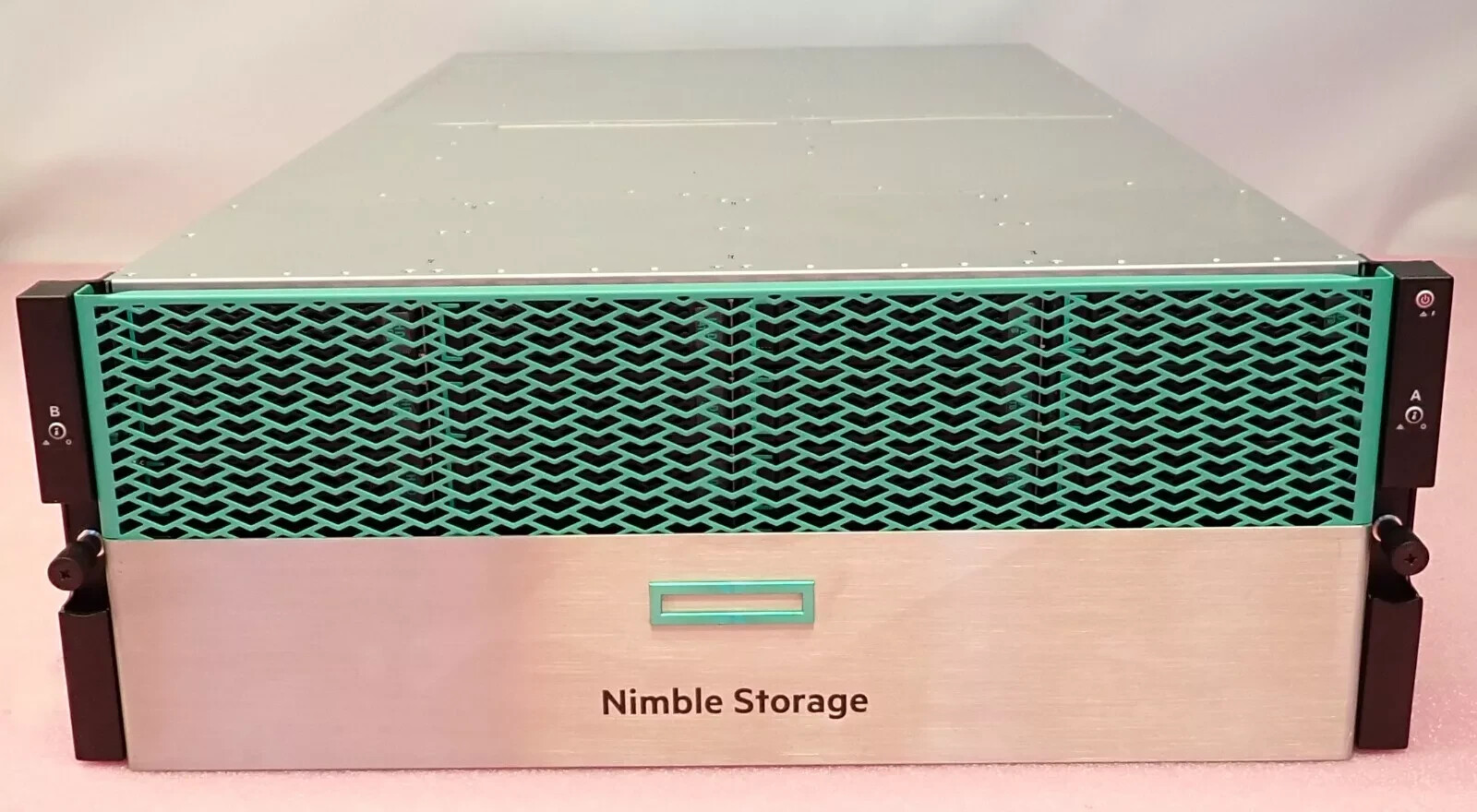

HPE Nimble Storage Adaptive Flash Array HF40 2x Controller 24-Bay 92.64TB Q8H39AModel No:NMBLA-0002-1200NMB SKU:HF40-4F-84T-OHPE SKU: Q8H39A
In Good ConditionIncludes Bezel
Supplied as hardware only as no login/password is known
Included:

• 1 xHP Nimble Storage Array 4U HF40 Q8H39A Adaptive Flash Array with:
• 24 x 3.5" SAS Bays with:
• 21 x 4TB 7.2K SAS 12Gb/s 4Kn 3.5" Hard Drive HDD With CaddyQ8F04A
• 3 x 3.5" Caddy Adapter (3.5" to Dual 2.5") Each With:
• 1 x 960GB 2.5" SATA 6Gb/s Solid State Drives SSDQ8F86B
• 1 x 1.92TB 2.5" SATA 6Gb/s Solid State Drives SSDQ8F87B
• 2 x Controller500-0257-001 each with:
• 2 x Intel Xeon Eight-Core Silver 4110 2.10GHz Processor With Heatsinks
• 16 x DDR4 Memory DIMM Slots with:
• 4 x Samsung 16GB PC4-2400T 1Rx4 DDR4 RAM Memory
• 1 x 8GB NN4-2133P-RZZZ-10 1Rx4 NVDIMM Memory with Cable & Super Capacitor
• 1 x Advantech 16GB M.2 SATA SSD Module - SQF-SM4U2-16G-9NB
• 1 x Riser 620-0009-001 with:
• 1 x EmulexLPE16002 Dual Port 16GbSFP+Fibre Channel HBA with:
• 2 x 16Gb SFP Transceiver Modules
• 1 x Riser 620-0008-001 with:
• 1 x Emulex LPE16002 Dual Port 16Gb SFP+ Fibre Channel HBA with:
• 2 x 16Gb SFP Transceiver Modules
• 1 x Riser 620-0028-001 with 2x M.2 SSD Slots & 1x USB
• 1 x Dual SAS Out Port Module 620-0007-002
• 1 x Card 620-0001-001
• 1 x Bridge Card 620-0005-001
• 2 x 3000W Power Supply to find cost effective flash storage for your primary, secondary, and backup/DR workloads?
  The HPE Nimble Storage Adaptive Flash Arrays are like having two flash arrays in one. The array is truly adaptive – designed for both primary and secondary flash workloads. It is a hybrid flash array for mixed, primary workloads where cost-efficient flash performance is important. It can also serve as a secondary flash array for backup and disaster recover (DR) while allowing you to put your backup data to work. The flash-enhanced architecture is combined with HPE InfoSight predictive analytics for fast, reliable access to data and 99.9999% guaranteed availability. Radically simple to deploy and use, the arrays are cloud-ready – providing data mobility to the cloud through HPE Cloud Volumes. Your storage investment made today will support you well into the future, thanks to our technology and business-model Type:Solid state / hard drive array
• Enclosure Type:Rack-mountable - Devices / Modules Qty: 27
• Supported Devices / Modules Qty:27
Storage

• HDD Array External Interface:iSCSI (10 GbE)
Storage Qty:2

Storage Controller (2nd)

• Installed Qty:2

Hard Drive

• Type:
• 21 x 4TB 7.2K SAS 12G 3.5" Hard Drive HDD
• 3 x 960GB 2.5" SATA 6Gb/s Solid State Drives SSD
• 3 x 1.92TB 2.5" SATA 6Gb/s Solid State Drives SSD

Expansion / Connectivity

• Expansion Bays:21 (total) / 0 (free) - 3.5" LFF ¦ 6 (total) / 0 (free) - 2.5" SFF
• Expansion Slots:6 (total) / 2 (free) x expansion slot
• Interfaces:4 x Ethernet 10Gb Standards:FCC Class A certified, UL, cUL, NOM, CCC, IEC 60950-1, IC Class A, WEEE, FCC Part 15 B Class A, BSMI Class A, KC, NOM-019-SCFI-1998, VCCI Class A, EAC, CITC, RCM, RoHS 2011/65/EU, BSMI CNS 13438(95), BIS, EN50581:2012, CoC, EN 55024:2010, EN 55022:2010, AS/NZS CISPR22:2009+A1:2010, CISPR 22:2008, CNS 14336-1:99, EN 55032:2012, LoA, ICES-003:2016 issue 6 Class A, VCCI V-3/2014.04 Class A, CISPR 32:2012, EN 60950-1:2005, TP TC 004/2011, TP TC 020/2011, CISPR 24:2010+A1:2015, EN Device:2 x internal power supply
• Max Supported Qty:2
• Voltage Required:AC 120/230 V - 50/60 Hz

Dimensions & Weight

• Width:17.3 in
• Depth:35 in
• Height:6.9 in
• Weight:143.3 lbs

Environmental Parameters

• Min Operating Temperature:50 °F
• Max Operating Temperature:95 °F
• Humidity Range Operating:8 - 90% (non-condensing)
