Intellinet 5 port Gigabit PoE Switch 561808 ✅❤️️✅❤️️ BRAND NEW SEALED
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

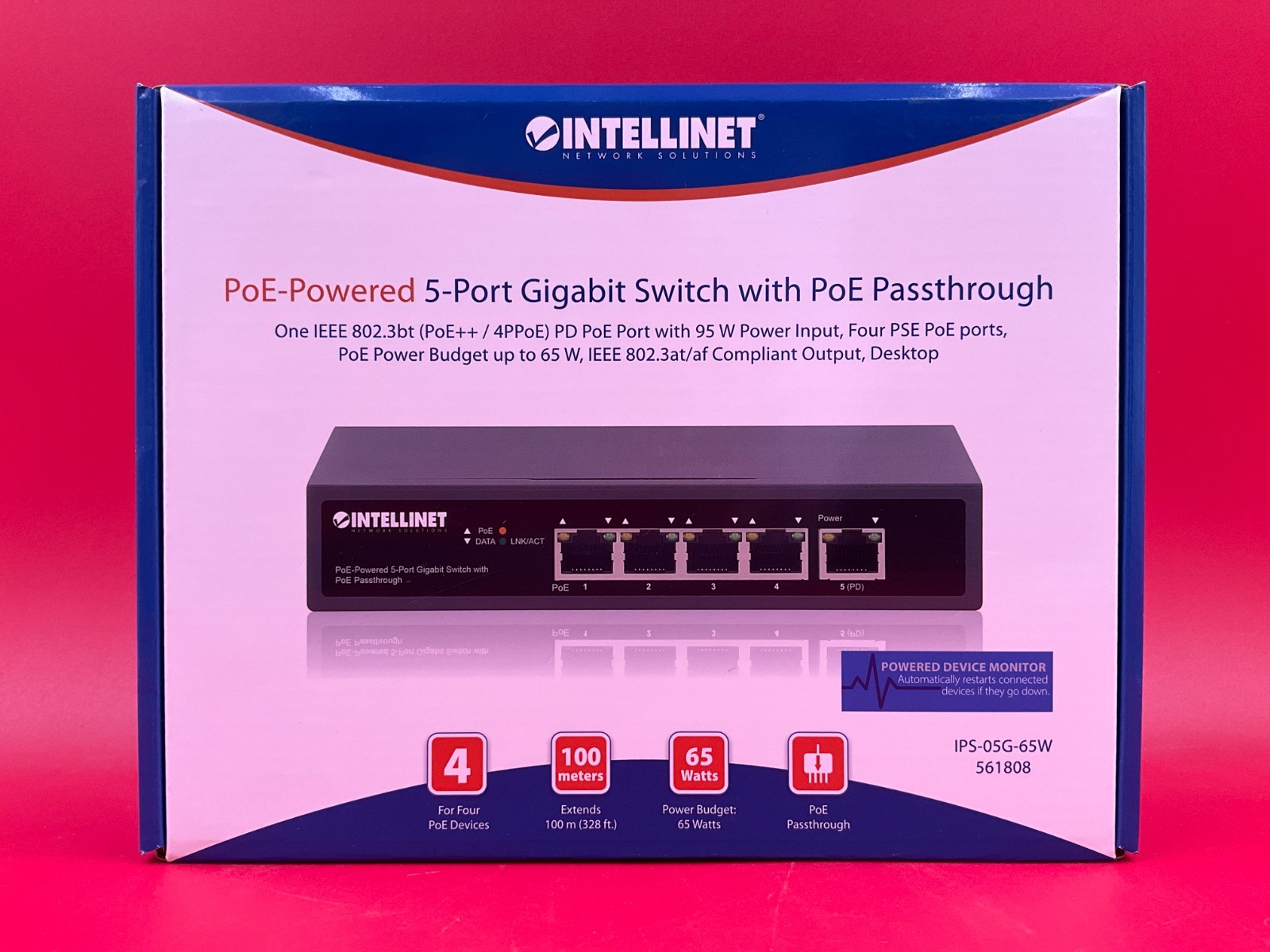

Intellinet 5 port Gigabit PoE Switch 561808 ✅❤️️✅❤️️ BRAND NEW SEALED
Price: US $59.99
Intellinet 5 port Gigabit PoE Switch 561808
BRAND NEW!
    Standards
  • IEEE 802.3 (10Base-T Ethernet)
  • IEEE 802.3ab (Twisted Pair Gigabit Ethernet)
  • IEEE 802.3af (Power over Ethernet 802.3at Type 1)
  • IEEE 802.3at (Power over Ethernet 802.3at Type 2)
  • IEEE 802.3bt (PoE++/4PPoE Power over Ethernet)
  • IEEE 802.3u (100Base-TX Fast Ethernet)
  • IEEE 802.3x (flow control, for full duplex mode)

    General
  • Media support:
    - 10Base-T Cat3, 4, 5 UTP/STP RJ45
    - 100Base-TX Cat5 UTP/STP RJ45
    - 1000Base-T Cat5e UTP/STP RJ45
  • Packet filter/forwarding rate:
    - 1,488,000 pps (1000 Mbps)
    - 148,800 pps (100 Mbps)
    - 14,880 pps (10 Mbps)
  • MAC address table: 2048 entries
  • Buffer memory: 1024 kB
  • Backplane speed: 10 Gbps
  • Switch architecture: store and forward
  • Certifications: FCC Class A, CE, RoHS, UKCA, NDAA

    LEDs
  • Power
  • Link/activity
  • PoE

    PoE Pinout
  • Pin 1: DC (-)
  • Pin 2: DC (-)
  • Pin 3: DC (+)
  • Pin 6: DC (+)

    Power
  • Included power adapter:
    - Input: 100.0 – 240.0 VAC, 50 – 60 Hz, 2.0 A
    - Output: DC, 54.5 V, 1.32 A
    - PoE Budget: 65.0 watts (maximum)
    - Power consumption: 72.0 watts (maximum)
  • Via PD port (port 5)
    - Input: IEEE802.3af/at/bt compliant
    - PoE Budget: 65.0 watts (maximum) with IEEE802.3bt input; 25.0 watts with IEEE802.3at input; 10.0 watts with IEEE802.3af input
    - Power consumption: 71.0 watts (maximum)

    Physical
  • Metal housing
  • Dimensions (L x W x H): 93 x 168 x 32 mm (3.66 x 6.61 x 1.26 in.)
  • Net weight: 400 g (0.88 lbs.)
  • Gross weight: 900 g (1.98 lbs.)
  • Operating temperature: 0 – 40°C (32 – 104°F)
  • Storage temperature: 0 – 70°C (32 – 158°F)
  • Operating humidity: 10 – 90% RH, non-condensing

    Package Contents
  • PoE-Powered 5-Port Gigabit Switch with PoE Passthrough
  • Power adapter
  • Power cable
  • Four rubber feet
  • Instructions
