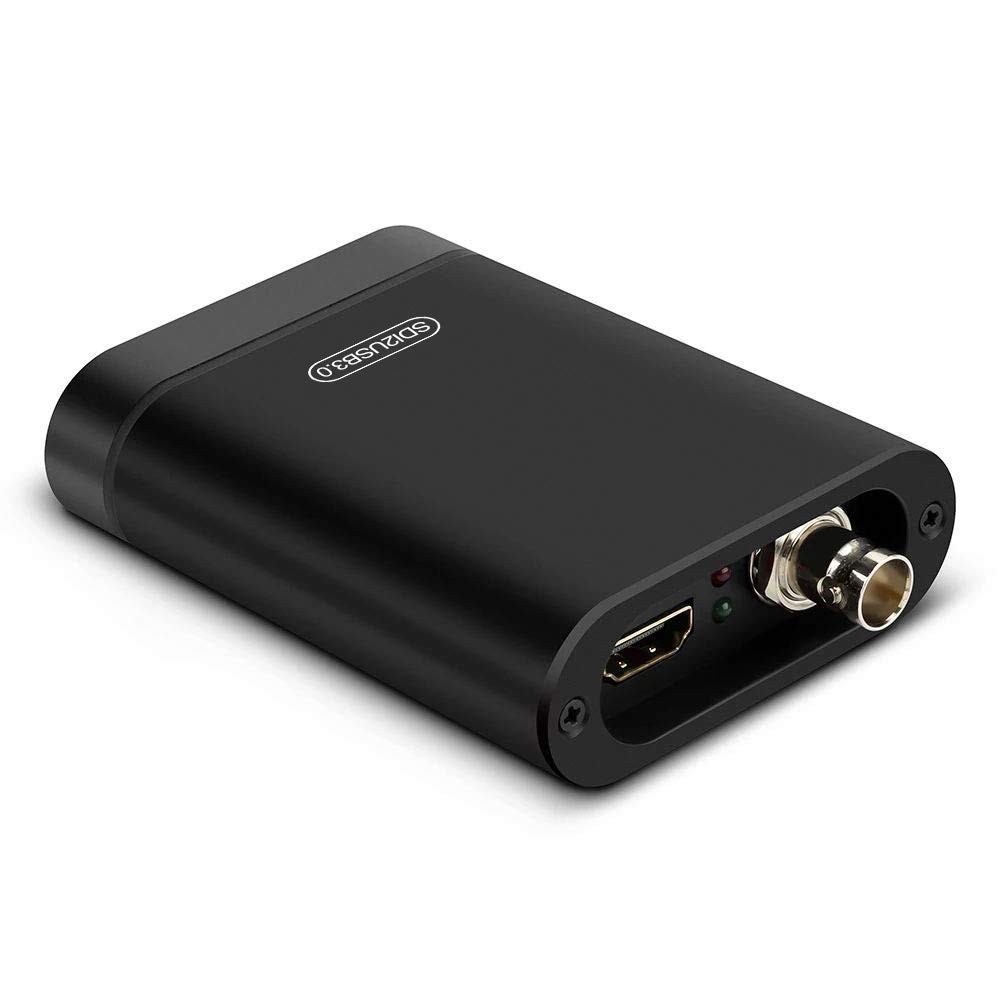

Avmatrix UC2018 HDMI and SDI to USB3.0 Video Capture Box
Features
Supports SDI/ HDMI capture to USB 3.0
Automatically detect the input video formats
Compatible with USB3.0 with transmission rate up to 300~350MB/s
Compatible with UVC video capture and YUV 4:2:2 video output
Input and output video signal up to 1080p60
Compatible with Windows, Linux, Mac OS X and with many different USB 3.0 chipsets Compatibles VLC, OBS, XSPLIT and AMCAP etc. PC capture software Connect multiple dongles to one machine USB power supply Specifications INTERFACE
Input interface : 1xSDI, 1xHDMI 1.4a
Output interface : 1xUSB3.0 (compatiable USB2.0),1xHDMI local loop out Audio input format : HDMI/SDI embedded audioInput format
FORMATS Input format :
HDMI 1.4a compliance, Support 1080P/60hz 8-bit,(RGB,YUV)
SD/HD/3G-SDI, SMPTE-259/274/296/372/424/425/292 compliance
HDMI sampling rate : 165MHz
USB3.0 output format : 1920x1080, 1920x960, 1680x1050, 1280x720, 1024x768, 960x540,
720x576, 720x540, 720x480, 640x480, 640x360
Frame rate : 25/29.97/30/50/59.94/60fps
Audio input format : 1xPCM stereo audio
Video & audio capture : UVC (USB video class) & UAC (USB audio class) standard
Output color space : YUY2
SOFTWARE
Supported OS : Windows 7/8/10, Linux (Kernel version 2.6.38 and above), OS X (10.8 and above)
Software compatibility :
OBS (Windows), Windows Media Encoder (Windows), Adobe Flash Media, Live Encoder (Windows, OS X), VLC (Windows, OS X, Linux), QuickTime, Broadcaster (OS X), QuickTime Player (OS X), Wirecast (Windows, OS X), Potplayer (Windows), etc. Compatible SDK : DirectShow (Windows), DirectSound (Windows)
GENERAL
Power consumption : 3W Operating temperature : 0~50oC
Storage temperature : 0~60oC
Relative humidity : 20~90% RH (no condensation)
Dimensions : 99.6x70x24
Weight : 114gSupports SDI/ HDMI capture to USB 3.0 Automatically detect the input video formats Compatible with USB3.0 with transmission rate up to 300~350MB/s
Compatible with UVC video capture and YUV 4:2:2 video output Input and output video signal up to 1080p60
Compatible with Windows, Linux, Mac OS X and with many different USB 3.0 chipsets Compatibles VLC, OBS, XSPLIT and AMCAP etc. PC capture software
Connect multiple dongles to one machine USB power supply
