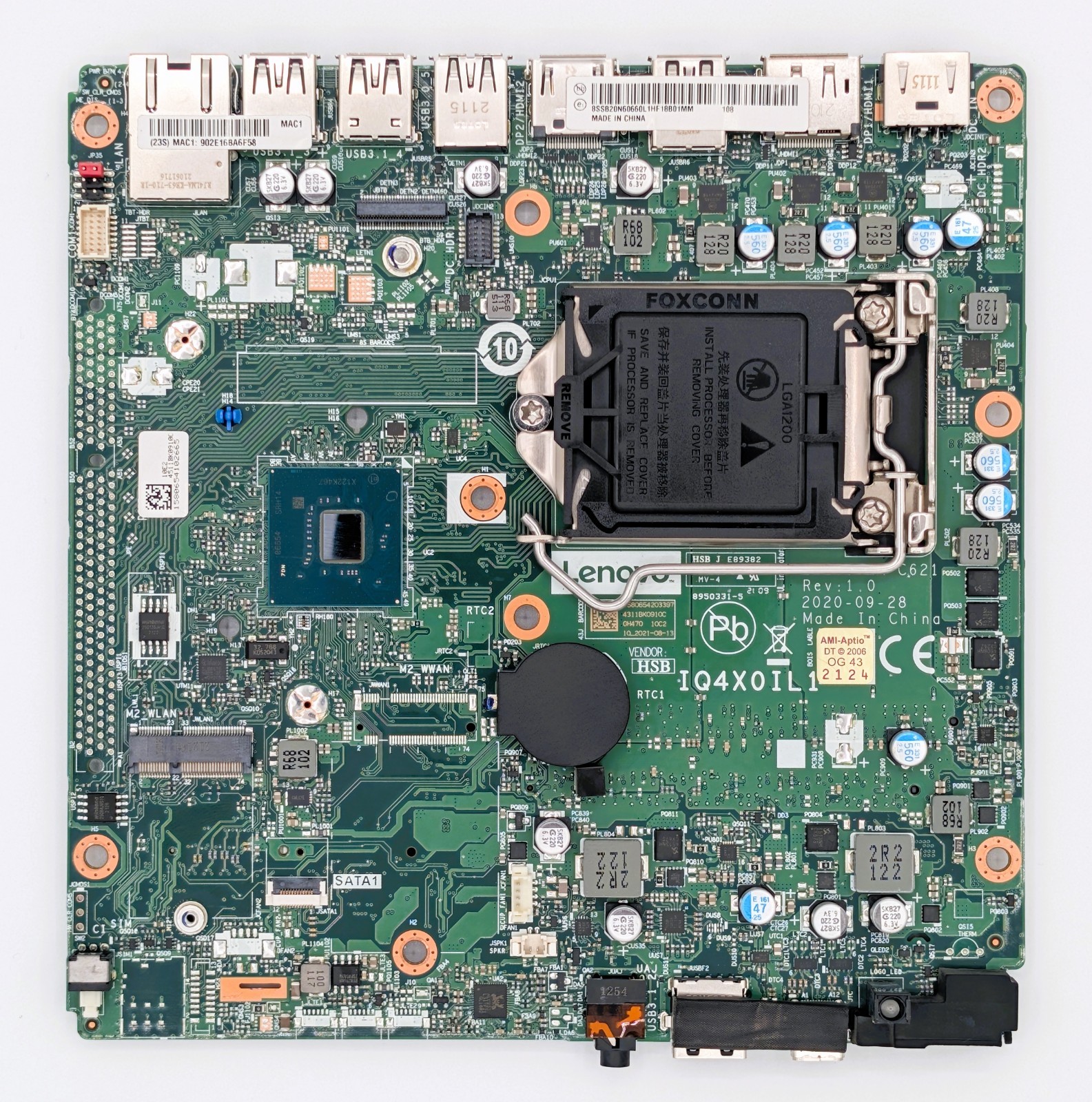

Genuine Lenovo ThinkCentre M70q/M70a H470 35W Motherboard 5B20U54379 — TestedDetailed Product SpecificationsProduct Identification Brand: Lenovo Product Type: Desktop System Board / Motherboard Primary Lenovo Part Number: 5B20U54379 Manufacturing Part Numbers: SBB0T16681, SPP0V36266 Original Board Description: BDPLANAR MB H470 35W WW Win DPK LI Chipset / Platform: Intel H470 Board / Schematic IDs: IQ4X0IL1, NM-C621 Form Factor: Lenovo Tiny / Small Form Factor desktop motherboard GPU Type: UMA (Unified Memory Architecture) / Intel processor-integrated graphics
Processor and Chipset CPU Socket: Intel LGA1200 Processor Support: Compatible 10th Generation Intel Core processors Processor Power Class: Designed for supported 35W TDP processor configurations Integrated Graphics: Supports Intel processor-based integrated graphics Chipset: Intel H470
The ThinkCentre M70q platform supports a broad range of Intel Celeron, Pentium Gold, and 10th Generation Intel Core processors. Supported processor examples include: - Intel Celeron G5900T — 2 cores / 2 threads, 3.2GHz, 2MB cache, Intel UHD Graphics 610
- Intel Celeron G5905T — 2 cores / 2 threads, 3.3GHz, 4MB cache, Intel UHD Graphics 610
- Intel Pentium Gold G6400T — 2 cores / 4 threads, 3.4GHz, 4MB cache, Intel UHD Graphics 610
- Intel Pentium Gold G6500T — 2 cores / 4 threads, 3.5GHz, 4MB cache, Intel UHD Graphics 630
- Intel Core i3-10100T — 4 cores / 8 threads, 3.0–3.8GHz, 6MB cache
- Intel Core i3-10300T — 4 cores / 8 threads, 3.0–3.9GHz, 8MB cache
- Intel Core i5-10400T — 6 cores / 12 threads, 2.0–3.6GHz, 12MB cache
- Intel Core i5-10500T — 6 cores / 12 threads, 2.3–3.8GHz, 12MB cache
- Intel Core i5-10600T — 6 cores / 12 threads, 2.4–4.0GHz, 12MB cache
- Intel Core i7-10700T — 8 cores / 16 threads, 2.0–4.5GHz, 16MB cache
- Intel Core i9-10900T — 10 cores / 20 threads, 1.9–4.6GHz, 20MB cache
Important: Processor compatibility is dependent on the specific M70q configuration and BIOS support. The board is designed around the M70q's low-power 35W TDP processor platform. Memory Memory Type: DDR4 SDRAM Memory Form Factor: DDR4 SODIMM Memory Slots: 2x DDR4 SO-DIMM Maximum Supported Memory: Up to 64GB, depending on system configuration Memory Configuration: Dual-channel capable Supported Memory Speed: DDR4-3200 Tested Memory Speed: DDR4-3200 memory tested and operating at 2666 MT/s
Storage Interfaces Video and Display Graphics: Integrated UMA / Intel processor graphics DisplayPort: 1x integrated rear DisplayPort HDMI: 1x integrated rear HDMI port Additional Display Options: Multiple optional display and expansion-port configurations may be available depending on the system configuration. Supported optional display configurations can include: - VGA
- 2nd DisplayPort
- 2nd HDMI
- USB-C with DisplayPort function
- Dual DisplayPort configuration
The M70q platform supports up to 3 independent displays, depending on the installed optional video-port configuration.
Ports and Connectors Rear USB 3.1 Gen 1: 2x High-Speed USB ports Rear USB 3.1 Gen 2: 2x High-Speed USB ports Front USB Type-C: 1x USB 3.1 Gen 1 Type-C port Front USB Charging: 1x USB 3.1 Gen 2 port with 2.1A charging support DC Power Input: 1x rear DC Power In connector Audio: 1x Global Headset / Microphone audio jack Ethernet: 1x integrated LAN / Ethernet port
Networking and Wireless Ethernet Controller: Intel I219-V Gigabit Ethernet Wired Networking: Gigabit Ethernet / LAN Wake-on-LAN: Supported Wireless Support: Compatible Intel Wi-Fi 6 wireless cards through an M.2 wireless card slot on the board Wireless Configuration: Supports Intel Wi-Fi 6 160MHz with Bluetooth, subject to the installed wireless card and system configuration
Audio Audio Codec: Realtek High Definition Audio Display Audio: Intel Display Audio Audio Connector: Global Headset / Microphone jack Supports and has connector forM70q Speaker: Single 1.5W speaker when configured as part of the complete system.
Security and Windows Licensing TPM: Integrated Trusted Platform Module 2.0 Windows DPK: Embedded Windows Digital Product Key in BIOS/firmware Activation: The embedded license information is intended for applicable Windows activation when installed in a compatible Lenovo system and connected to the internet.
Power Requirements The M70q platform was offered with multiple power-adapter configurations: - 65W AC adapter
- 90W AC adapter
- 135W AC efficiency: 89%
The appropriate adapter depends on the processor and system configuration. Compatible Lenovo Systems |
|
