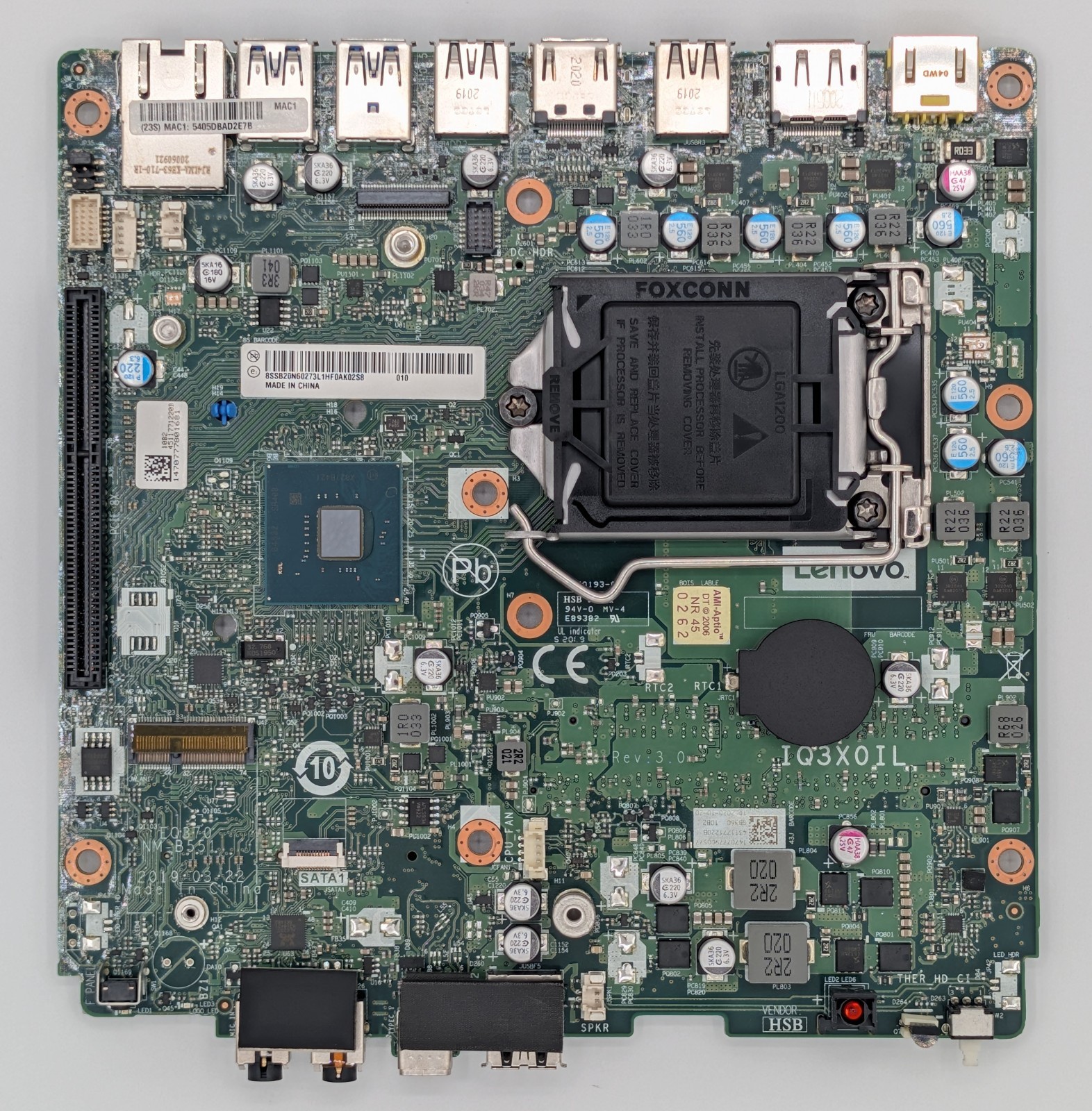

Lenovo ThinkCentre M720q / M920q Tiny Motherboard B360 LGA1151 5B20U53832 WINDPK For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Equivalent / Substitute Part Numbers: 01LM294, 5B21U13822
Board Model / PCB Identifier: IQ3X0IL / NM-B551
Chipset: Intel B360 Chipset
CPU Socket: LGA 1151 / Socket H4
Processor Compatibility
Supports compatible 8th and 9th Generation Intel processors
Compatible processor families include:
Intel Core i3
Intel Core i5
Intel Core i7
Intel Core i9
Intel Pentium
Intel Celeron
Designed for compatible low-power 35W TDP processors
Example compatible processor: Intel Core i5-8500T
Memory Support
2x DDR4 SO-DIMM memory slots
Supports dual-channel memory configuration
Maximum supported memory: Up to 32GB
Supported memory speeds:
1x M.2 2280 / 2242 slot
Supports NVMe PCIe 3.0 x4 SSDs
Supports Intel Optane Memory
1x SATA 6Gb/s header
Supports a compatible 2.5-inch SATA SSD or HDD
Expansion & Wireless Connectivity
1x PCIe 3.0 x8 low-profile riser slot
1x M.2 PCIe 3.0 x1 slot for Wi-Fi / Bluetooth module
Compatible with supported wireless modules, examples such as Intel AC-8265
Graphics & Audio
Supports integrated Intel UHD Graphics 630 with a compatible processor ( Processor not included )
Supports DirectX 12
Supports up to 3 independent displays
Integrated Realtek ALC233VB2 High Definition Audio codec
Networking
Integrated Intel Ethernet Connection I219-V Gigabit LAN
RJ-45 Gigabit Ethernet connectivity
Supports Wake-on-LAN
Front I/O Headers / Ports
1x USB-C 3.2 Gen 1 port – up to 5Gbps
1x USB 3.2 Gen 1 port – up to 5Gbps
Always On
Fast Charge capable
1x 3.5mm Microphone jack
1x 3.5mm Headset combo jack
Rear I/O Ports
1x DisplayPort 1.2
1x HDMI 1.4
1x Optional Video / Punch-Out Port
Supports configuration for VGA, DisplayPort, HDMI, or USB-C
2x USB 3.2 Gen 2 ports – up to 10Gbps
2x USB 3.2 Gen 1 ports – up to 5Gbps
1x RJ-45 Gigabit Ethernet port
1x 19V DC power input jack
Security & BIOS
Integrated Discrete TPM 2.0 security chip
Clean and unlocked BIOS
Guaranteed NO BIOS password
Windows License
Integrated Windows Digital Product Key (WIN DPK)
Windows 10 / Windows 11 Pro digital license key embedded in the BIOS
Compatible Lenovo ThinkCentre Models
Compatible with Lenovo ThinkCentre M720q Tiny Desktop systems, including the following machine types:
Example Machine Type Model (MTM): 10T8S2DD00Physical Design
Designed for Lenovo ThinkCentre Tiny Desktop systems
Compact Micro / Mini PC motherboard
Designed for the 1L Tiny chassis form factor
Power Requirements
19V DC external power input
Compatible with supported Lenovo Slim-Tip power adapters:
Certified Refurbished by manufacture Genuine Lenovo motherboard
You can use the link below for how to update Serial number and Machine Type and Model )
Reach out to us if you have any questions or concerns on how to update serial number or MTM.
Package Includes: Lenovo ThinkCentre M720q Tiny motherboard only, as pictured. No CPU, RAM, storage drive, power adapter, chassis, or additional accessories are included unless specifically shown in the listing photos.
Shipping & Returns
Shipping: Fast and secure shipping via [USPS Ground Advantage 2-5 Business Days]. Item will be packed in an anti-static bag, padded mailer and a box for protection.
Handling Time: [1] Business Day.
Returns: [30-Day] Returns accepted with Free shipping both ways
