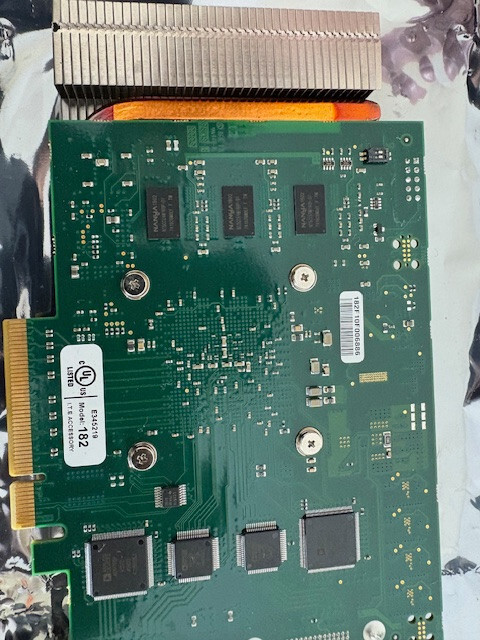

Lot of 3 Used Datapath ImageDP4+ Card
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Lot of 3 Used Datapath ImageDP4+ Card
Price: US $1000.00
This item is used, fully tested, and was removed from a working Express 2.1 interface with electronic support for x4, x8, and x16 lane widths

  • 4 DisplayPort 1.1a outputs, each delivering up to 359 MP/s at 24-bit color (e.g., 2560 × 1600 @ 60Hz)

  • Option to convert 4 outputs into 2 outputs, each supporting 3840 × 2160 @ 30Hz

  • HDCP supported when used with Datapath capture cards

  • DVI/HDMI compatibility via a range of DisplayPort cables and Format: PCI Express x16

  • Card Dimensions: 110mm x 177mm (including heatsink)

  • Maximum Output Resolution:

    • 4 x 2560 × 1600 @ 60Hz (max 359 MP/s), or

    • 2 x 3840 × 2160 @ 30Hz

  • Color Depth: Up to 8 bits per color component

  • Maximum Cards per System: Up to 13 cards (total of 52 display outputs)

  • Graphics Memory: 2GB total

  • Power Requirements:

    • +3.3V: 0.25A (plus up to 1.8A when powering four channels of DPextend + DPadapt)

    • +12V: 1.2A

  • Maximum Power Consumption: 15W

  • Operating Temperature: 0°C to 35°C (32°F to 95°F)

  • Storage Temperature: -20°C to 70°C (-4°F to 158°F)

  • Relative Humidity: 5% to 90% (non-condensing)

  • MTBF (Mean Time Between Failures): Over 180,000 multi-screen display driver designed for Windows 10 (64-bit). This driver enables the operating system to treat multiple connected displays as one large unified desktop, providing seamless multi-screen functionality.
