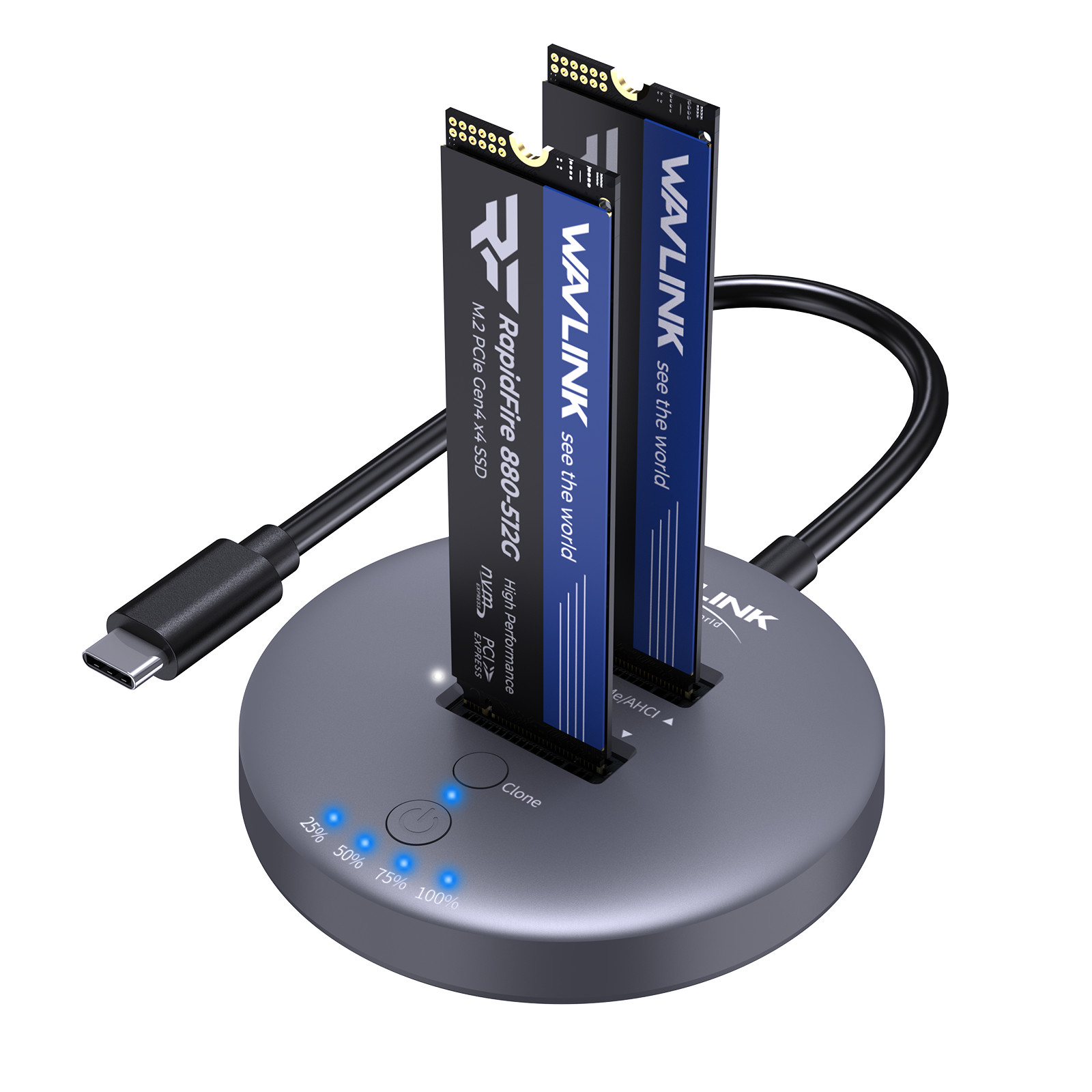

WAVLINK 10Gbps Dual Bay USB-C to M.2 NVMe SSD Docking Station ---- Read/Write/Offline Clone
RapidFire S2, your ultimate data companion for lightning-fast performance and seamless data management.
With a high-speed 10Gbps port and the UASP function, this M.2 SSD cloner ensures swift and efficient file transfers.
The one-click cloning simplifies data backup and migration processes, providing convenience at your fingertips.
Supporting TRIM and S.M.A.R.T., RapidFire S2 optimizes SSD performance and enhances reliability.
Elevate your data experience with RapidFire S2 - the perfect blend of speed, functionality, and convenience.

Widely Compatible with
SSDs: M.2 B-Key & B+M Key PCIe SSDs in 22110/2280/2260/2242/2230 sizes; Please note that the enclosure does not support AHCI SATA SSDs;
Systems: Windows, Mac OS, Chrome OS, Linux, iPad OS, Android, iOS, Harmony OS;
Host Devices: PCs, laptops, pads, phones(OTG), smart TVs, smart routers, PS5, etc. (Performance will be limited
if the standard of the host USB port is lower than USB 3.2 Gen 2)

Driver- & Tool-Free Use
Plug and play, without the hassle of installing any drivers. Just connect to your host device and start using it right away.
The direct plug-in design eliminates the need for additional tools - you can easily install the SSD with just one hand.

Great Extended Capacity
The USB-C M.2 enclosure enables simultaneous reading and writing of dual SSDs, offering a combined capacity of 2x8TB.
Whether you're looking to transfer extensive office data, store photos and videos, or play UHD games smoothly,
the RapidFire S2 is tailored to fulfill your diverse requirements.

USB-C to A Adapter Included
The bundled USB-C to A adapter enhances the hard drive cloner's versatility,
enabling it to be utilized with both USB-C and USB-A devices.

Easy to Carry Around
The compact and lightweight design of the dual NVMe enclosure makes it especially portable,
fitting snugly into pockets, handbags, or briefcases, ideal for on-the-go usage.

360° Heat Dissipation
The direct plug-in design facilitates the discharge of heat generated by SSDs during operation.
Thermal holes located at the bottom further ensure efficient cooling for optimal performance.

Anti-Slip Pad
The ring-shaped silicone anti-slip pad ensures the stability, effectively preventing movement or slippage during use,
which safeguards against potential data loss, providing a secure and reliable user experience.

Steps to Offline Clone
1.Put the source SSD and target SSD in their respective slots.
2.Plug in the power supply and turn on the power.
3.Hold down the clone button until all clone indicators start flashing. Then press it again to start WL-Rapid Fire S2
2.LED: 1xPower LED(blue); 2xSSD LED(white); 4xClone LED(blue)
3.Unit Size: Length: 24cm/9.5in
Power Adapter Cable Length: 100cm/39.4in
5.Unit Weight: 98g/3.5oz
6.Housing Material: ABS

Features
- One USB-C interface transfers speed up to 10Gbps, and compatible with USB 3.2/3.1/3.0/2.0 computers.
- Dual NVMe M.2 slot, source bay also supports AHCI SSD with AHCI to NVMe adapter(not included).
- One-button offline cloning simplifies the data copying process.
- Plug and play, Driver-free.
- Supports OTG function.
- Supports 2230/2242/2260/2280/22110 SSD.

In the Box
- 1 x USB-C Dual NVMe M.2 SSD Docking Station
- 1 x Power Adapter
- 1 x USB-A Adapter
- 1 x Quick Start Guide

Warm Tips:
- Please note that the enclosure does not support AHCI SATA SSDs.
- Performance will be limited if the standard of the host USB port is lower than USB 3.2 Gen 2.
- The NVMe/SATA SSD is not included in the package.
- Before using the USB-A adapter, connect it to the dock to check which side supports 10Gbps data transfer.
- If the SSD is brand-new and unformatted, please perform partition installation so that the computer can read the data normally.
If the SSD is formatted and has stored data, you have no need to perform partition installation because the computer can read the data normally.
- Notes for offline cloning:
(1)Capacity requirements: source disk ＜ target disk.
(2)Please connect the power supply but DO NOT connect the host while cloning.
(3)Do not touch the SSD during operation and be cautious of its heated surface.
(4)Cloning duration varies based on the SSD size (not data size).
- Notes for data security:
(1)Before removing the SSD, perform a safe removal operation to prevent data loss and hard disk damage.
(2)Back up all crucial data before the offline cloning.
(3)Avoid forcibly disconnecting the device during data cloning to prevent data loss and hard disk /2260/2280

WAVLINK M.2 Dual Bay NVMe Enclosure 40Gbps USB4 (40 Gbps) to NVME M-Key/(B+M) Key Solid State
Drive External Enclosure Support UASP Trim for 2230/2242 /2260/2280 NVME SSDs and Offline Clone

WAVLINK USB4 PCIe NVMe Dual SSDs Enclosure-Speedy USB4 Data Transmission Dupulicator!
The RapidFire U4D features two M.2 SSD slots for swift computer storage expansion, meeting growing capacity demands.
It offers easy-to-use, highly effective offline cloning, OTG functionality for mobile phone data access, and a blazing-fast
40Gbps USB4 interface ensuring speedy, stable transfers. The read speed can be up to impressive 3300MB/s,
and the write speed can be 3000Mb/s. A protective aluminum case safeguards internal SSDs,
while efficient heat dissipation maintains optimal temperatures for extended hard drive life.

One-Click Offline Clone
Featuring offline clone function, this enclosure can achieve seamless data migration and system upgrade,
freeing you from the hassle of system and software reinstalltion.

Lightning-Fast Data Transfer
The enclosure uses USB4 technology, providing speedy 40Gbps data transfer, transmitting files in seconds.
The read speed can achieve remarkable 3300MB/s, and the write speed reaches to impressive 3000MB/s.

8TB/16TB Capacity for Storage
This PCIe NVMe enclosure supports 2 slots, up to 8TB per drive or 16TB in Raid 0,
an ideal choice for quick storage expansion and fast transfer.

360° All-Round Heat Dissipation
A powerful cooling system is required during device operation. RapidFire U4D features heat dissipation airholes,
built-in fan, and aluminum-alloy housing, adopting a combination of measures to keep components safe and effective.

Universal Compatibility
Offering broad compatibility, this PCIe NVMe SSD enclosure is designed for 2230/2242/2260/2280-sized M-key and M&B key
connector NVMe SSDs. It's also plug and play, supporting most devices on the market, like MacBook Pro/Air, iPad Pro,
and Dell XPS. Some common systems like Windows, macOS, iOS, and Android are also applicable to this device.

Professional ASM2464PDX Chip
The ASM2464PDX chip enables high-speed USB4 data transfer. With its firmware, the chip also handles S.M.A.R.T.
queries and TRIM commands between your computer and the connected SSD. This ensures these key drive management functions
work properly in USB4 enclosures, maintaining drive health and performance as if the drive were plugged directly in.

Lightweight and Portable Design
This enclosure is 1.6 x 5.0 x 1.7 inches in size, and 176g in weight. Compared with other devices, its convenient form factor
makes it effortless to carry, offering reliable high-speed storage wherever you work.

Phone OTG Supported, User-Friendly Function
With phone OTG supported, this SSD enclosure provides a super-speed, large, and portable external storage
solution for your phone. This function largely breaks the storage limit of the phone and significantly improves the effectiveness of data transfer.

Warm Tips
- When using the offline clone function, the source and target SSD should be plugged into corresponding slots respectively.
- The capacity of the target SSD must be larger than or equal to that of the source SSD.
- During offline clone, the target SSD will be formatted. Please backup your important files before cloning.
- About the offline clone, for Windows users, connect the enclosure with two SSDs to the computer. One disk partition
will be displayed, while the other remains offline. To read both SSDs simultaneously,
please set the offine drive to online in "Disk Management".
- About the offline clone, for Mac users, connect the enclosure with two SSDs to the computer. One disk will be displayed,
while the other remains offine. To read both SSDs simultaneously, please mount the offine drive in "Disk Utility".

In the Box
- 1 x USB4 PCIe NVMe Dual SSDs Enclosure
- 1 x USB-C to USB-C 40 Gbps Data Transmission Cable
- 1 x USB-C to USB-C PD Charge Cable
- 2 x Thumb Screw
- 1 x PD Power Adapter
- 1 x Quick Start Guide

System Requirements
- Microsoft Windows & Apple Mac OS
- Thunderbolt5/4/3,USB4/3.2/2.0 computers
- Only compatible with M.2 M-Key and M&B-Key connector

Specification
Model: RapidFire U4D
Size: 1.6 x 5.0 x 1.7 inch
Weight: 176g
Packing List: 1 x USB4 PCIe NVMe Dual SSDs Enclosure, 1 x USB-C to USB-C 40Gbps Data Transmission Cable,
1 x USB-C to USB-C PD Charge Cable, 2 x Thumb Screw, 1 x PD Power Adapter, 1 x Quick Start Guide
