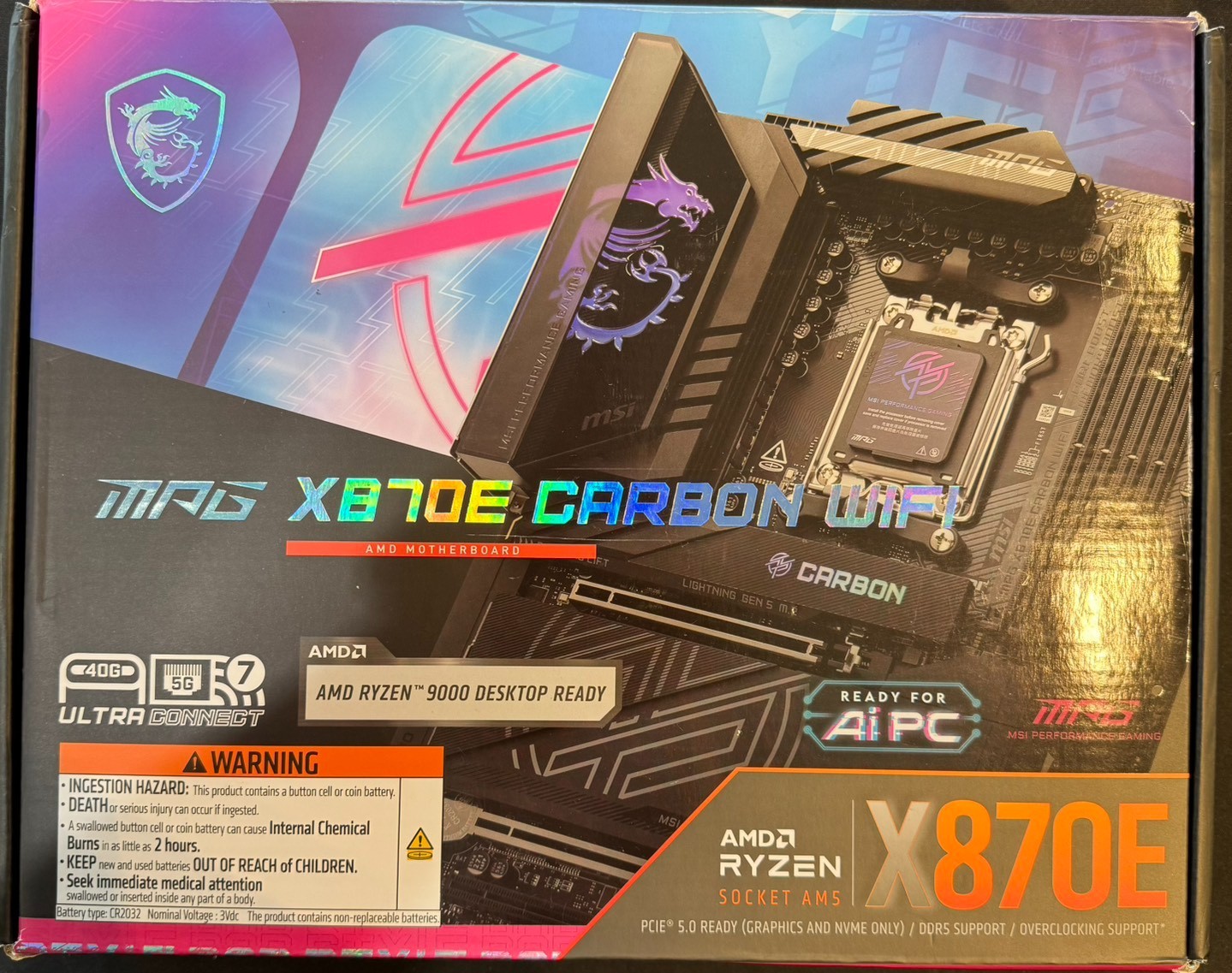

The MPG X870E CARBON WIFI is a gaming oriented ATX motherboard with an 18 Duet Rail Power System, constructed around the latest AMD X870E chipset which supports AMD Ryzen 9000 / 8000 / 7000 series desktop processors, featuring PCIe 5.0, 5G LAN, Wi-Fi 7, DDR5 and premium Frozr design that delivers both performance and style.

The MPG X870E CARBON WIFI motherboard supports AMD Ryzen 9000 / 8000 / 7000 Series processors.

• With exclusive Core Boost technology and EZ OC Tuning functions, the MPG X870E CARBON WIFI is able to sustain heavy CPU power loads to support system-demanding game settings:
  Frozr Design

  Frozr Guard:Extended Heatsink design, Heat-pipe, 7W/mK MOSFET thermal pads, extra choke thermal pads and EZ M.2 Shield Frozr II for improved thermal dissipation.

  Frozr Sync:Connect and synchronize cooling with strategically placed pin-headers - including CPU fan header (2A), Combo fan (3A, supports both pump fan and system fan) and system fans.

  Frozr Control:Manage speeds and temperature for all fans of your system in MSI Center with Cooling Wizard and Frozr AI Cooling.

  4 x DDR5 Dual Channel (8400+ MT/s OC)*

  Memory Boost:A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.

  High-Efficiency Mode:Enabling High-Efficiency-Mode in the MSI BIOS increases memory bandwidth and reduces latency. Four different modes allow users to find out the optimal configuration based on the quality of their memory modules.

  EXPO Profilesin the MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.

  * 1DPC 1R Max. overclocking frequency 8400+ MT/s, supports AMD EXPO.

  Fortified PCIe 5.0 x16 Slot

  The MSI PCI Express Steel Armor II slot is reinforced with additional solder points on the motherboard, supporting 21% more graphics card weight compared to 1st Gen Steel Armor.

  * Supports x16x0x4 / x8x8x4

  ** MSI Surface Mount Technology (SMT) solder welding improves signal clarity.

  Gen5 M.2 Connector

  The MPG X870E CARBON WIFI motherboard features MSI's M.2 slots:

  EZ DIY

  The DIY Friendly designs optimize the assemble process and experience.

  EZ M.2 Shield Frozr II:MSI patented Shield Frozr cover features a tool-free design so users don't have to worry about lost screws or overtightening.

  EZ M.2 Clip II:Install or remove the SSD with a simple push of the latch, without using any screws.

  EZ PCIe Release:With just one press of a button, users can easily install or remove the graphics card with one hand.

  EZ Antenna:MSI's latest Wi-Fi antenna not only boasts a beautiful appearance but also features a magnetic design, making it easier to adjust the antenna's placement.

  Smart Button:By simply pressing the Smart Button, users can reset the system or turn Mystic Light on/off without entering the BIOS.

  Ultra Connect

  5G LAN + 2.5G LAN:A Realtek 5Gbps LAN & Realtek 2.5Gbps LAN controller delivers a premium network gaming experience.

  Wi-Fi 7:Features the full-speed Wi-Fi 7 solution (ultra-low latency, high-bandwidth) & Bluetooth 5.4 technology.

  USB4 Type-C:Connect to devices and transfer files at high bandwidth rates: 40Gbps, with 8K display support.
