Details :
Chemical of high concern : None
RAID supported : Yes
Processor compatibility : Intel Xeon E Series
Ports : USB 3.0
Use case scenario : Passionate about overclocking, gaming, audio and video, office equipment, and video production.
Onboard and Header Connectors : 24-pin main power connector
Rear I/O ports : 1x RJ45, PS/2
USB Type Support : USB 2.0, USB 3.0
embedded LAN : 1x RJ45
Audio Channels : 5.1
Supports M.2 SSD : 2242,2280
Number of M.2 : 2
Number of SATA ports : 4
Storage Interface Type : SATA, M.2 (NVMe), M.2 (SATA)
Number of PCIs : 2
Number of PCIe x4 : 0
Number of PCIe x8 slots : 0
Number of PCIe x16 slots : 1
PCI-E standards : PCIe 3.0
Number of Housing Units (For the Record) : 4
Memory Support Type : DDR4
Memory channel : Double
Pack : Yes
Maximum RAM capacity : 128 GB
Form factor : Micro-ATX
Chipset Manufacturer : Intel
Battery included : No
With UTC : No
Chipset : c612
Application : Desk
Female Plug Type : LGA 2011-3
Special features : Cooling Armor
Noticed :
ALL RAM modules must be installed in the priority slot (grey slot).
The package does not include CR2032 batteries.
Warning : A 2032 battery must be installed to start the computer; otherwise, it cannot be started.
If inserted in the wrong location, it may cause your computer to not to start.

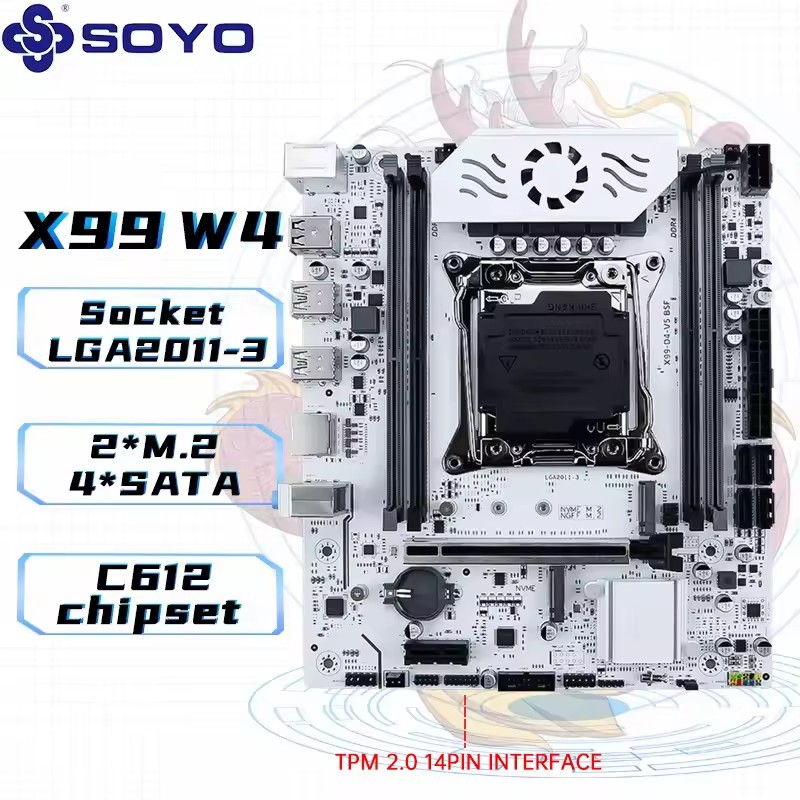

Product Specifications :
Supports TPM2.0
Chipset : Intel C612
CPU : Intel Xeon E5 LGA2011-V3 socket processors
Supported models : E5-2603V3, 2666V3, 2673V3, 2680V3, 2678V3, 2696V3, 2684V4, 2696V4, etc.
Memory : 4 x DDR4 DIMM slots
Supports 2133/2400 MHz (Max), up to 128 GB (32 GB x 4)
- The grey areas indicate the primary channels
Storage :
2 x M.2 slots: - **Top slot**: NVMe protocol (PCIe 3.0 x4/SATA3.0)
Lower slot : NVMe protocol (PCIe 3.0 x4)
- 4 x SATA3.0 interfaces.
TPM :
- 1 x 14-pin header (compatible with the 14-pin MSI/TPM 2.0 module)
Network :
- 1 x RJ45 port
- LAN Chip : Realtek RTL8111H Gigabit Ethernet
PS/2 Ports :
- 1 x PS/2 keyboard port
- 1 x PS/2 mouse port
Audio :
- Rear I/O: 1 x Line Out, 1 x Microphone Input, 1 x Line Input
- Internal header : 1 x Front audio header
- Audio chip : Realtek ALC897 HD Audio
USB Ports :
- Rear I/O: 2 x USB 2.0, 4 x USB 3.0
- Internal headers :
- 1 x USB 2.0 header (2-port expansion)
- 1 x USB 3.0 header (2-port expansion)
PCIe Windows :
PCIe1 : PCIe x16 3.0 slot (for CPU)
PCIe2 : PCIe x1 2.0 slot (from PCH)
Functional Headers :
- 1 x FPANEL (front panel)
- 1 x 4-pin CPU fan
- 1 three-pin system fan
- 1 x JBAT (clear CMOS)
- 1 x JLPC (LPC debugging)
- 1 x SPEAK (system speaker)
Power Input :
- 24-pin ATX connectors + 8-pin EPS connectors.
Dimensions :
- 220 x 190 mm (4-layer PCB).
