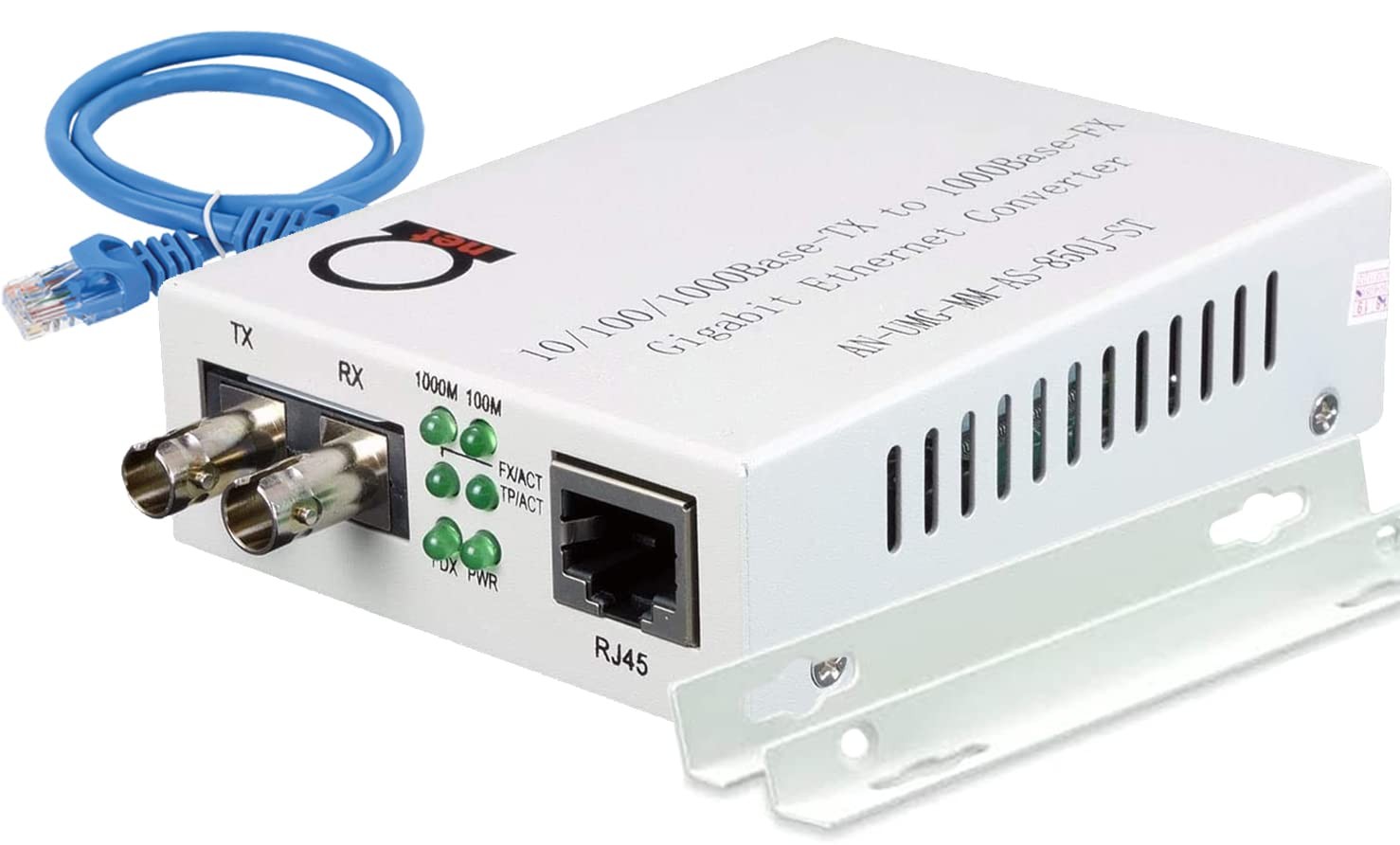

Extend your Gigabit or Fast Ethernet Network Over Multi Mode Fiber Up to 550 m - 0.34 miles - (using 850 nm Wavelength ST connector fiber optical module is already pre-built on board) With Ease

AN-UMG-MM-AS-850J-ST Will Automatically Detect 10 Mbit/s or 100 Mbit/s Fast Ethernet or 1000 Mbit/s Gigabit port - You just need plug in the cables and it will work right away!

Powering it up? Easy, it will come with AC power adapter in set, just plug it!

All These Important Features Are All Supported:

• Compliant with IEEE 1000Base-T and 1000Base-SX
• One 10/100/1000Base-T RJ-45 port autosensing featured
• One 1000Base-SX Multi Mode Dual Fiber type Port with ST connector - up to 550 m (0.34 miles) distance
• Status LED indicators for Power, Link/Activity, Full-Duplex, and Speed
• Standards: IEEE802.3z/ab 100/1000/1000Base-T 1000Base-SX
• Power supply: 100 to 240VAC 50 to 60Hz
• Dimensions: 70.5mm - 2.77in - (L) X 94mm – 3.7in (W) X 26.5mm – 1.04in (H)
• Environment: Relative humidity; 5% to 90%
• Operating temperature: 0 to 70 degree celsius
• CE, FCC, ROHS, LVD certified
• Supports Jumbo Ethernet frames up to 9000 bytes (if needed, configurable by dip switches)
• Supports LLF feature - Link Loss Feature - (if needed, configurable by dip switches)

Media converter will extend Your LAN network with any standard Ethernet interface to distances with 550 nm (0.34 miles) or less - you no need to use attenuator also for significantly less distances than 550 nm (0.34 miles) as well.

Setup of these units are really easy as the 3 steps shown in picture gallery, and all default settings will work for all of your cases, but for sophisticated users we had created some more customized settings available via dip switches on unit's back panel.

It's always good to have versatile and adaptive unit to all Your cases!


MULTIMODE ST, 550 m (1,804 ft) OVER 850nm FIBER: converts Gigabit Ethernet to multimode ST fiber and back. The ST fiber module is built into the unit and factory-aligned - nothing to fit, match or configure.
WORKS ON OM1 THROUGH OM5: links over 62.5/125 OM1 and over 50/125 OM2, OM3, OM4 and OM5 - OM4 and OM5 are backward compatible at 850nm, so newer fiber works too and you do not need to match a specific grade. Reach does depend on grade: the full 550 m applies to OM2 and better, while OM1 (62.5/125) carries Gigabit a shorter distance.
AUTO-SENSING 10/100/1000 COPPER: the RJ-45 port negotiates speed and duplex automatically, so it links to whatever switch, router, NAS, PC or IP camera you connect. Jumbo frame support up to 9000 bytes for full throughput on file and backup traffic.
PLUG AND PLAY, WITH ROOM TO ADJUST: it works out of the box - connect fiber and RJ-45 and the link comes up, no software, no drivers, nothing to configure. In the rare case you want more control, four DIP switches let you turn Link Loss Forwarding on or off, enable broadcast storm control, or drop the fiber port to 100Base-FX for older Fast Ethernet gear.
BUY TWO FOR A FIBER RUN: use ONE if the far end already has a multimode ST fiber port on a switch. Use TWO, one at each end, to join two copper devices over a fiber run. Ships with a 1m Cat5e patch cord so the copper side is ready out of the box.
MULTIMODE ONLY - CHECK YOUR FIBER: the fiber side is 850nm multimode with a built-in ST connector. It will NOT link over single-mode fiber or with a different connector type - if your run is single-mode, pick the matching model instead.
BUILT FOR THE JOB: fanless with no moving parts, desktop or wall mount using the included ears, standard AC power. Works with any IEEE 802.3 switch, router or NIC.
