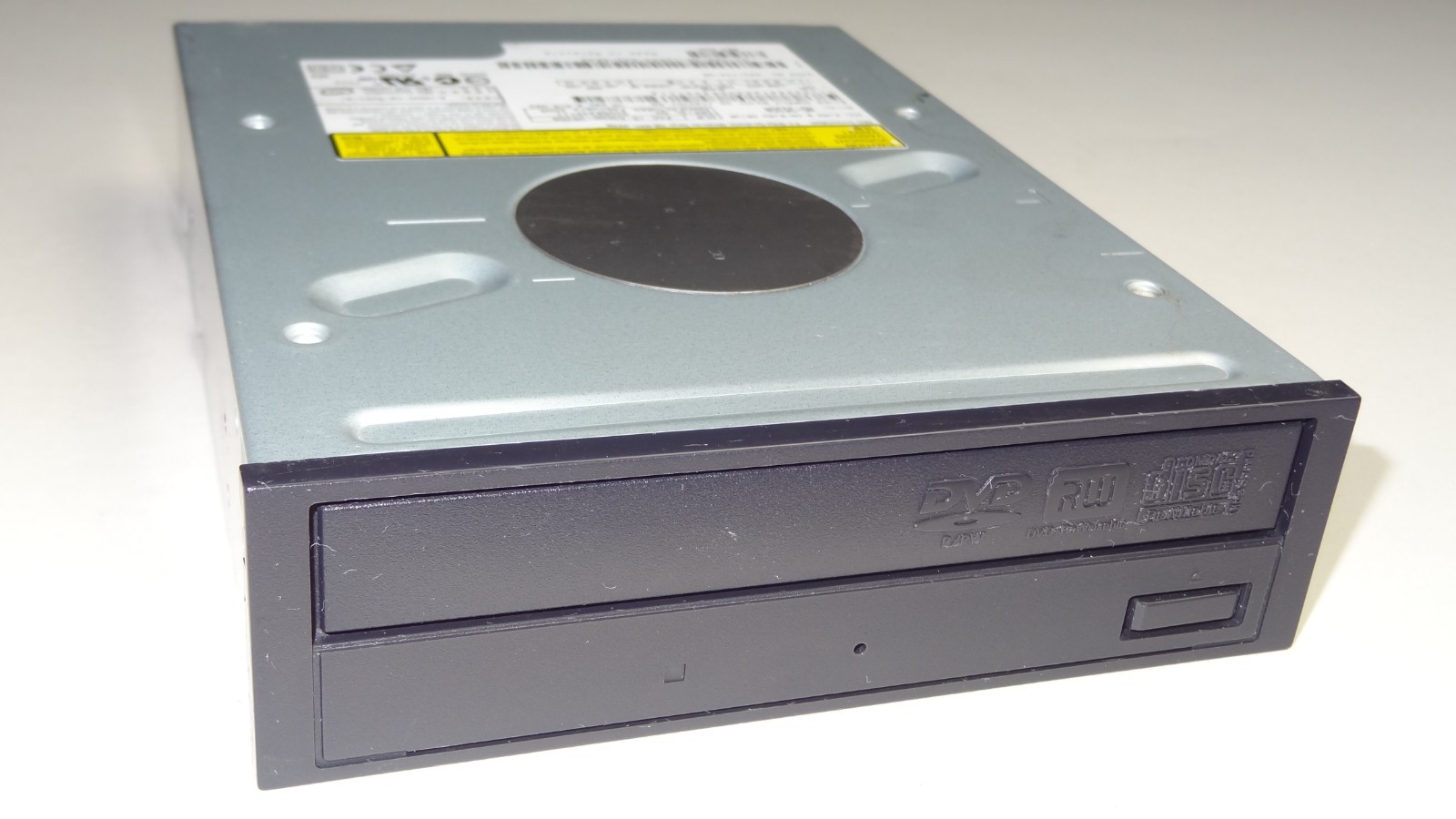

The NEC ND-3530A is an internal IDE/ATAPI DVD±RW burner and CD-RW drive. It can read and write a wide range of CD and DVD formats, including dual-layer DVD+R DL. It was introduced in the early 2005 era and was popular for its reliable 16× DVD write and 48× CD write performance for its time.📀 Media Support & Speeds🔧 DVD Burning (Write) Speeds

• DVD+R: Up to 16× CAV

• DVD-R: Up to 16× CAV

• DVD+RW: Up to 8× Z-CLV

• DVD-RW: Up to 6× Z-CLV

• DVD+R DL (Dual Layer): Up to 6× Z-CLV

• DVD-R DL: Up to 4× CLV

🔍 DVD & CD Reading Speeds

• DVD-ROM (Single Layer): Up to 16× CAV

• DVD-ROM (Dual Layer): ~12× max

• DVD±RW / DVD±R: Up to 16× CAV

• CD-ROM / CD-R: Up to 48× CAV

• CD-RW: Up to 40× CAV

💿 CD Burning

• CD-R: Up to 48× CAV

• CD-RW: Up to 32× Z-CLV

🔁 Supported Formats

DVD Formats

• DVD-Video

• DVD-ROM (single & dual layer)

• DVD-R / DVD-RW

• DVD+R / DVD+RW

• DVD±R DL (dual layer)

CD Formats

• CD-ROM / CD-ROM XA

• CD-DA (Audio)

• CD-Text

• CD-Extra

• Photo CD

• Video CD

• CD-Bridge

• Hybrid CD

⚙️ Technical & Interface Details

• Interface: IDE / ATAPI (standard 40-pin connector)

• Transfer Modes: PIO mode 4 / Ultra DMA 33 (for faster data transfer)

• Cache / Buffer: ~2 MB buffer cache

• Mechanism: Standard motorized tray loading

• Audio Outputs: Some OEM versions include digital out & line-out for analog audio streaming without a sound card

• Region Control: RPC II region settings (can typically be changed up to 5 times)

📊 Modes & Features

• Writing Methods Supported:

  • DAO (Disc At Once)

  • SAO (Session At Once)

  • TAO (Track At Once)

  • Packet Writing / Multi-session

• WOPC (Write-Once-Per-Disc Compensation): NEC technology to optimize laser power for higher quality burns on variable media types

🧩 Physical & Installation

• Form Factor: Standard internal 5.25″ optical drive bay

• Power: Standard 4-pin Molex power connector

• IDE Cable: Requires a standard 40-pin IDE ribbon cable to motherboards supporting ATAPI
