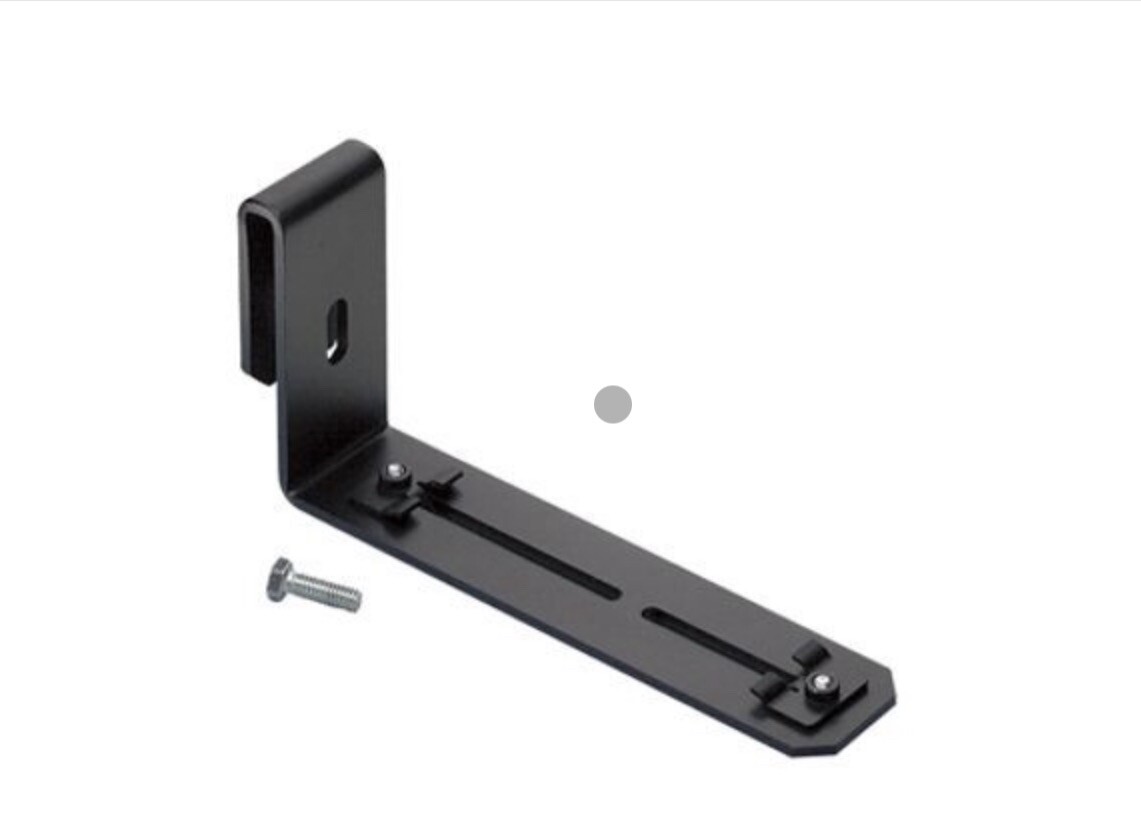

New - Panduit FR6LRB - Ladder RackUsed to support the 6x4 and 4x4 systems attaching directly to any 3/8 (9.5mm) x 1 1/2" (38.1mm) or 3/8" (9.5mm) x 2" (50.8mm) ladder rack rail. No threaded rod required. The pre-assembled slide clamps enable fast assembly to channel. Use 7/16" nut driver on slide clamps.
SpecificationsApplication(1) The Fiberrunner 6X4 Routing System is a System of Channel, Fittings and Brackets Designed to Segregate, Route, and Protect Fiber Optic and High Performance Copper Cabling. (2) it is Suited for Data Center ApplicationsProduct TypeLadder RackSub BrandFiberRunnerColorBlackFor Use WithFast Assembly to ChannelIncludes(1) Bracket AssemblyMaterialSteelNumber of Pieces1Overall Height (In.)4.55Overall Height (mm)115.6Overall Length (In.)9.43Overall Length (mm)239.5Overall Width (In.)2Overall Width (mm)50.8Standards MetUL Listed to 2024A Optical Fiber Cable Routing Assemblies Compliant with the Applicable Tests in Telcordia Gr-63-Core Network Equipment Building Systems Level 3, LP-CSISPEC-FRSystem Dimensions4x4/6x4Angle90°Series Type4 x 4 and 6 x 4 FiberRunner Brackets
