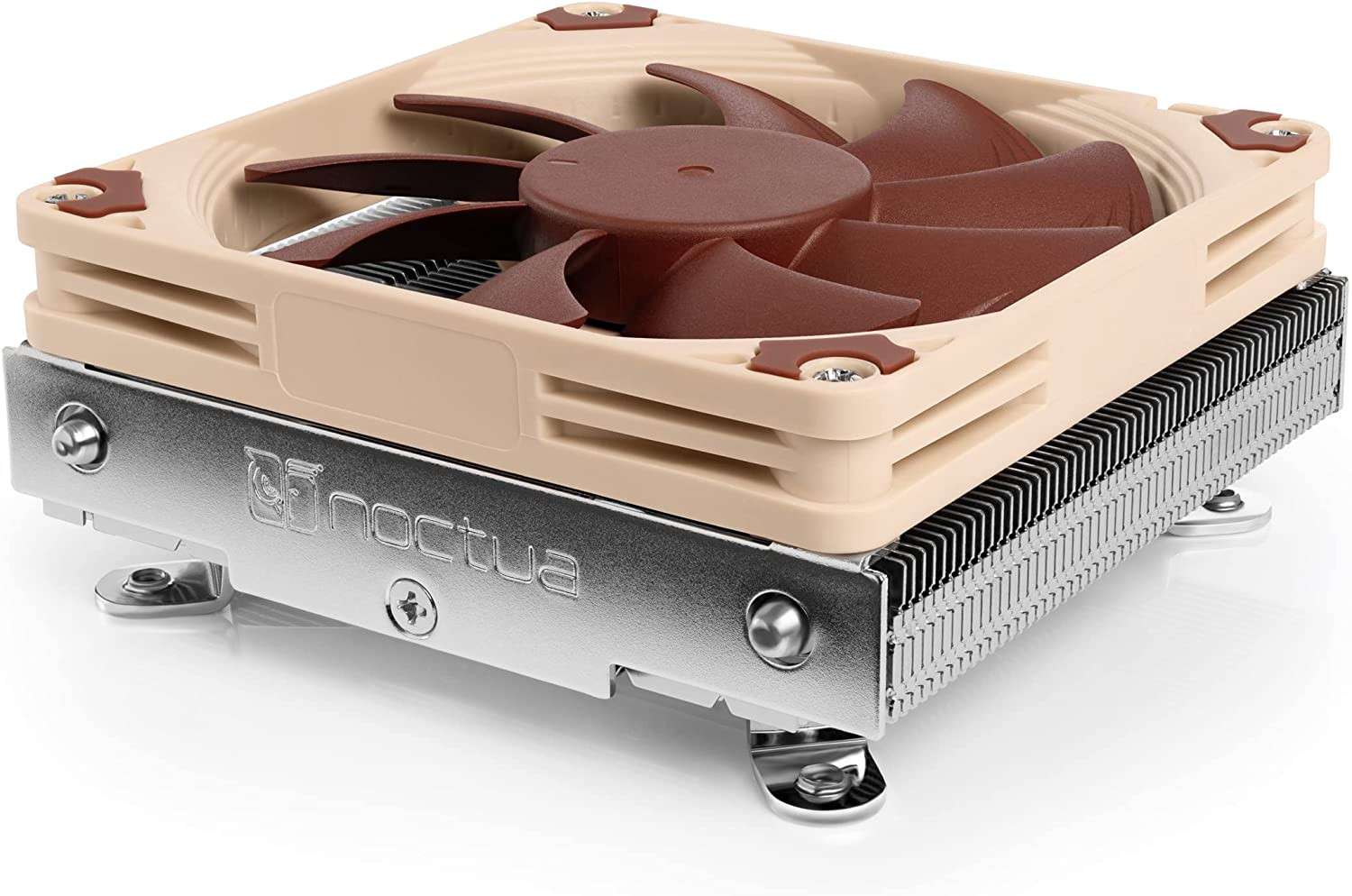

Noctua Nh-L9I-17Xx, Premium Low-Profile CPU Cooler for Intel LGA1700 and LGA1851 (Brown)Description Cooler Heatsink Compatibility Intel LGA1700, Intel LGA1851 Item Weight 430 Grams Brand Noctua Cooler Heatsink Material Copper Product Dimensions 3.74"L x 3.74"W x 1.45"H
- Proven premium heatsink (more than 200 awards and recommendations from international hardware websites), latest revision for Intel’s LGA1851 and LGA1700 platforms
- Only 37mm height allows it to fit compact HTPC and Small Form Factor (SFF) cases, tailored footprint guarantees 100% RAM and PCIe compatibility on all ITX, Micro-ATX and ATX LGA1700 or LGA1851 motherboards
- Renowned, award-winning NF-A9x14 slim 92mm fan with Low-Noise Adaptor and PWM for automatic speed control: full cooling performance under load, whisper quiet at idle!
- Includes high-end NT-H1 thermal paste and SecuFirm2 mounting system for easy installation on Intel LGA1700 and LGA1851 CPUs
- Renowned Noctua quality backed up by 6-year manufacturer’s warranty, deluxe choice for Intel Core & Core Ultra with moderate heat load (e.g. 245K, 14600, 13600, see compatibility list)
Product description
The NH-L9i-17xx is the latest revision of Noctua’s award-winning NH-L9i low-profile CPU cooler for Intel LGA1700 or LGA1851 based HTPCs and Small Form Factor (SFF) systems. At a height of only 37mm, the NH-L9i is ideal for extremely slim cases, and due to its small footprint, it provides 100% RAM and PCIe compatibility as well as easy access to near-socket connectors even on tightly packed mini-ITX motherboards. The custom-designed SecuFirm2 mounting system for the LGA1700 and LGA1851 sockets makes installation a breeze, and thanks to the highly optimised NF-A9x14 92mm fan that supports fully automatic speed control via PWM, the NH-L9i-17xx runs remarkably quietly. Topped off with Noctua’s renowned NT-H1 thermal compound, the NH-L9i-17xx combines everything users have come to expect from Noctua’s larger coolers into a super-compact, premium-quality package for mini-ITX and HTPC builds with Intel LGA1700 or LGA1851 CPUs.
37mm low profile
Due to the slim 23mm heatsink and the NF-A9x14 low profile fan that measures only 14mm in thickness, the NH-L9 stands a mere 37mm tall, which makes it ideal for use in compact HTPCs or Small Form Factor cases that offer minimum clearance for CPU coolers.
100% RAM compatibility
The NH-L9i has a 95x95mm footprint that complies exactly with the Intel LGA1700/LGA1851 socket keep-out zone. This means that it won't cause issues with VRM heatsinks and doesn't overhang the RAM slots, so it's fully compatible with tall memory modules.
100% compatibility with PCIe cards on mini-ITX
Some mini-ITX motherboards have the PCIe slot sitting close to the 95x95mm socket zone. While larger coolers that exceed this zone are likely to block the PCIe slot, the 95x95mm sized NH-L9i provides full compatibility with PCIe cards.
NF-A9x14 PWM premium fan
The highly optimised NF-A9x14 premium fan features Noctua's proprietary AAO frame as well as sophisticated aerodynamic design measures. Supporting PWM for fully automatic speed control, the NF-A9x14 allows the NH-L9i to stay remarkably quiet.
Measurements
- Height (without fan) 23 mm
- Width (without fan) 95 mm
- Depth (without fan) 95 mm
- Height (with fan) 37 mm
- Width (with fan) 95 mm
- Depth (with fan) 95 mm
- Weight (without fan) 345 g
- Weight (with fan) 420 g
Material
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
Cooler Specifications Please Note:
The NH-L9i is a highly compact, quiet low-profile cooler. While it provides first-rate performance in its class, it is not suitable for overclocking and or CPUs that create high heat loads. Please consult our CPU compatibility list to find out whether the NH-L9i is recommended for your CPU.
Scope of delivery
- NF-A9x14 HS-PWM premium fan
- NA-RC7 Low-Noise Adaptor (L.N.A)
- NT-H1 high-grade thermal compound
- SecuFirm2 mounting kit
- Screws for 92x92x25mm fans
- Noctua Metal Case-Badge
New revision for Intel’s LGA1700 and LGA1851 sockets
Since the original NH-L9i for LGA1200 and LGA115x has received more than 200 awards and recommendations from international hardware websites and magazines, the new 17xx revision builds on the same proven heatsink design to provide excellent low-profile cooling performance for LGA1700/LGA1851 CPUs.
