DESCRIPTION

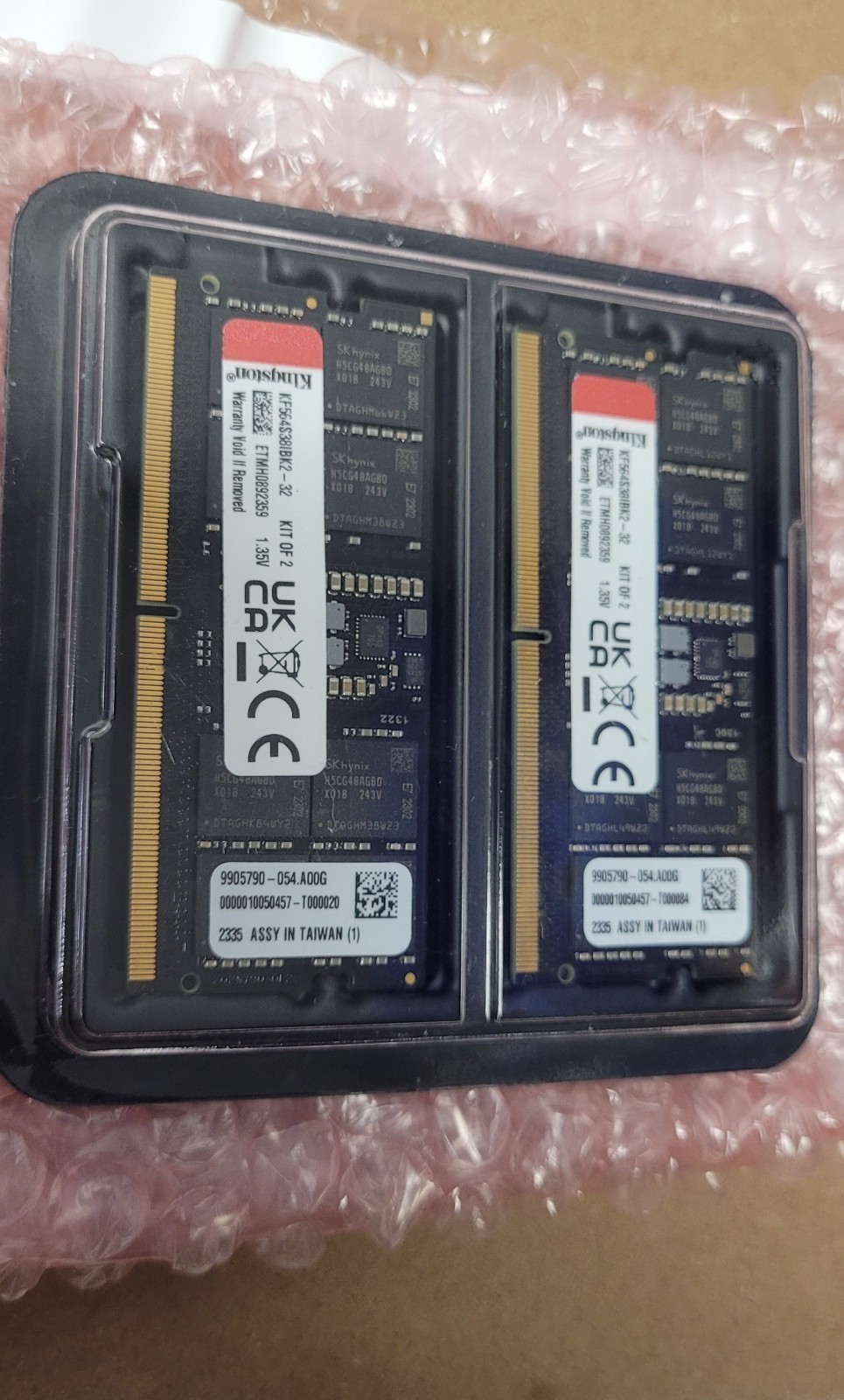

Kingston FURY KF564S38IBK2-32 is a kit of two 2G x 64-bit (16GB)
DDR5-6400 CL38 SDRAM (Synchronous DRAM) 1Rx8, memory
module, based on eight 2G x 8-bit FBGA components per module.
Each module kit supports Intel® Extreme Memory Profiles
(Intel® XMP) 3.0. Total kit capacity is 32GB. Each module
has been tested to run at DDR5-6400 at a low latency timing of
38-40-40 at 1.35V. The SPDs are programmed to JEDEC
standard latency DDR5-4800 timing of 40-39-39 at 1.1V.Each 262-pin DIMM uses gold contact fingers. The JEDEC
standard electrical and mechanical specifications are as
follows:
DEFAULT FEATURES
• Power Supply: VDD = 1.1V Typical
• VDDQ = 1.1V Typical
• VPP = 1.8V Typical
• VDDSPD = 1.8V to 2.0V
• On-Die ECC
• Height 1.18” (30mm)
FACTORY TIMING PARAMETERS
• Default (JEDEC): DDR5-4800 CL40-39-39 @ 1.1V
• XMP Profile #1: DDR5-6400 CL38-40-40 @ 1.35V
• XMP Profile #2: DDR5-6000 CL38-38-38 @ 1.35V
• XMP Profile #3: DDR5-5600 CL40-40-40 @ 1.1V
