Orange Pi 5 Max 8GB RK3588 + 256GB eMMC Preinstalled OS + PSU WiFi6E M.2 NVMe
Price: US $325.00

Orange Pi 5 Max — 8GB LPDDR5 — Boots Out of the Box

Not abare board. This is a complete, tested system with Official OS already flashedto the onboard eMMC — plug in power and HDMI and you're at a login prompt.

The256GBeMMC is included and already imagedwith Orange Pi's official Ubuntu 22.04Jammy Server. These modules are hard to find stateside — no separate order, noflashing it yourself.

Included

  • Orange Pi 5 Max, 8GB LPDDR5, RK3588 (full RK3588 — not the reduced-lane RK3588S)
  • 256GB eMMC 5.1 module— OS preinstalled, original packaging included
  • RasTech 27W GaN USB-C power supply — 5.1V / 5A
  • Wi-Fi 6E antenna
  • EleUniverse N515 aluminum casewith screws (fanless — see thermals below)

Specs

  • Rockchip RK3588 — 4× Cortex-A76 @ 2.4GHz + 4× Cortex-A55
  • 8GB LPDDR5 · 6 TOPS NPU · Mali-G610
  • Wi-Fi 6E + Bluetooth 5.3 · onboard 2.5GbE
  • 2× HDMI 2.1 out · 2× USB 3.0 · 2× USB 2.0 · audio in/out · mic
  • M.2 M-key PCIe 3.0 x4 — slot tested, Gen3 link confirmed. Add your own NVMe.
  • 2× MIPI camera (CSI) · MIPI LCD · 40-pin GPIO · debug UART · RTC header
  • Board revision: OPi 5 Max V1.1

Tested —not assumed

Everycheck below was run on the unit being sold.

  • Boots from eMMC with no SD card inserted ✓
  • Wi-Fi 6E associated, internet verified ✓
  • eMMC read/write verified, then securely erased before imaging ✓
  • M.2 slot verified with a known-good NVMe — PCIe Gen3 link up ✓
  • Full 227GB root filesystem — no shrunken partition to expand ✓
  • Idle 37–42 °C on an open bench, no fan(44–47 °C racked, same passive cooling)

On power

This boardwants5V at 5A— a lot of USB-C chargers won't deliver it, and youget brownouts or a board that won't post. The included RasTech GaN PSU israted 5.1V/5A and has run with no power issues.
NOTE: All boards and PSUs have been running continuously on a CyberPowerCP1500PFCLCD pure sine wave UPS with AVR — no surges, no brownouts, no hardpower-offs.

Oncooling

No fanincluded — these ran fine passively at 37–42 °C idle, the aluminum case doingthe work. If you want active cooling for a heavier workload, the case takes astandard 30×30×10mm 5V fan off the GPIO header.I would go with a dualball bearing one personally.

Condition

Used, from aworking Linux cluster. Never overclocked, never modified. Heatsinks come pre-installedon every board.

OS:officialOrange Pi Ubuntu 22.04 Jammy Server, freshly flashed and SHA256 verifiedagainst the vendor image. Completely stock — no credentials, no accounts, noleftover config. First boot is yours.

Notincluded:NVMe drive, microSD card, case fan.

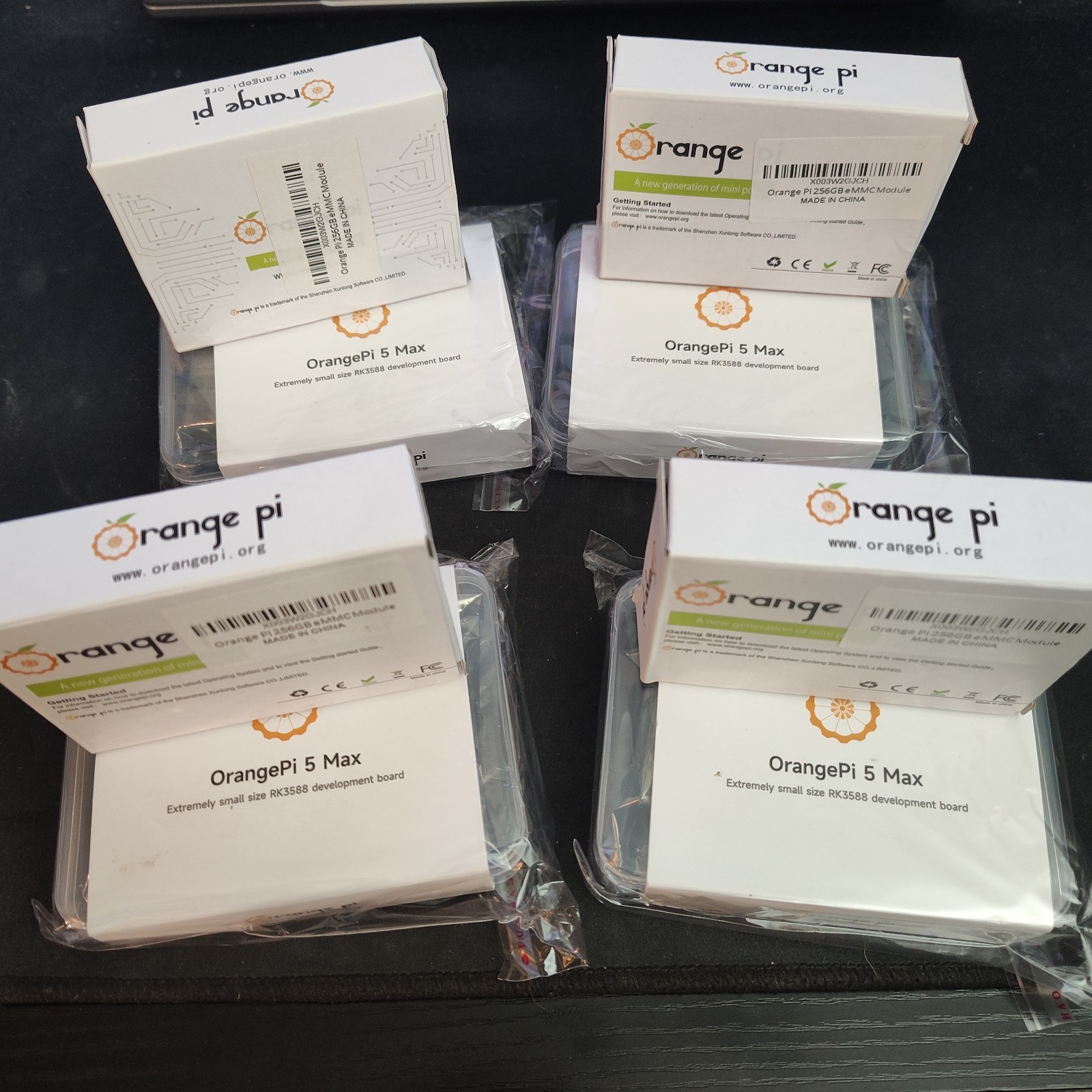

Ships inoriginal packaging where I still have it as pictured, equivalent protectivepackaging where I don't.

Availabilityand Pricing

Four currentlyavailable while they last! Identically prepared and tested.Need more than one? Check out our Buy More Save Morediscount pricing!Questions — message me. Happy to answer before you buy.
