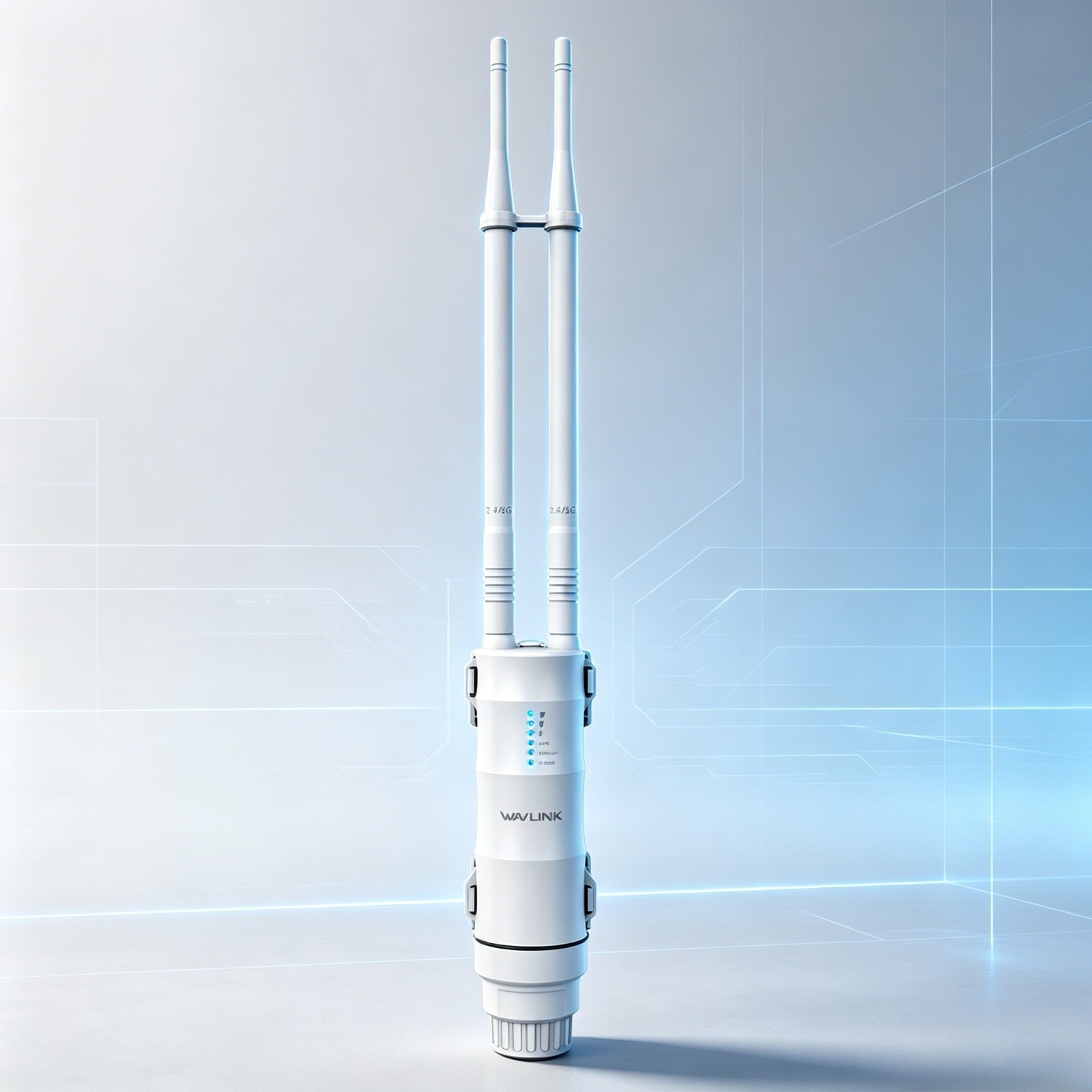

WAVLINK 300Mbps Outdoor Access Point
The WAVLINK HighPower Wi-Fi AP/Repeater/Extender is mainly used for providing free Wi-Fi service
in large areas such as factories, communities, streets, etc. The AP/Repeater/Extender can take
an existing 2.4GHz wireless signal, repeat it, and extend it to a longer range where it is too far away
for the router or access point to reach. And it can support 2.4G transmission speeds of up to 300 Mbps.
It has two external antennas, providing even better wireless performance, transmission rates, and stability.
Automatically avoids channel conflicts using its channel selection feature.
Multiple Working Modes
It supports four working modes. The repeater mode extends the Wi-Fi coverage of an existing wireless network.
Router mode creates an instant private wireless network, enabling multiple devices to share it.
AP mode converts a wired network to a wireless one. AP+Repeater mode extends the range of a
wireless network by using a repeater to amplify and relay the signal from an access point.
Applicable to Kinds of Weather
IP67-rated weatherproof and heat-resistant housing ensures continued operation in harsh
outdoor environments. For example, it is sunny and exposed to the sun; it rains and is wet;
it snows and freezes; and there is thunder and lightning.
7dBi Omni Directional Antenna
The high-gain antenna panel has two built-in 7-dBi omni directional antennas, which are designed
to strengthen the WiFi signal in one direction and make it more concentrated. And WiFi coverage
in a specific direction is farther than omnidirectional antennas.
Power Over Ethernet
Integrated Power over Ethernet (PoE) enables power and network data connections to be consolidated
into a single RJ-45 cable, allowing installation in areas without power outlets. It is equipped with passive
PoE and also supports active PoE. You can use and connect your own active switch.
Applicable to Multiple Scenarios
It is suitable for various large-scale outdoor scenes, whether it is your own yard,
outdoor swimming pool, school, park, playground, or outdoor parking lot.
How to Install Antennas and Ethernet Cable?
1) Pass the RJ45 cable through the spiral cover.
2) Pass the RJ45 cable through the rubber seal.
3) Pass the RJ45 cable through the holder.
4) Connect the RJ45 cable to the RJ45 port.
5) Spin the 2.4G antenna into the 2.4G external RP-SMA connector.
6) Tighten to secure the holder.
7) Insert the rubber seal into the holder.
8) Secure the spiral cover by screwing it on.
Note: The PoE converter is not waterproof, please install it indoors.
Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
Installation Steps for the Device
1) Fasten the main body holder.
2) Plug the device into the holder.
3) Connect one end of an Ethernet cable to the "PoE" port of the PoE converter.
4) Connect one end of another Ethernet cable to the "LAN DATA IN" port of the PoE converter,
and connect the other end to a "LAN" port of your router.
5) Plug the Power Adapter into the power outlet.
6) Push the "ON/OFF" button on the PoE converter to power on.
Warm Tips
1.The PoE converter is not waterproof, please install it indoors.
2.Please make sure your Ethernet cable to the outdoor router is CAT5E or above certified and shorter than 100m/328ft.
3.Please install the product 2-3 meters above the ground for better WL-WN570HN2-B
2.Ports: 1 x WAN/LAN 100Mbps
3.Button: 1 x Reset(8s); Status LED: 1 x Power, 1xWAN/LAN, 1 x WiFi , 3 x Signal
4.Power Supply: DC 54V/0.3A Power over Ethernet(Passive), DC 48V Power over Ethernet(Active)
5.Wireless Standard: IEEE 802.11 b/g/n
6.Frequency Band/Speed: 2.4GHz(300Mbps)
7.Antenna: 2 x 7dBi Omni Directional Antennas
8.Wireless Security: WPA-PSK/WPA2-PSK encryption
9.Unit Size(without antennas): 18cm x 5cm x 5cm/ 7.1in x 2in x 2in (L x W x H ); Antenna Length: 25cm/9.8in
10.Ethernet Cable Length: 100cm/39.4in
11.Power Adapter Cable Length: 120cm/47in
12.Operating Temperature: Temperature: 150m(Change with the Actual Environment)
In the Box
1x N300 Outdoor Access Point
2x 7dBi High-gain Antennas
1x RJ-45 Ethernet Cable
1x Power Adapter
1x PoE Converter
1x Main Body Holder
2x Cable Ties
1x Screw Fitting Kit
1x Quick Start Guide
