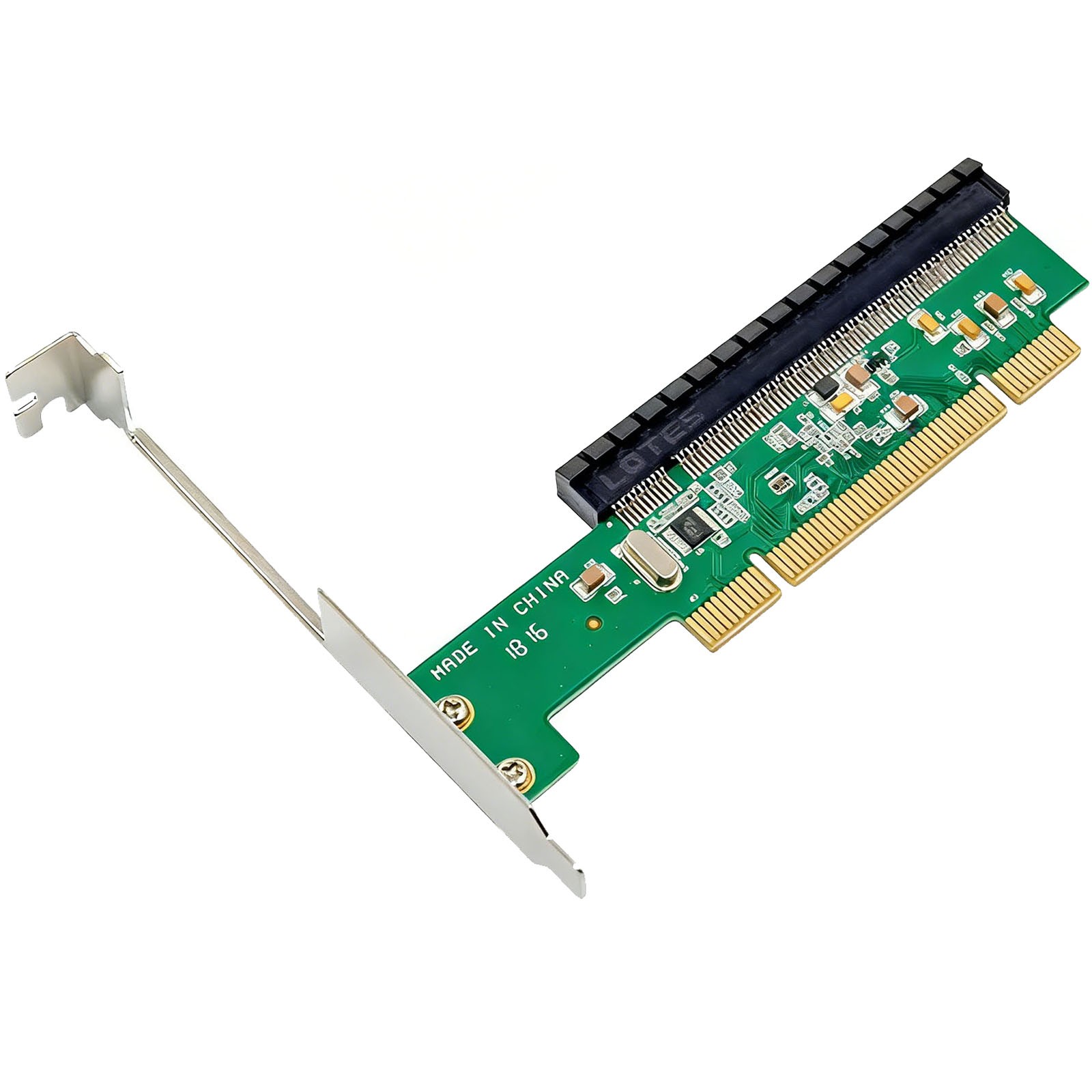

PCI To PCI Express X16 Conversion Card PCI-E Bridge Expansion Card PXE8112
PEX 8112 supports forward and reverse bridges as defined by the PCI to PCI Express / PCI-X Bridge Specification 1.0.
In forward mode, the bridge allows legacy PCI chips and adapters to be used with the new PCI Express processor system. Reverse bridge operation allows traditional PCI processors and chipsets to configure and control advanced PCI Express switches and endpoints.In contrast, the PEX 8112 not only allows downstream PCI Express systems to be fully configured from the PCI bus, but also handles limited PCI Express root functions for reverse interrupt and power management PXE8112
Compliant with PCI Specification Version 2.3
PCI 32-bit card for PCI Express x1, x4, x8 or x16
PCI Express 1 lane port (1 virtual lane), 2.5Gbps
Compliant with PCI Express Specification Version 1.
Combination low profile PCI 32-bit host card0
Support PCI slot 3.3V / 1A, 3.3Vaux / 100mA, 5V / 5A and 12V / 500m
Plug and playapplication:
Windows Server 2000 / NT / XP / Vista / Win 7, Linux
Available PCI x39mmPackage Contents:
1 x conversion card
