Store Categories Store Categories PCIe Gigabit Fiber Network Lan Card 10/100/1000Mbps Network Card Intel I210 Chip
Product Description

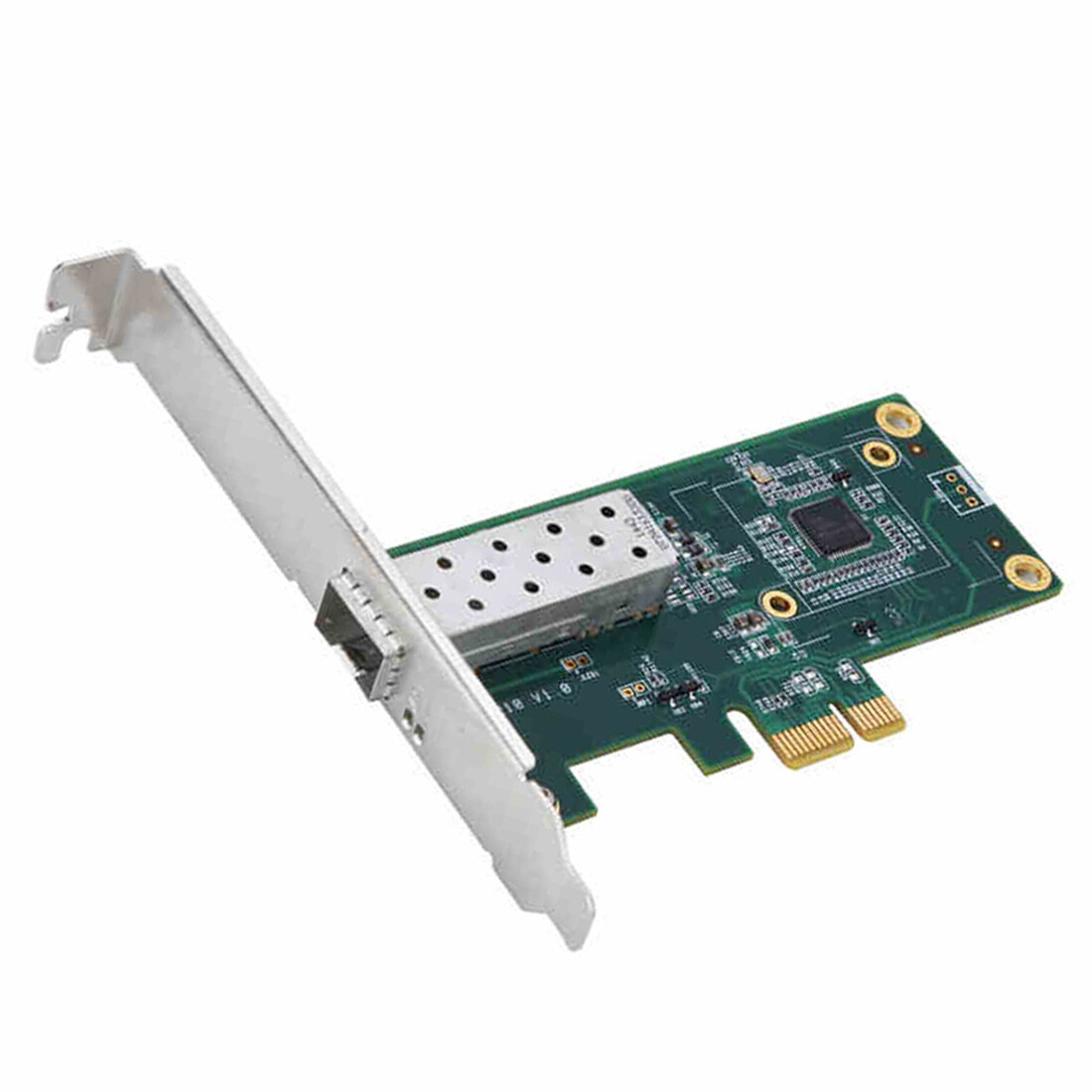

PCI Express 1x Gigabit Fiber Network Lan Card with Single SFP Port 10/100/1000Mbps Ethernet Controller for Desktop
Chipset Description:
The Ethernet Controller I210 (I210) is a single port, compact, low power component that
supports GbE designs. The I210 offers a fully-integrated GbE Media Access Control (MAC), Physical
Layer (PHY) port and a SGMII/SerDes port that can be connected to an external PHY. The I210
supports PCI Express* [PCIe v2.1 (2.5GT/s)].
The I210 enables 1000BASE-T implementations using an integrated PHY. It can be used for server
system configurations such as rack mounted or pedestal servers, in an add-on NIC or LAN on
Motherboard (LOM) design. Another possible system configuration is for blade servers as a LOM or
mezzanine card. It can also be used in embedded applications such as switch add-on cards and network
appliances
Features:
• Small package: 9 x 9 mm
• PCIe v2.1 (2.5 GT/s) x1, with Switching Voltage Regulator (iSVR)
• Integrated Non-Volatile Memory (iNVM)
• Three single port SKUs: SerDes, Copper, Copper IT
• Value Part (Ethernet Controller I211)
• Platform Power Efficiency
— IEEE 802.3az Energy Efficient Ethernet (EEE)
— Proxy: ECMA-393 and Windows* logo for proxy offload
• Advanced Features:
— Audio-video bridging
• IEEE 1588/802.1AS precision time synchronization
• IEEE 802.1Qav traffic shaper (with software extensions)
— Interrupt moderation, VLAN support, IP checksum offload
— PCIe OBFF (Optimized Buffer Flush/Fill) for improved system power management
— Four transmit and four receive queues
— RSS and MSI-X to lower CPU utilization in multi-core systems
— Advanced cable diagnostics, auto MDI-X
— ECC – error correcting memory in packet buffers
— Four Software Definable Pins (SDPs)
• Manageability:
— NC-SI for greater bandwidth pass through
— SMBus low-speed serial bus to pass network traffic
— Flexible firmware architecture with secure Flash update
— MCTP over SMBus/PCIe
— OS2BMC/CEM (optionally enabled via external Flash)
— PXE and iSCSI boot
Package included : 1 * PCIe Gigabit fiber network lan card
