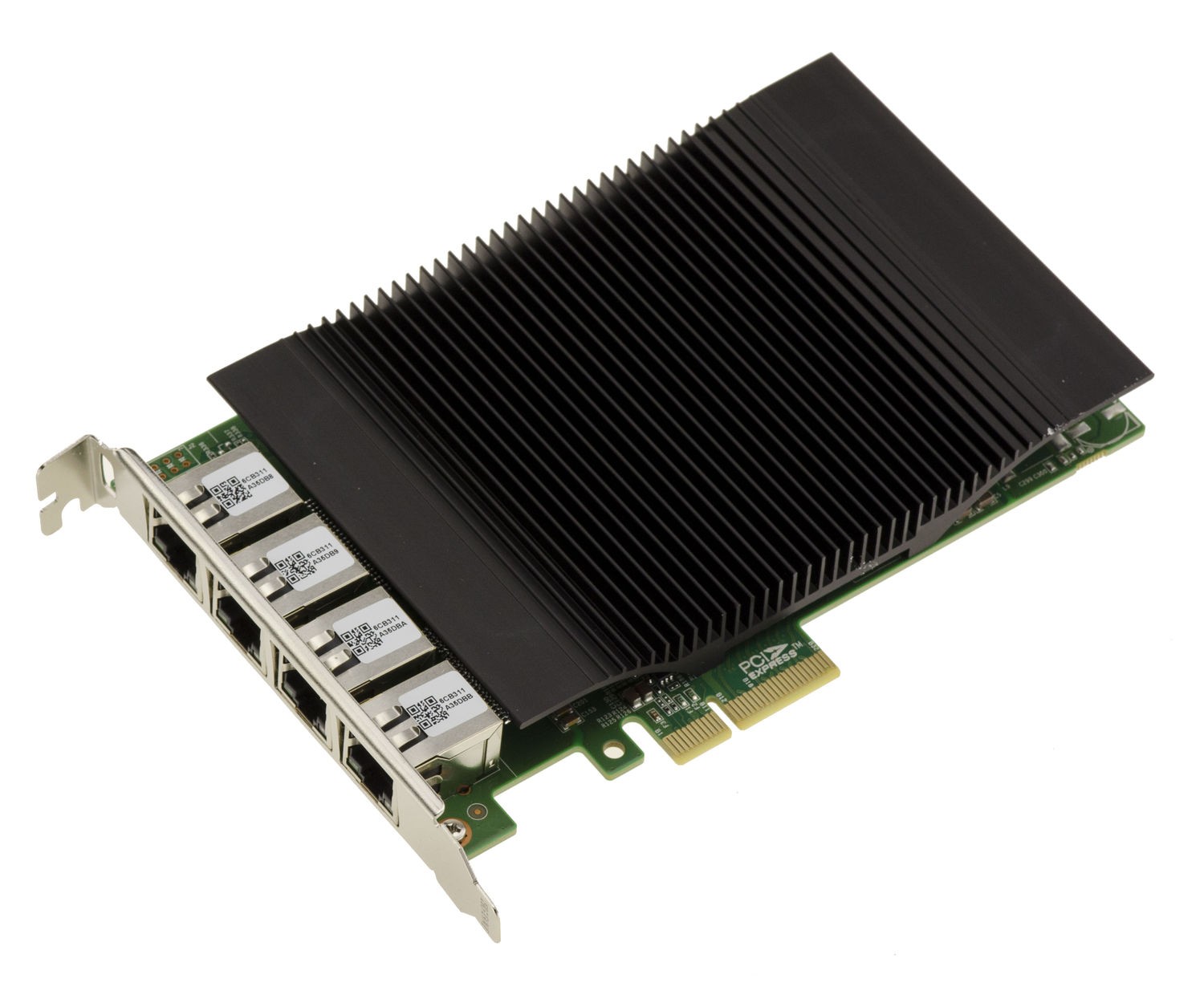

For DESKTOP PC or server on PCIe x4 port. Compatible with all RJ45 10Mbps, 100Mbps, 1G, 25.5G networks. Provides four 2.5 Gigabit Ethernet ports.
Industrial quality card, intended for intensive use.
Compatibility:
Windows ME,98SE, 2000, XP, Vista, 7, 8, 10, 11 32-/64-bit, Windows Server (including Server 2025), Deepin 20/20.6/20.9, RHEL/CentOS 8.2, Ubuntu 20.04.1/22.04.2, SUSE 12.5/15.4, FreeBSD 13.2, Mikrotik, VMWare, MAC etc...
Features :
Uses 4 INTEL I226 (SRKTU) CHIPSETs and a PLX bridge.
Industrial type Quad Port 10/100/1000/2500 Mbps card,
PCIe Gen 2.0 x4 (compatible x4, x8, x16),
Power supply via Molex +12V DC AT/ATX plug,
Autodetection of powered devices (Powered Device - PD) and classification by PoE+ port,
Support IEEE 802.3x support; IEEE 802.3x.
Communication distance: 50m in CAT7 2.5G, 100m in CAT7 1G or less.
Wider spacing of RJ45 ports for easier access and locking,
Radiator for optimal heat dissipation,
Jumbo frame 9.2K,
Power consumption of 5.88W in standby.
ESD protection ±8kV and overload ±2kV.
Support: PXE, MDI/MDI-X, NCSI, WoL, 1588 PTP Yes, RSS 4.
Connection and transfer indicator diodes.
Dimensions: 156.7x104.37x1.6mm.
Operating conditions: temperature 0/55 degrees C, maximum humidity 90 degrees.
