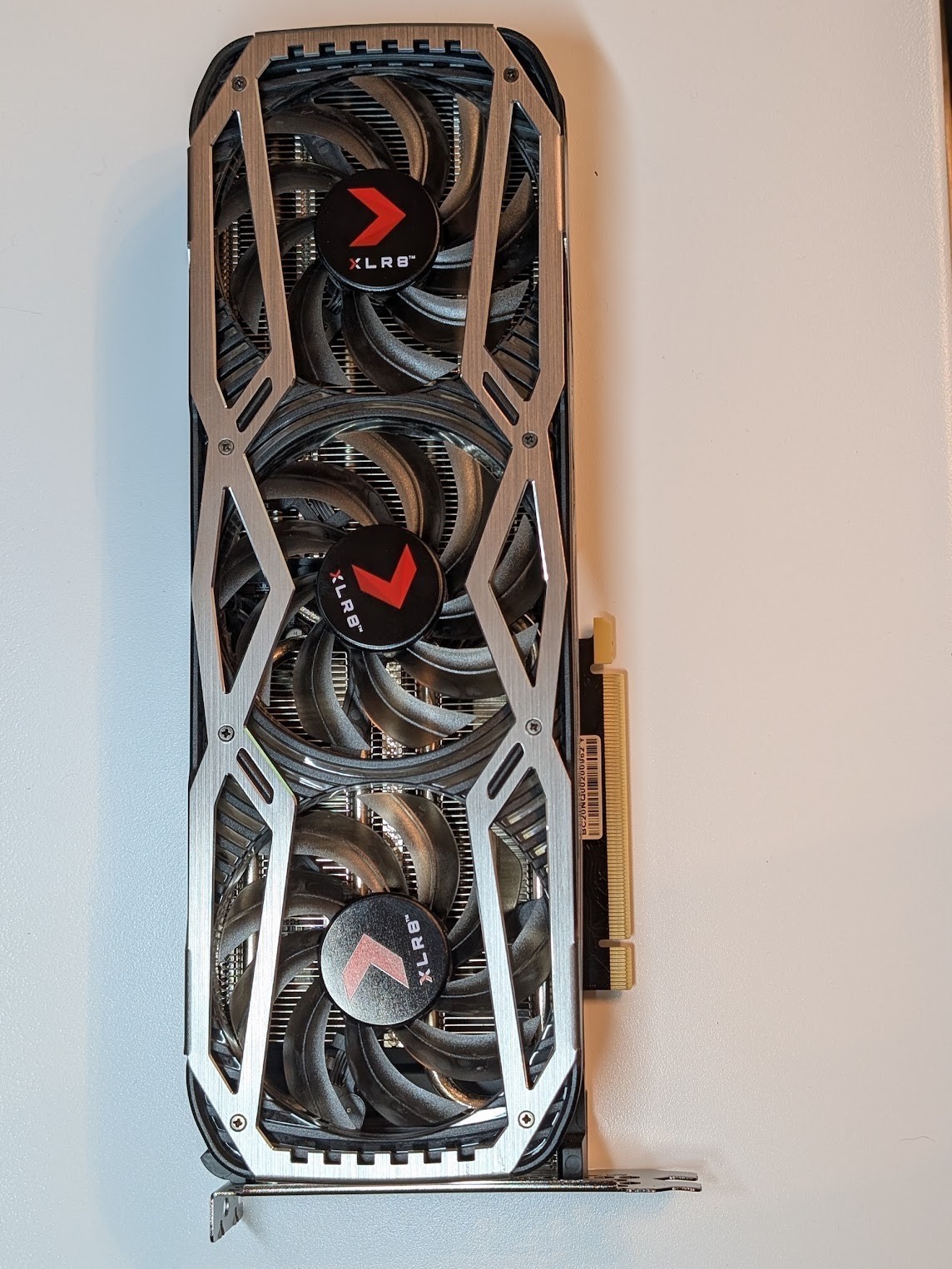

PNY GeForce RTX 3090 24GB GDDR6X XLR8 REVEL EPIC-X RGB
Thermal Service: Card has been repasted with Honeywell PTM7950, Furmark at 30 minutes runs in the mid 70 degrees or cooler (this is very, very cool for air). Card should never need repasted again as PTM does not evaporate or shrink.
UPC: 751492639543
MPN: VCG309024TFXPPB
Brand: PNY
Chipset Manufacturer: NVIDIA
Chipset/GPU Model: NVIDIA GeForce RTX 3090
Memory Size: 24 GB
Memory Type: GDDR6X
Compatible Slot: PCI Express 4.0 x16
Connectors: DisplayPort, HDMI
Power Cable Requirement: 8-Pin + 8-Pin PCI-E
Cooling Component Included: Fan with Heatsink
APIs: DirectX 12 Ultimate, OpenGL 4.6, Vulkan
Alternative Models & Cross-Brand Equivalents
For buyers cross-referencing specific PC builds or motherboard QVL lists, this item shares identical core specifications with, or is a direct physical variant of, the following manufacturer part numbers:
- VCG309024TFXMPB
- VCG309024TFXPPB1
- ROG-STRIX-RTX3090-O24G-GAMING
- TUF-RTX3090-O24G-GAMING
- 24G-P5-3987-KR
- 24G-P5-3975-KR
- GV-N3090GAMING OC-24GD
- RTX 3090 GAMING X TRIO 24G
Architecture & Compute Performance
Powered by the NVIDIA Ampere architecture (2nd Generation RTX), this RTX 3090 features a massive 10,496 CUDA cores with a base clock of 1395 MHz and a boost clock of 1695 MHz. Designed for extreme high-end gaming, 3D rendering, and AI/Machine Learning workloads, it utilizes 2nd Gen Ray Tracing Cores and 3rd Gen Tensor Cores to deliver unparalleled compute performance and realistic lighting.
VRAM & Memory Bandwidth
Equipped with a staggering 24GB of ultra-fast GDDR6X memory on a 384-bit interface. Operating at an effective memory speed of 19.5 Gbps, this card achieves a massive memory bandwidth of 936.2 GB/s, ensuring smooth performance in 8K gaming, heavy video editing, and complex data sets without bottlenecking.
Power, Cooling & Connectivity
The card features a robust Triple Fan cooling system in a 3-slot design (12.48 inch x 4.53 inch x 2.36 inch) to maintain optimal thermals under heavy loads. It requires two 8-pin PCIe power connectors with a 350W TDP (750W minimum system power supply recommended). Display outputs include 3x DisplayPort 1.4a and 1x HDMI 2.1, supporting up to 4 displays and a maximum digital resolution of 7680 x 4320 (8K at 60Hz and 4K at 120Hz).
