Pi1541 & Epyx Fast Load DIY Kit (NO Pi Zero Included) For Commodore 64
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Pi1541 & Epyx Fast Load DIY Kit (NO Pi Zero Included) For Commodore 64
Price: US $39.95

This is a DIY Kit to build your own Pi1541 & Epyx Fast Load Cartridge. It DOES NOT include the required Pi zero.

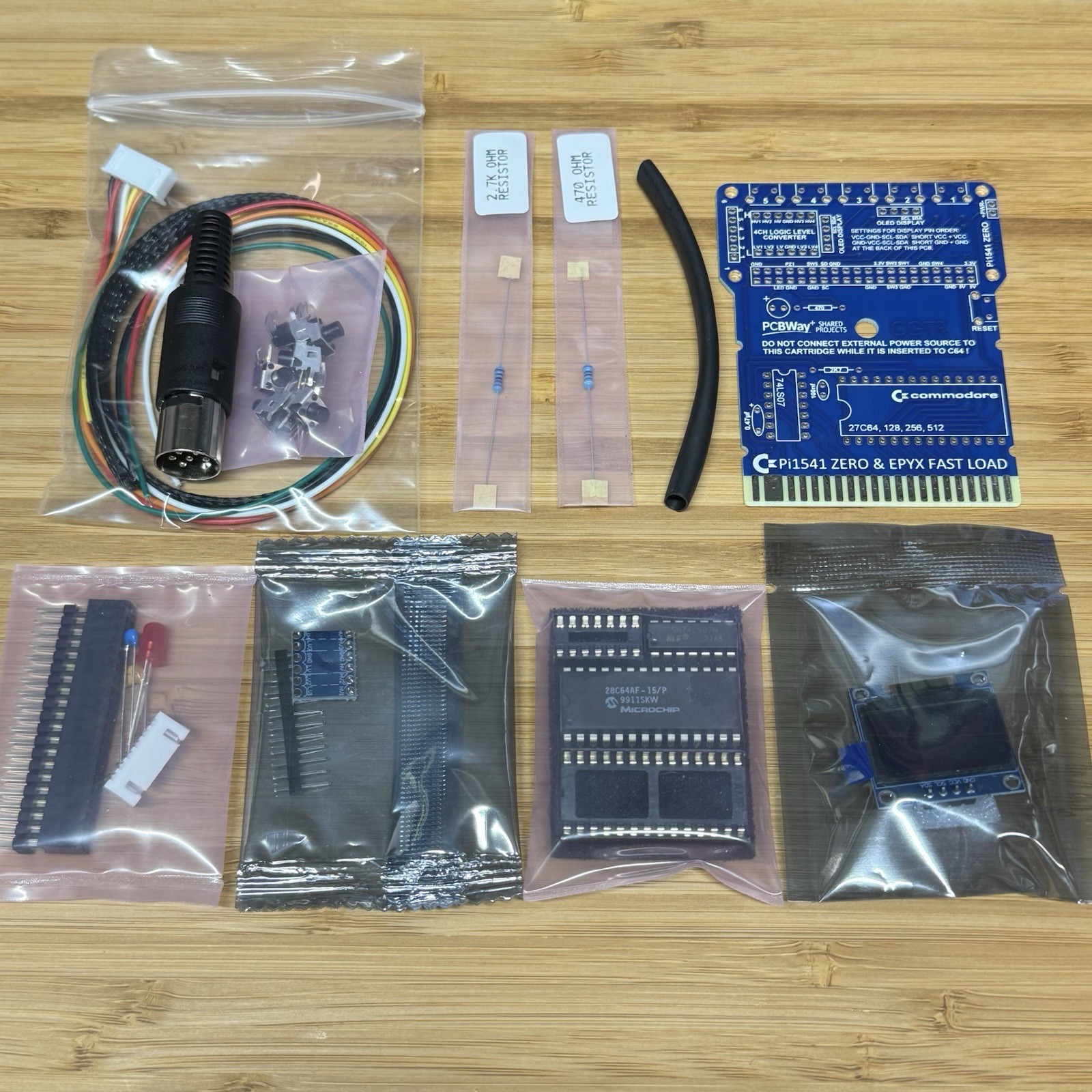

The kit contains the following Items:

  • Pi1541 & Epyx Fast Load PCB
  • 6 pcs. Right-Angle Tactile Push Button
  • 4 channel. offerirectional logic level converter
  • 6 pin Male DIN Connector
  • 6 pin Male JST Header
  • 6 wire 30cm Cable with 6 pin Female JST connector
  • 30cm PET Braided Sleeving
  • 3.5" Heat Shrink Tubing with adhesive (Cut to length when making your cable)
  • 0.96 inch Oled screen (Blue)
  • 2x20 pin male header
  • 2x20 pin female header
  • 470 ohm1/4watt Resistor
  • Red LED
  • Microchip 28C64AF-15/P EEPROM (Pre-programmed with Epyx Fast Load)
  • DIP28 wide IC socket
  • 74LS07
  • DIP14 IC socket
  • 100nf Capacitor
  • 0.47 μF Capacitor ( 470 nF )
  • 2.7K 1/4 WATT Resistor
Notes:- Some components may differ in appearance from photo based upon availability.- No documentation or instructions are included with this kit. does not allow me to share links in the listing, so you will have to search for "Pi1541 & Epyx Fast Load PCBWay" to find the project site. There is also a build video linked in the comments section of the site.
Thanks to C64iStanbul and Steve White and for sharing this project.
We will carefully package this item for safe shipment.
