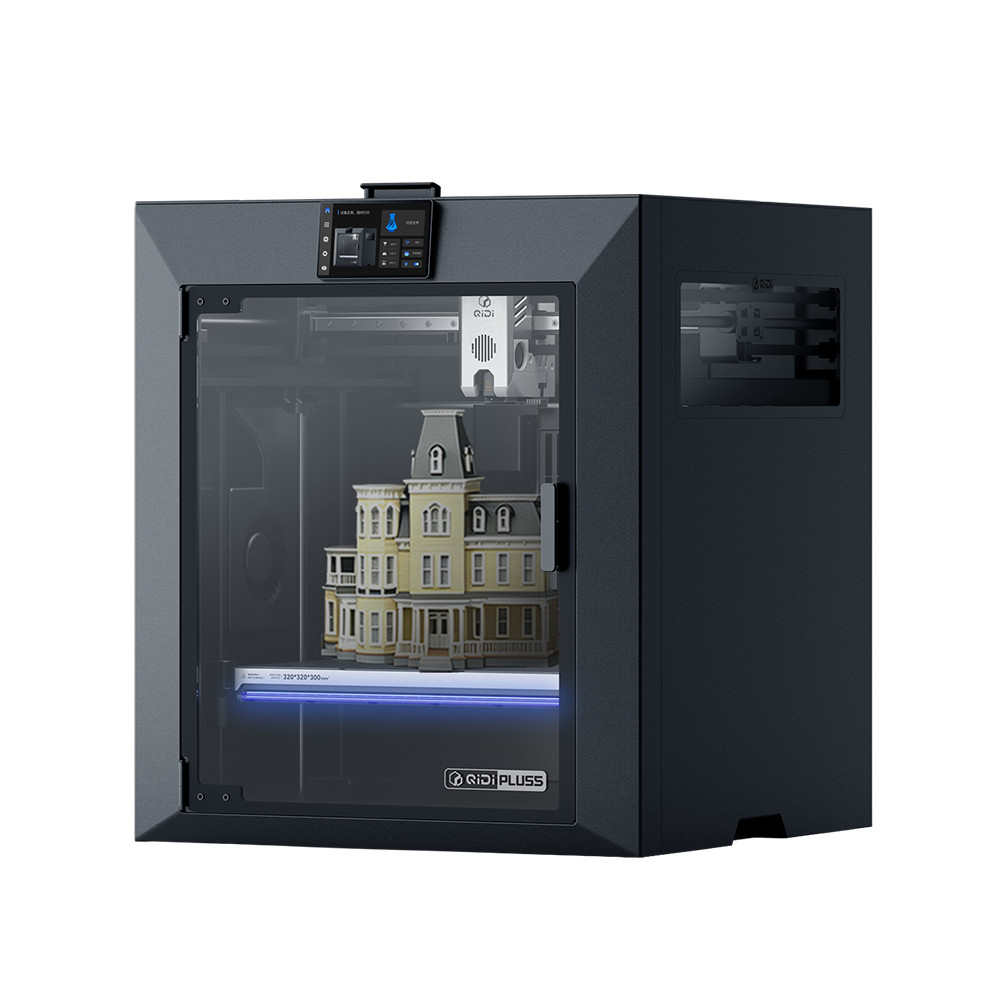

• 【Massive Build Volume for Large-Scale 3D Printing】: QIDI Plus5 3d Printer provide a 320×320×300mm build volume — 18% larger than Plus4 — this large 3D printer enables full-scale prototype printing, batch production of multiple parts in a single run, and oversized artistic models without splitting or scaling down; fewer print cycles, seamless assembly, and significantly higher workflow efficiency for engineers and makers
• 【Effortless for Engineering-Grade Filaments】: The QIDI Plus5 3D printers ware designed for high-performance materials including PPS-CF, PPA-CF, PC, and nylon etc, with a 370°C max extrusion temperature and an actively heated 65°C chamber; active chamber heating minimizes warping and maximizes layer adhesion, producing durable, heat-resistant functional parts ready for end-use applications and industrial-grade 3D printing tasks
• 【CoreXY+ Precision Motion System with Active Toolhead Cooling】: The QIDI Plus 5 3D printer is rigid CoreXY structure paired with X-axis linear guide rails and 9mm timing belts ensures stable, low-vibration high-speed 3D printing at up to 600mm/s and 20,000mm/s² acceleration; optional Polar Cooler actively cools the extruder to prevent heat-creep clogs inside the enclosed heated chamber, delivering both rapid prototyping speed and premium surface finish quality
• 【Smart Print Management & Stable Overday 3D Printing】: Equipped with automatic bed leveling, AI-powered camera monitoring, and remote control via mobile APP; during batch production, skip failed individual parts without pausing the entire plate — saving both time and filament; built-in multiple thermal sensors, flame-retardant enclosure, and 3-in-1 air filtration system ensure reliable, worry-free operation for long-duration and high-temperature printing sessions
• 【Multi-Material & Multi-Color 3D Printing with Active Drying】: Supports QIDI BOX (optional) for up to 16-color multi-material printing, featuring built-in active drying technology that continuously maintains low humidity inside the filament slots to prevent stringing, bubbles, and weakened layer adhesion caused by moisture; compatible with PLA, ABS, PETG, TPU, PA, PC, and carbon/glass-fiber composites, enabling strong, precise functional prototypes and vibrant full-color models with consistent extrusion and flawless surface quality
• 【10-Minute Quick Setup & User-friendly Experience】: Ready to print out of the box in just 10 minutes; cloud-based slicing lets you prepare models remotely and send print jobs to your printer with one tap; intuitive RGB status light provides clear visual response. The Plus5 FDM 3D printer own QIDI's lifetime technical support, ensures expert assistance whenever needed — making this 3D printing machine as beginner-friendly as it is powerful for professionals

What's in the box

QIDI Plus5 Technical Specifications

Print Size (W*D*H)320*320*300 mm

Printer Dimensions500*488*558 mm

Package Dimensions620*630*700mm

Gross Weight37.8kgNet Weight29kgPrint Head Temperature≤ 370℃

Printing PlateDouble-sided PEI Magnetic Build Plate

Hot Bed Temperature≤ 120℃

Max Speed of Tool StructureCoreXY, 9mm Width 1.5GT BeltX AxisHigh Hardness Linear Guide RailZ AxisDual Independent Lead Screw MotorsPrinting PlatformAluminum Plate Silicone Heated Bed
Status RGB LEDNozzleBimetal NozzleNozzle Diameter0.4mm （0.2/0.6/0.8mm Optional）Extruder GearDirect Extruder Hardened Steel Gears
Supported FilamentPLA, ABS, ASA, PETG, TPU, PA, PC, Carbon/ Glass Fiber Reinforced Polymer，etc.Filament Diameter1.75mmMulti-Color PrintingCompatible with QIDI Box(Multi-color)Air filterYes（3-in-1 Air Filter: G3 Pre-Filter + H12 HEPA + Coconut Shell Activated Carbon）
Chamber Temperature3rd Gen Up to 65° C , Independent Chamber Heating
Automatic LevelingHands-free Automatic Leveling（Loadcell Sensor Integrated into the Hotend）Filament DetectionRun Out Sensor(mounted above extruder), and Tangle Detection(QIDI BOX required)AI Camera DetectionYesAuxiliary Part Cooling Fan4-Pin PWM Fan with RPM responseHot End Cooling Fan4-Pin PWM Fan with RPM responseModel Cooling Fan4-Pin PWM Fan with RPM responsePower Loss Recovery：YesInput ShapingYesVoltage110V / 220–240V AC, 50/60Hz (region-specific models available)Rated Power150W+550W(Chamber Heating)+500W(Heatbed)
Steady-State Power（25°C Ambient）:
PLA:190W, ABS:500WCameraCamera (Up to 1080P), Timelapse Supported
Storage32G EMMC and USB2.0 Flash DriveConnectivity2.4GHz/5GHz Wi-Fi, Ethernet, USBDisplay Screen4Inch 800*480 Touch ScreenSlicerQIDI Studio and other third-party software, such as Orca,PrusaSlicer etc.File Formats for SlicingSTL, OBJ, 3MF,STEP,STP
