QNAP TVS-h874T — Upgraded 8-Bay NAS
Intel Core i7-12700E · 64GB RAM · Dual 10GbE · Thunderbolt 4

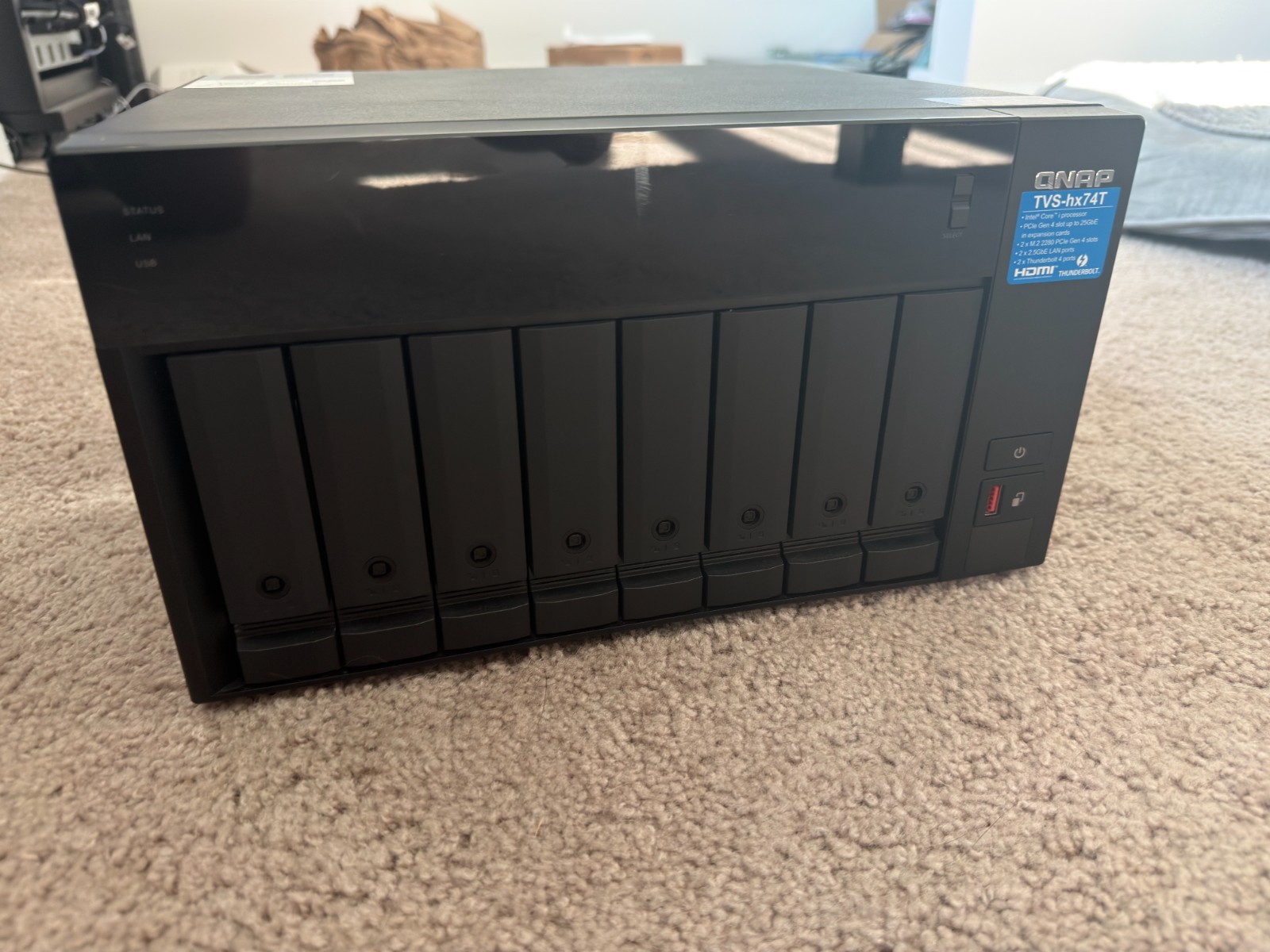

Selling my QNAP TVS-h874T with upgraded memory and the QM2-2P410G2T networking/NVMe expansion card. Used, fully working, with no known issues. The photos show the actual unit and its hardware.
DISKLESS — no HDDs, SATA SSDs, or M.2 NVMe drives included.
Installed configuration
- CPU: Intel Core i7-12700E, 12 cores / 20 threads
- RAM: 64GB DDR4 SODIMM (2 × 32GB), upgraded from the standard i7 configuration
- Drive bays: Eight hot-swappable SATA bays for 3.5-inch HDDs or 2.5-inch SATA SSDs
- NVMe: Four M.2 2280 slots total — two onboard PCIe Gen4 x4 slots plus two on the QM2 card. M.2 slots are not hot-swappable.
- 10GbE upgrade: QM2-2P410G2T card with two RJ45 10GbE ports and two M.2 PCIe Gen4 x4 NVMe slots; PCIe Gen4 x8 card interface
- Thunderbolt: QXP-T42P card with two Thunderbolt 4 ports
- Additional networking: Two built-in 2.5GbE RJ45 ports
- USB: Three USB 3.2 Gen 2 (10Gbps) ports — two Type-A and one Type-C
- Display output: HDMI 1.4b, up to 4096 × 2160 at 30Hz
- Graphics: Intel UHD Graphics 770
- Power supply: Internal 350W, 100–240V AC
Storage and homelab capabilities
Supports QNAP storage, backup, snapshots, virtual machines, and containers using the appropriate QNAP operating system and apps. Add compatible drives and configure the NAS for your own environment.
Condition & included hardware
Used and fully functional, with no known issues. Review the exterior, rear-panel, internal-hardware, and system-information photos for condition and configuration.
- QNAP TVS-h874T NAS
- Installed 64GB RAM (2 × 32GB)
- Installed QXP-T42P Thunderbolt 4 card
- Installed QM2-2P410G2T dual-10GbE / NVMe card
No storage drives are included. The 64GB specification is system RAM, not storage capacity. Drive compatibility and software requirements depend on the intended configuration.
Chassis dimensions, excluding feet: 7.09 in H × 12.96 in W × 11.01 in D. These are device dimensions, not shipping-box dimensions.
