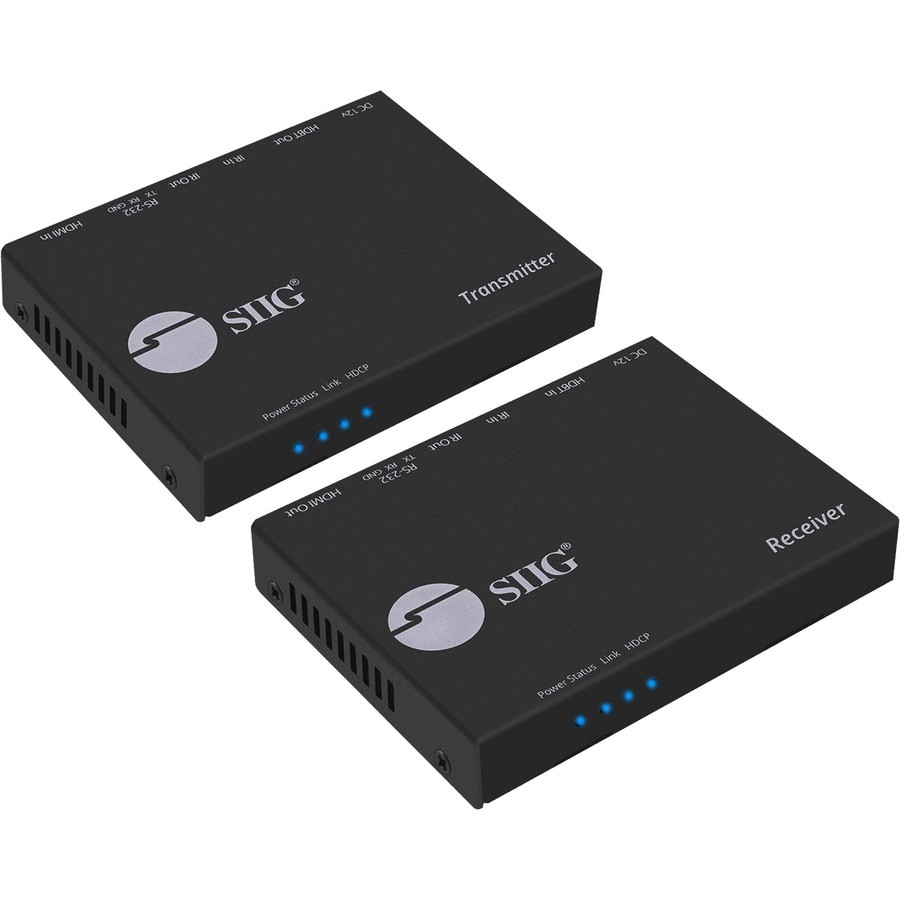

SIIG 4K HDMI HDBaseT Extender Over Single Cat5e/6 with RS-232 IR & PoC 100m Brand: SIIG UPC: 0662774041407 Mfr Part #: CEH23F11S1
General Information
Extends HDMI 1.4 audio and video signals, RS232 control, IR control, and Power over Cable (PoC) up to 100 meters over a single CAT5e/6 cable with industry recognized HDBaseT technology
- Extends HDMI 1.4 audio and video signal from your HDMI source to a remote HDMI display up to 330ft (100m) at Full HD 1080p, up to 230ft (70m) at UHD 4K (3840x2160) through a single premium quality CAT5e/6 cable
Note: The transmission distance will vary depending on cable quality, 100% copper and IEEE-568B wiring standard recommended - Delivers crystal clear picture quality with resolution up to 3840x2160@30Hz (YUV 4:4:4 8-bit / YUV 4:2:0 10-bit)
- Pure unaltered uncompressed 7.1ch digital HDMI over CAT cable transmission, DTS-HD Master Audio and Dolby TrueHD high bit rate audio support
- Supports PoC (Power over Cable) technology which allows both the transmitter and receiver units to be powered using only one power adapter connected to either unit
- Bi-directional IR sensors allow you to remotely control the HDMI source device at the remote display side or control the remote display at the source device side
- High quality metal housing with cooling slots provide excellent ESD and electromagnetic protection plus excellent heat dissipation and cooling for stable operation during extended hours of use
- Slim profile design easily adopts into versatile application environment, wall mountable housing for easy and varied installation requirements
More from the Manufacturer
Technical InformationConnectivity Technology:WiredNumber of Input Devices Supported:1Number of Output Devices Supported:1Maximum Operating Distance:328.08 ft
Media & PerformanceMedia Type Supported:Twisted PairTwisted Pair Cable Standard:Category 6
Physical CharacteristicsTransmitter Height:0.83"Transmitter Width:2.87"Transmitter Depth:4.06"Form Factor:Wall MountableTransmitter Weight (Approximate):8 oz
4K HDMI HDBaseT Extender Over Single Cat5e/6 with RS-232, IR & PoC - 100mPower AdapterIR Blaster Extension Cable & IR Receiver Extension Cable4 x Mounting Ears 8 x Screw kit2 x Terminal Block kitUser Reference GuideCountry of Origin:TaiwanTAA Compliant:YesEnvironmentally Friendly:YesEnvironmental Compliance:Restriction of Hazardous Substances (RoHS)
