SIIG USB-C MST Video with Hub SIIG USB-C MST Video with Hub

International Customers: All electronic products are packaged for sale in the US with US voltage.

Package Contents: USB-C MST Video with Hub, LAN and PD 3.0 Docking User Reference Guide

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Country of Origin: China

Product Description

This item is brand-new, factory sealed.

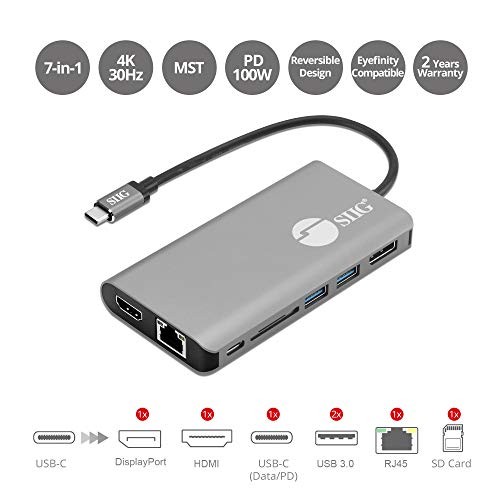

SIIG USB-C MST Dual Display Docking Station Video Adapter for Windows, Mac [Single 4k, Dual 1080p], 100W PD, Multi-Port Hub, 2 USB 3.0 ports, USB-C port, HDMI/DP/Gigabit Ethernet/SD (JU-DK0F11-S1)

• EXTREME POWERFUL: Transforms a single USB-C port (with DP Alt mode or Thunderbolt 3 technology) into multiple video connections and data transfer ports; including one DisplayPort, one HDMI, one Gigabit Ethernet, one SD memory card, one USB-C (data/ charging) and two USB 3.0 Type-A ports to your Windows, Mac computer
• MULTI STREAM TRANSPORT TECHNOLOGY Supports one Ultra HD 4K display or two Full HD 1080p displays output by MST technology. Supports Mirror mode with identical content displayed on each display, Extended mode with individual content displayed on each screen
• WIDE COMPATIBILITY: Supports PD 3.0 specification, provides up to 100W to power/charge. SuperSpeed USB 3.0 ports support data transfer rate up to 5Gb/s. Supports USB-C with DisplayPort Alternate mode and Thunderbolt 3 technology. Enables you to connect multiple USB peripherals simultaneously: mouse, keyboard, flash drive, printer & more. SD flash memory card slots support SD memory cards of up to 2TB capacity, perfect solution for transferring files from your portable devices to the computer
• PLUG-N-PLAY & SLIM COMPACT DESIGN: Plug-n-play, no driver installation or power adapter required. Slim and compact aluminum housing provides excellent heat dissipation and extra EMF protection for reliable performance, a great tool to increase your productivity for home, office or on-the-go or reliable performance, a great tool to increase your productivity for home, office or on-the-go
• 2 YEAR WARRANTY WITH PREMIUM CUSTOMER SUPPORT: Certifications/Standards: FCC, CE, RoHS. Our products are backed with a 2-year limited warranty and experienced tech support team in Silicon Valley. Contact us via Amazon or the manufacturer at " if you have any questions or concerns

• Part Number: JU-DK0F11-S1
• Item Weight: 4.2 ounces
• Product Dimensions: 4.6 x 0.6 x 2.4 inches
• Item model number: JU-DK0F11-S1
• Style: Type C MST Video with 100W PD for Mac
• Voltage: 5 volts
• Wattage: 100 watts
• Item Package Quantity: 1
• Certification: CE, FCC, RoHS
• Batteries Included?: No
• Batteries Required?: No

Style:Type C MST Video with 100W PD for Mac

Important Notes:
-Requires a USB-C port that supports DisplayPort Alternate Mode (DP Alt Mode). Not all USB-C ports/systems support DP Alt Mode functionality.
-Mac OS does not support MST function and will only mirror the displays.
-Requires GPU / graphics card to support at least 2 external displays to use both video ports at the same time with extended mode.
-The computer and power adapter must support PD 3.0 specification, otherwise the dock will reset when power delivery is disconnected.Specifications:
-Chipset: -Compatible with USB-C Alt-mode and Thunderbolt 3 technology
-Compatible with DisplayPort 1.2 with MST graphics cards with AMD Eyefinity, NVIDIA Surround and Intel Multiple Displays technology
-Power Delivery 3.0 specification: 20/12/5V @5A/3A/2A/1.5A, up to 100W
-USB data transfer rate: up to 5Gb/s
-Compatible networks: 10/100/1000 Mbps
-Memory Card Types: SDHC 2.0, SDXC 2.0 up to 40Mbps
-Memory Card Capacity: SDHC up to 32GB, SDXC up to 2TB (max)
- Power: USB Bus-poweredCertifications/Standards: FCC, CE, RoHSWarranty: 2 years limited Resolution:
Single video mode:
-DisplayPort: Up to 3840x2160 @30Hz
-HDMI: Up to 3840x2160p @30Hz
Dual video mode:
-DP+HDMI: Up to 1080p @60HzSystem Requirements
-Desktop or laptop computer with an available USB-C port (DP Alt Mode or Thunderbolt 3)
-Note: Requires a USB-C port that supports DisplayPort Alternate Mode (DP Alt Mode). Not all USB-C ports/systems support DP Alt Mode functionality
-Windows 10 / 8 / 7 (32-/64-bit)
-Mac OS X 10.13 or later
-Note: Mac OS does not support MST function and will only mirror the displays.

Package Contents:

• USB-C MST Video with Hub, LAN and PD 3.0 Docking
• User Reference Guide

SpecificationPower DescriptionMaximum Power Supply Wattage100 WPhysical CharacteristicsWeight (Approximate)4.16 Warranty2 YearInterfaces/PortsUSB Type-CYesUSB Type-C Detailfor PD 3.0 charging & USB 3.0 data transmissionNetwork (RJ-45)YesHost InterfaceUSB Type CDisplayPortYesNumber of DisplayPort Outputs1Number of HDMI Outputs1HDMIYesTotal Number of USB Ports4Number of USB 3.0 Ports3General InformationBrand NameSIIGMarketing Information Transforms a single USB-C port, with DP Alt mode or Thunderbolt 3 technology, into multiple connectivity ports including one USB-C port (Charge and Data), one HDMI port, one DisplayPort port, one Gigabit Ethernet, two USB 3.0 ports and one SD memory card slot Supports Mirror mode with identical content displayed on each display, Extended mode with individual content displayed on each screen DisplayPort Multi Stream Transport (MST) technology supports single 4K @30Hz Ultra HD video output, dual Full-HD 1080p video outputs Supports PD 3.0 specification, provides up to 100W to power/charge Laptops, Notebooks, and other peripheral devices Supports USB-C with DisplayPort Alternate mode and Thunderbolt 3 technology Enables you to connect multiple USB peripherals simultaneously such as mouse, keyboard, flash drive, printer and more USB Type-AGen-1 ports support data transfer rate up to 5Gb/s SD flash memory card slots support various SD memory cards of up to 2TB capacity, perfect solution for transferring files from your portable devices to your computer Plug-n-play, no driver installation or power adapter required Slim and compact aluminum housing provides excellent heat dissipation and extra EMF protection for reliable performance, a great tool to increase your productivity for home, office or on-the-go More from the Manufacturer Product TypeDocking StationProduct NameUSB-C MST Video with Hub, LAN and PD 3.0 DockingManufacturerSIIG, IncManufacturer Part NumberJU-DK0F11-S1TitleProduct TitleSIIG USB-C MST Video with Hub, LAN and PD 3.0 Docking - 7-in-1 MST Docking Station with 100W PD - MacOS for DP or HDMI Video (JUDK0F11S1)Technical InformationDevice Supported
