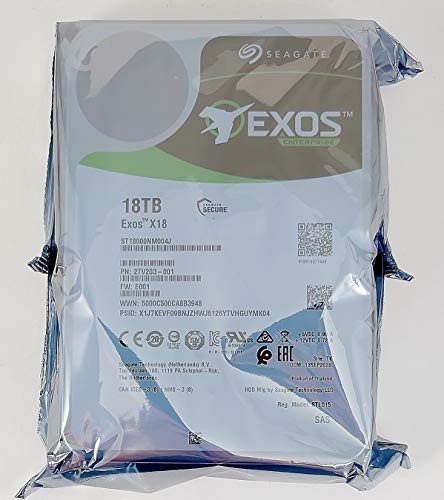

Seagate Exos X18 ST18000NM004J 18 TB Hard Drive - Internal - SAS [12Gb/s SAS] (248060) Seagate Exos X18 ST18000NM004J 18 TB Hard Drive - Internal - SAS [12Gb/s SAS] (248060)Device Supported:
Storage System
Video Surveillance System
Country of Origin: Thailand
Product Description
This item is brand-new, factory sealed.
Seagate manufactures hard drives that specifically address the demand for hyperscale cloud scalability. As the flagship of the Seagate X class, the Exos X18 enterprise hard drives are the highest-capacity hard drives in the fleet.
Maximum Storage Capacity for Highest Rack Space Efficiency
Market-leading 18TB HDD offering the highest capacity available for more petabytes per rack
Highly reliable performance with enhanced caching, making it the logical choice for cloud data center and massive scale-out data center applications
Hyperscale SATA model tuned for large data transfers and low latency
PowerBalance feature optimizes Watts/TB
Maximize total cost of ownership savings through lower power and weight with helium sealed-drive design
Proven helium side-sealing weld technology for added handling robustness and leak protection
Digital environmental sensors to monitor internal drive conditions for optimal operation and performance
Data protection and security Seagate Secure features for safe, affordable, fast, and easy drive retirement
Proven enterprise-class reliability backed by 5-year limited warranty and 2.5M-hr MTBF ratingFeatures
Helium Sealed-Drive Design
Yes
Conventional Magnetic Recording (CMR)
Yes
Protection Information (T10 DIF)
Yes
SuperParity
Yes
Low Halogen
Yes
PowerChoice Idle Power Technology
Yes
PowerBalance Power/Performance Technology
Yes
Hot-Plug Support
Yes
Cache, Multisegmented (MB)
256
Organic Solderability Preservative
Yes
RSA 3072 Firmware Verification (SD and D) Y
YesReliability/Data Integrity
Mean Time Between Failures (MTBF, hours)
2,500,000
Reliability Rating at Full 24x7 Operation (AFR)
0.35%
Nonrecoverable Read Errors per Bits Read
1 sector per 10E15
Power-On Hours per Year (24x7)
8760
512e Sector Size (Bytes per Sector)
512, 520, 528
4Kn Sector Size (Bytes per Sector)
4096, 4160,4224Performance
Spindle Speed (RPM)
7200RPM
Interface Access Speed (Gb/s)
12.0, 6.0, 3.0
Max. Sustained Transfer Rate OD (MB/s,MiB/s)
270/258
Random Read/Write 4K QD16 WCD (IOPS)
170/550
Average Latency (ms)
4.16
Interface Ports
Dual
Rotation Vibration at 20-1500 Hz (rad/sec2)
12.5Power Consumption
Idle A (W) Average
5.8W
Max Operating, Random Read/Write 4K/16Q (W)
9.9, 7.0
Power Supply Requirements
+12 V and +5 VEnvironmental
Temperature, Operating (oC)
5oC - 60oC
Vibration, Nonoperating: 2 to 500Hz (Grms)
2.27
Shock, Operating 2ms (Read/Write) (Gs)
50
Shock, Nonoperating 2ms (Gs)
200Item Dimension (L"xW"xH")
2 x 5 x 6
Weight
1.48 lbs
Warranty Information
5 Years SpecificationPhysical CharacteristicsWeight (Approximate)1.48 lbHot PluggableYesDrive Warranty5 YearInterfaces/PortsDrive Interface Standard12Gb/s SASDrive InterfaceSASGeneral InformationBrand NameSeagateMarketing InformationSeagate manufactures hard drives that specifically address the demand for hyperscale cloud scalability. As the flagship of the Seagate® X class, the Exos® X18 enterprise hard drives are the highest-capacity hard drives in the fleet. Maximum Storage Capacity for Highest Rack Space Efficiency Market-leading 18TB HDD offering the highest capacity available for more petabytes per rack Highly reliable performance with enhanced caching, making it the logical choice for cloud data center and massive scale-out data center applications Hyperscale SATA model tuned for large data transfers and low latency PowerBalance ™ feature optimizes Watts/TB Maximize total cost of ownership savings through lower power and weight with helium sealed-drive design Proven helium side-sealing weld technology for added handling robustness and leak protection Digital environmental sensors to monitor internal drive conditions for optimal operation and performance Data protection and security - Seagate Secure™ features for safe, affordable, fast, and easy drive retirement Proven enterprise-class reliability backed by 5-year limited warranty and 2.5M-hr MTBF rating Product TypeHard DriveProduct NameExos X18 ST18000NM004J Hard DriveManufacturerSeagate TechnologyManufacturer Part NumberST18000NM004JProduct ModelST18000NM004JProduct SeriesX18Product LineExosPackaged Quantity1TitleProduct TitleSeagate Exos X18 ST18000NM004J 18 TB Hard Drive - Internal - SAS [12Gb/s SAS]Drive PerformanceBuffer256 MBSpindle Speed (rpm)7200Network & CommunicationWireless LANNoTechnical InformationStorage Capacity18 TBDisk Format512e/4Kn Shipping
