Product description NO COMPROMISE SILENCE AND PERFORMANCE

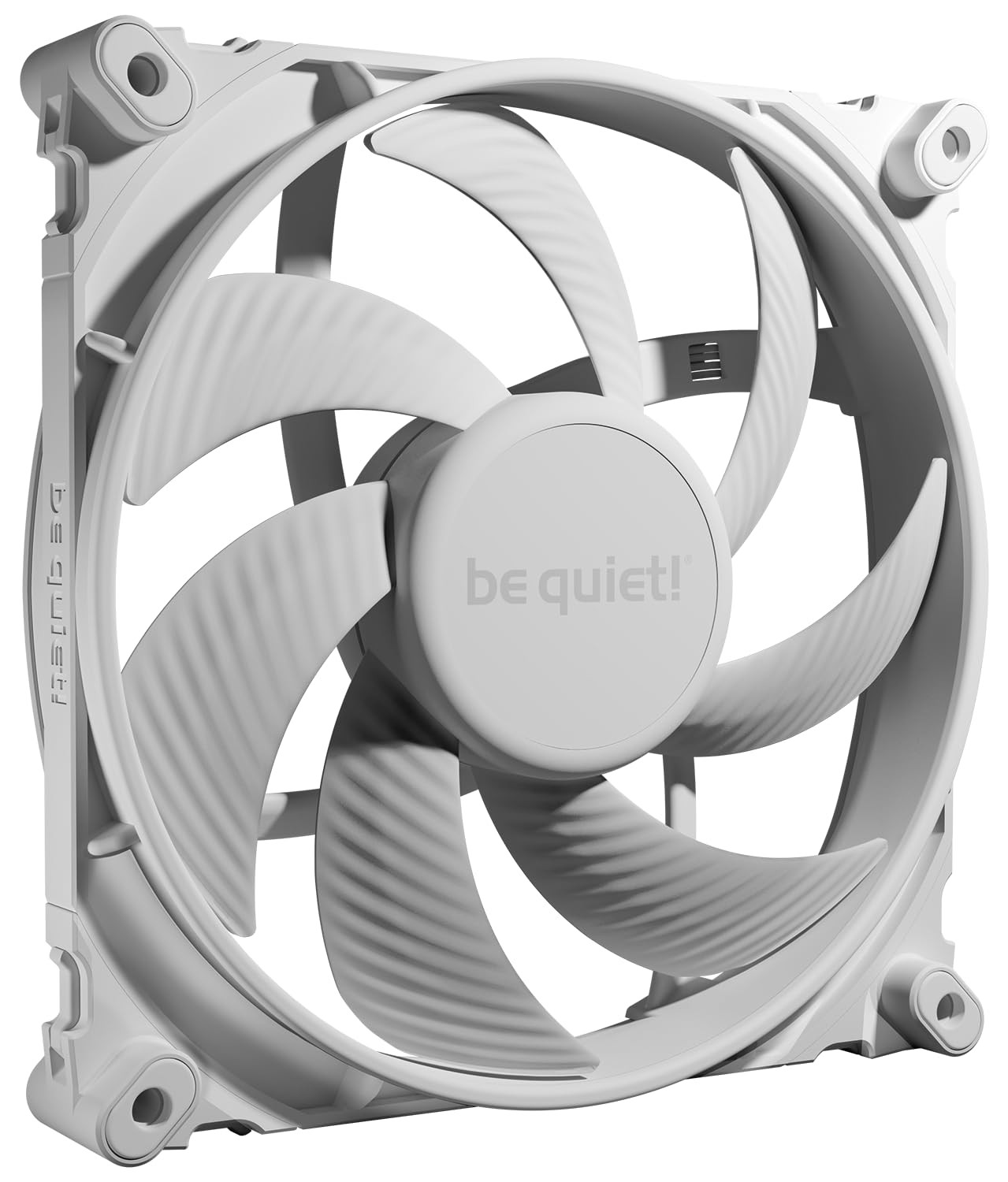

Silent Wings 4 140mm PWM high-speed White is the fan of choice for all possible operations. Be it in a case, on radiators or heat sinks – Features like the silence-optimized fan blades and the funnel shaped fan frame make Silent Wings 4 140mm PWM high-speed White a fan that makes no compromises between very quiet operation and high performance.
OPTIMIZED FOR HIGH-END PERFORMANCE
Silent Wings 4 140mm PWM high-speed White makes for extraordinary air pressure and, therefore, significant increases in the system’s performance. The decreased distance between the fan blades and the frame makes it possible. By that, the Silent Wings 4 140mm PWM high-speed White allows the user to run even the most demanding applications.
DIFFERENT MOUNTING OPTIONS
Silent Wings 4 140mm PWM high-speed White has 2 mounting options in the scope of delivery. The pre-installed anti-vibration mounting reduces noise-generating vibrations to a minimum. For radiators and heat sinks, the plastic mounting is the first choice. Both solutions have in common that they enable virtually inaudible operation at regular speed.
6-pole fan motor with 3 phases for very low power consumption, less vibration, and therefore quiet max. operation of 29,3dB(A). Equipped with this state-of-the-art technology, the fan provides smooth operation and makes for lower costs doing so.
6-POLE FAN MOTOR
The advanced fluid-dynamic bearing (FDB) enables a super long fan life of up to 300,000 hours. In addition, it reduces the vibrations significantly and supports the virtually inaudible operation of Silent Wings 4 140mm[TG1] PWM high-speed White.
ELEGANT LOOK
Be it as a radiator fan or in the case: Silent Wings 4 140mm PWM high-speed White always makes a good impression. The all-white design combined with the high-grade fan sticker makes the fan shine in any system. This makes Silent Wings 4 140mm PWM high-speed White a high performant and an incredibly good-looking fan.
Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.7 out of 5 stars 668 4.7 out of 5 stars 668 4.7 out of 5 stars 989 4.7 out of 5 stars 989 Price $24.90$24.90 $24.90$24.90 $24.90$24.90 $24.90$24.90 Dimensions, (W x H x D in mm) 140 x 140 x 25 140 x 140 x 25 140 x 140 x 25 140 x 140 x 25 Fan speed (rpm) @ 100% PWM 1100 1100 1900 1900 Noise level (dB(A)) @ 100% PWM 13.6 13.6 29.3 29.3 Airflow @ 100% PWM (cfm / m³/h) 51.3 / 87.16 51.3 / 87.16 78.4 / 133.2 78.4 / 133.2 Air pressure (mm / H²O) 0.92 0.92 2.36 2.36 Voltage range DC (V) 5 - 13.2 5 - 13.2 5 - 13.2 5 - 13.2 Input power (W) 3.6 3.6 4.8 4.8 Input current (A) 0.3 0.3 0.4 0.4 Connector 4-pin PWM 4-pin PWM 4-pin PWM 4-pin PWM Lifetime @ 25°C (h) up to 300,000 up to 300,000 up to 300,000 up to 300,000
- Optimized fan blades for the highest performance on radiators and heat sinks. Small tip clearance and a fan frame with funnel-shaped air outlets for extremely high air pressure
- 6-pole fan motor and fluid-dynamic bearing for less vibration and very smooth operations. Very silent operation even at maximum speed.
- Anti-vibration mounting with push pins and screwed installation option
- Super-long lifespan of up to 300,000h
- 5-year manufacturer warranty
