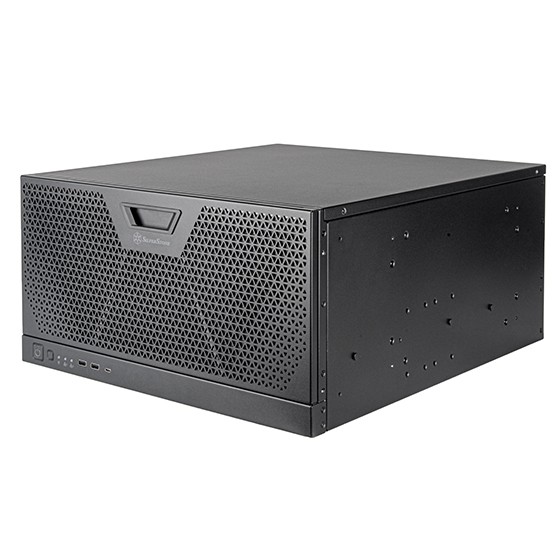

SilverStone Server Case SilverStone Server Case
This item is brand-new, factory sealed.
5U rackmount server chassis with dual 180mm fans and enhanced liquid cooling compatibility
Supports up to SSI-EEB motherboards
Includes 2 x Air Penetrator 184i PRO fans for superior air intake
Supports 360mm liquid cooling radiator
8 PCI expansion slots
Reserved sliding rail mounting holes for quick rail installation
Includes one USB Type-C interface
Upright or horizontal placement flexibility
Secondary PSU can be installed if 3.5" drive cage is to be left unoccupied
Dual-purpose chassis Industrial / Home
Designed for industrial rackmount or high-end home system usage, which can be placed in vertical or horizontal orientations.
Unparalleled rackmount cooling performance
2 x Air Penetrator 184i PRO fans pre-installed to provide excellent system cooling.
Downward compatible with 3 x 120mm fans which also allows for triple 120mm or dual 180mm liquid cooling radiator.
Tremendous hardware versatility
An internal 3.5" drive cage allows installation of 2 x 3.5" HDDs. If its to be left unoccupied, enables the option of installing a secondary PSU in SFX form factor
Excellent space maximization
To avoid any unforeseen damages to either the motherboard or the graphics cards, an expansion card retainer with storage drive mounting holes is included to prevent sagging of graphics cards while maximizing space utilization Model No.
SST-RM51 Chassis form factor
5U Motherboard
SSI-EEB, SSI-CEB, Extended ATX, ATX, Micro-ATX, Mini-ITX Material
Steel Drive Bay
Internal
3.5" x 2 (compatible with 2.5" x 3) + 3.5" x 2 (compatible with SFX PSU)
2.5" x 4 Power Supply
Primary PSU slot: PS2 (ATX) / Mini Redundant
Secondary PSU slot: SFX (occupies 3.5" bracket) Limitation of PSU
160mm to 190mm
(Removal of 3.5" drive cage eliminates PSU depth limitation) Cooling system
Front
120mm x 3 / 180mm x 2
(2 x Air Penetrator 184i PRO fans included)
Rear
Rear I/O: 120mm x 1 / 140mm x 1
Rear fan cage: 80mm x 2 Radiator support
Front
120mm x 3 / 120mm x 1 + 240mm x 1 / 360mm x 1 (120mm x 3) / 360mm x 1 (180mm x 2)
Rear
120mm x 1 Limitation of CPU cooler
Height w/ expansion card retainer: 181mm
Height w/o expansion card retainer: 192mm Expansion card
Length: 455mm (without installing front fans and radiators)
Width w/ expansion card retainer: 157mm
Width w/o expansion card retainer: 198mm Expansion Slot
8 Front I/O Port
USB Type-C x 1
USB 3.0 x 2 LED indicator
Power status x 1
HDD activity x 1
LAN activity x 2 Extra
Side switch for chassis intrusion securityItem Dimension (L inchxW inchxH inch)
26 x 23 x 17
Weight
74.00 lb
Warranty Information
1 year SpecificationPhysical CharacteristicsProduct MaterialSteelForm FactorRack-mountableWeight (Approximate)23.37 lbCooler TypeLiquid CoolerProduct ColorBlackHeight8.7"Color FamilyBlackCompatible Rack CPU Cooler Height14.17"I/O ExpansionsTotal Number of Expansion Slots8Interfaces/PortsUSB Port Details
- 1 x USB Type C
- 2 x USB 3.0
Front USBYesTotal Number of USB Ports3BaysNumber of Internal 2.5" Bays4Number of Internal 3.5" Bays2General InformationBrand NameSilverStoneMarketing Information Dual-purpose chassis - Industrial / Home Designed for industrial rackmount or high-end home system usage, which can be placed in vertical or horizontal orientations. Unparalleled rackmount cooling performance 2 x Air Penetrator 184i PRO fans pre-installed to provide excellent system cooling. Downward compatible with 3 x 120mm fans which also allows for triple 120mm or dual 180mm liquid cooling radiator. Tremendous hardware versatility An internal 3.5" drive cage allows installation of 2 x 3.5" HDDs. If it's to be left unoccupied, enables the option of installing a secondary PSU in SFX form factor Excellent space maximization To avoid any unforeseen damages to either the motherboard or the graphics cards, an expansion card retainer with storage drive mounting holes is included to prevent sagging of graphics cards while maximizing space utilization Highly versatile internal layout Server rack sliding rails can be easily fitted onto the chassis with the reserved mounting holes. *SST-RMS05-22(sold separately) Product TypeServer CaseProduct NameServer CaseManufacturerSilverStone Technology, IncManufacturer Part NumberRM51Product ModelSST-RM51TitleProduct TitleSilverStone Server Case (RM51)Technical InformationMotherboard Supported
- SSI EEB
- SSI CEB
- ATX
- Micro ATX
- Mini ITX
- EATX
Installed Fan Size7.09"Number of Fans Supported3Fan Size Supported4.72"Number of Fans Installed2 Shipping
