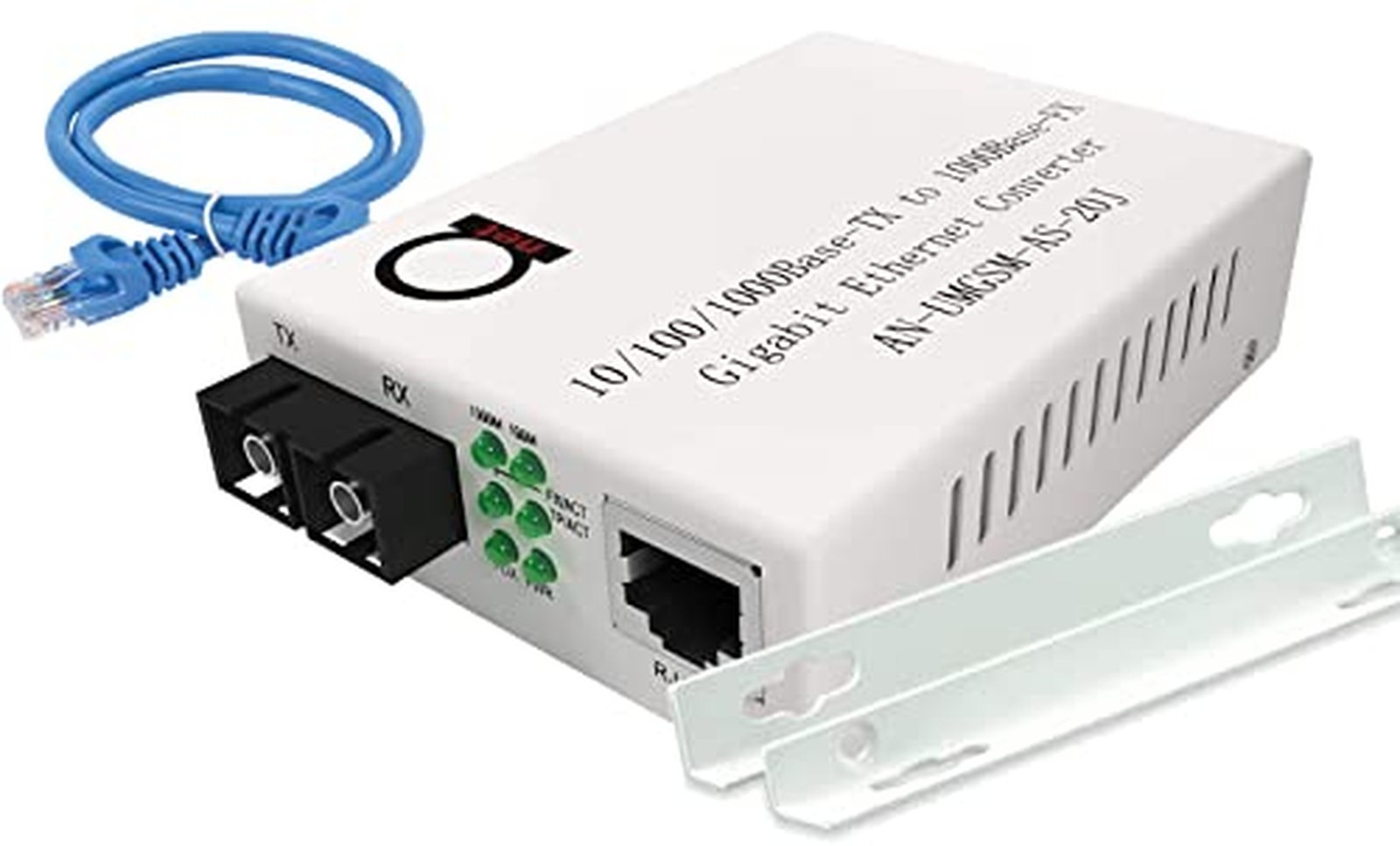

Single Mode SC Gigabit Fiber Media Converter to Ethernet RJ45, 20km/12.43mi
Product Details

• Brand: ADnet
• Connector Type: Optical, RJ45
• Cable Type: Ethernet
• Compatible Devices: [Most devices with Ethernet ports]
• Special Feature: High Speed
• Connector Type: Optical, RJ45
• Cable Type: Ethernet
• Compatible Devices: [Most devices with Ethernet ports]
• Other Special Features of the Product: High Speed
• Ethernet Cable Category: Cat 6
• Connector Gender: Male-to-Female
• Data Transfer Rate: 1000 megabytes_per_second
• Number of Pins: 8
• Maximum Voltage: 240 volts
• Connectivity Technology: Ethernet
• Recommended Uses For Product: long-distance network extension, enterprise, industrial, and outdoor use
• Indoor Outdoor Usage: Indoor, Outdoor
• Color: Beige
• Item Shape: Flat
• Brand Name: ADnet
• Model Name: AN-UMGSM-MM-1310
• Customer Package Type: Standard Packaging
• Model: AN-UMGSM-AS-20J
• Item Length: 9.4 centimeters
• Manufacturer: AD-net Technology, CO., LTD (Taiwan)
• UPC: 789185566562
• Part Number: AN-UMGSM-AS-20J
• Unit Count: 1 Count
• Item Weight: 183 g
• Number of Items: 1

• 1000BASE-LX SINGLE-MODE SC, 20 KM / 12.43 MILES - Converts 10/100/1000 copper Ethernet to 1310nm single-mode fiber and back. The SC module is built into the unit and factory-aligned - nothing to fit, match or configure. Optical budget reaches 20 km over OS2 9/125 single-mode. Compliant with IEEE 802.3z 1000Base-LX.
• DUAL-FIBER: TWO STRANDS, ONE TX AND ONE RX - The optical interface is a duplex SC pair, so the link needs two single-mode strands between the ends - transmit on one, receive on the other, with TX at each end landing on RX at the other. The patch cord to order is duplex SC-to-SC single-mode.
• RJ45 10/100/1000BASE-T AUTO-NEGOTIATING, AUTO MDI/MDI-X - Copper port negotiates 10Base-T, 100Base-TX and 1000Base-T automatically against switches, routers, NAS, NVRs, access points and PCs. Cat5e or Cat6 UTP. Compliant with IEEE 802.3, 802.3u and 802.3ab.
• 9000-BYTE JUMBO FRAMES, QinQ AND 802.1Q TRANSPARENT, FOUR DIP SWITCHES - MTU carries stacked VLAN tags intact, so the link passes a tagged trunk without stripping or re-writing. Four rear DIP switches: LLF link-loss forwarding on/off, broadcast storm control on/off, fiber port dropped to 100Base-LX for legacy Fast Ethernet nodes, and copper port forced to 100M. All four ship off.
• SUPPLIED READY TO LINK - SC fiber module built in, 100-240 VAC power adapter, a 1 m (39 in) Cat6 patch cord, wall-mount ears and anti-slip rubber buttons for desktop use. External requirement is a duplex SC single-mode patch cord at each end and two single-mode strands between them.
• 0 TO 70 C, FANLESS, 94 X 70.5 X 26.5 MM - Operating range 0 to 70 C (32 to 158 F), relative humidity 5 to 90 percent, no moving parts. Desktop or wall mount. Status LEDs: Power, Link/Activity, Full-Duplex, Speed. Runs on standard AC via the supplied adapter.
