Solectrix proFRAME 3.0 LI-PCIEFG-GMSL2 8-Port GMSL2 Frame Grabber

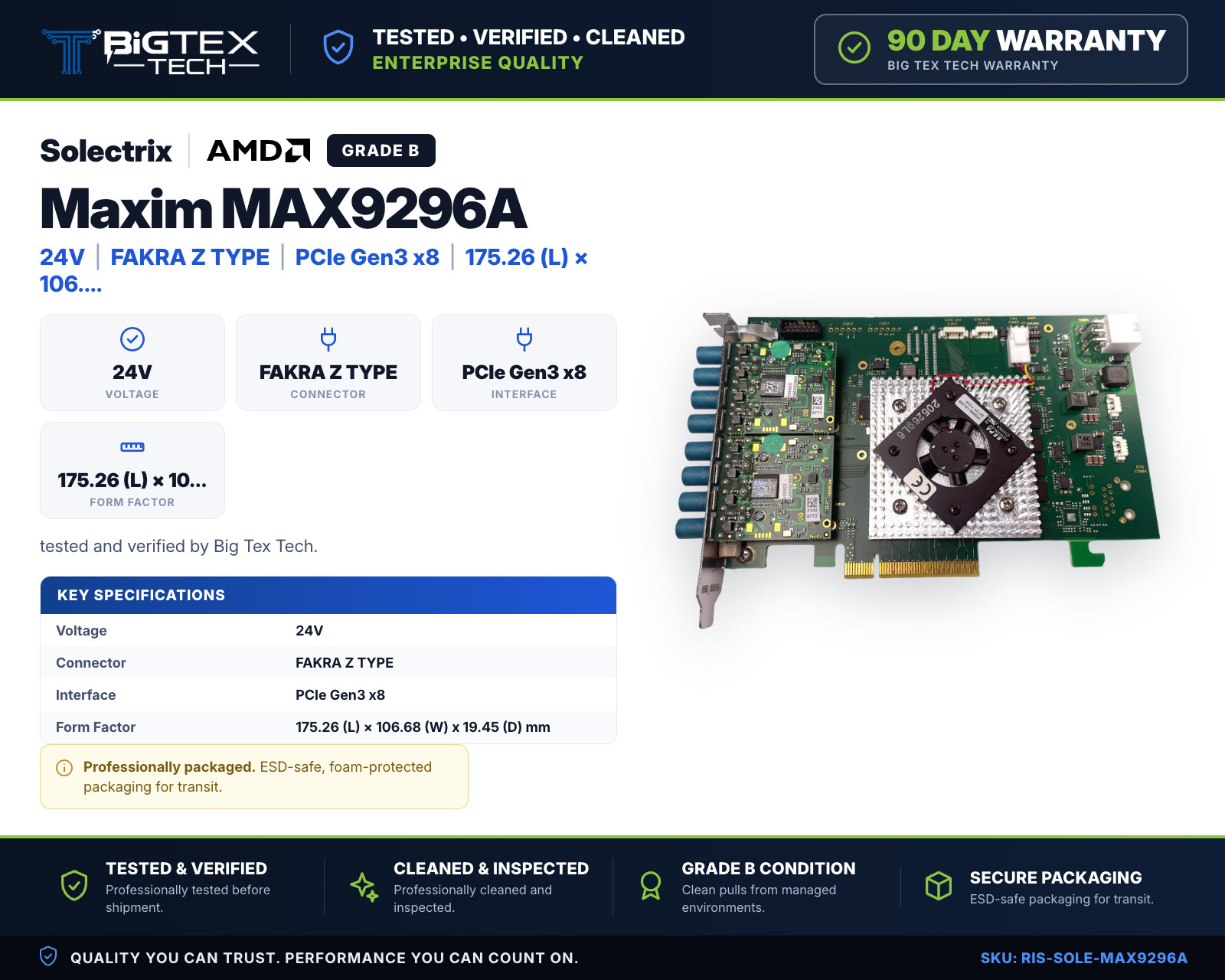

The Solectrix proFRAME 3.0 (configured as Leopard Imaging LI-PCIEFG-GMSL2) is a professional-grade automotive video frame grabber designed for high-speed synchronized GMSL2 camera capture and playback. Built on the powerful Xilinx Zynq UltraScale+ ZU4CG MPSoC platform, this card enables the simultaneous acquisition of up to eight camera streams via Rosenberger FAKRA coax connectors using Maxim MAX9296A deserializers.

This industrial-grade platform is essential for ADAS development, autonomous vehicle perception testing, and Hardware-in-the-Loop (HiL) simulation. This unit was pulled from a working enterprise environment and has been fully tested for functionality.

Tested & Working Condition

This unit is in Good (Grade B) condition. It has been professionally tested and shows light cosmetic wear consistent with use in a lab or data logging environment. All FAKRA connectors and the PCIe gold fingers are intact and free of physical damage.

Key Features & Specifications

• Host Interface: PCIe Gen3 x8 (64 Gbit/s raw bandwidth)
• FPGA / SoC: AMD Xilinx Zynq UltraScale+ ZU4CG MPSoC
• Memory: 2GB DDR4 processing-system memory
• Deserializers: 2x camAD3 DUAL MAX9296A GMSL2 (Dual Maxim MAX9296A per adapter)
• Camera Connectivity: 8x Rosenberger FAKRA Z-Type Coax Connectors
• Video Interface: MIPI CSI-2 / LVDS
• Power over Coax (PoC): Supported, 8V to 24V DC
• Data Rate: Up to 10 Gbit/s per CSI-2 interface; 40 Gbit/s total per adapter slot
• Synchronization: FSYNC trigger synchronization and high-precision hardware time-stamping
• Form Factor: Full-height, half-length (175.26 x 106.68 x 19.45 mm)

What's Included

• 1x Solectrix proFRAME 3.0 PCIe Card (Marked SX_PCIEX8_G3_C)
• 2x camAD3 DUAL MAX9296A Adapters (Pre-installed)

Note: Software, drivers, API libraries, FAKRA cables, and external power supplies are NOT included.

Compatibility & Requirements

Host Compatibility: Standard PCIe Gen3 x8 or x16 slots in industrial PCs, server-grade data loggers (e.g., ADAS Recorders), and workstation motherboards.

Software: Typically requires specific SDK/API support for Windows 10 or Linux as provided by Solectrix or Leopard Imaging.

Hardware Notice: This is NOT an Ethernet NIC or SFP network card. It is a specialized automotive SerDes interface card for GMSL2 cameras. Ensure your cameras utilize GMSL2 protocol and FAKRA Z-type cabling.
