SPECIFICATIONS:

Connector(s)

1 - Connector A

USB-C (24 pin) DisplayPort Alt Mode

1 - Connector B

HDMI (19 Temperature

0° C to 45° C

Storage Temperature

-20° C to 60° Output

HDMI - 1.4

Audio

Yes

Chipset ID

DP Converter: Parade PS171

Controller: STM32F072CBU6 or VL103

Packaging Information

Package Height

0.4 in [10 mm]

Package Length

8.7 in [22 cm]

Shipping (Package) Weight

1.1 oz [30 g]

Package Width

7.9 in [20 cm]

Performance

Audio Specifications

HDMI - 7.1 Channel Audio

Video Revision

HDMI 1.4

Maximum Cable Distance To Display

49.9 ft [15.2 m]

Maximum Digital Resolutions

3840 x 2160 (Ultra HD 4K) @30hz

Supported (High-definition 720p)

1920x1080 (High-definition x 2160 (Ultra HD 4K) @30hz

Wide Screen Supported

Yes

Physical Characteristics

Weight of Product

0.8 oz [22 Length

2.6 in [67 mm]

Product Length

5.8 in [14.7 cm]

Product Width

0.9 in [23 mm]

Product Height

0.4 in [9 mm]

Special Notes / Requirements

System and Cable Requirements

Your USB-C port must support DisplayPort over USB-C (DP Alt mode) in order to work with this adapter.

What's in the Box

1 - Included in Package

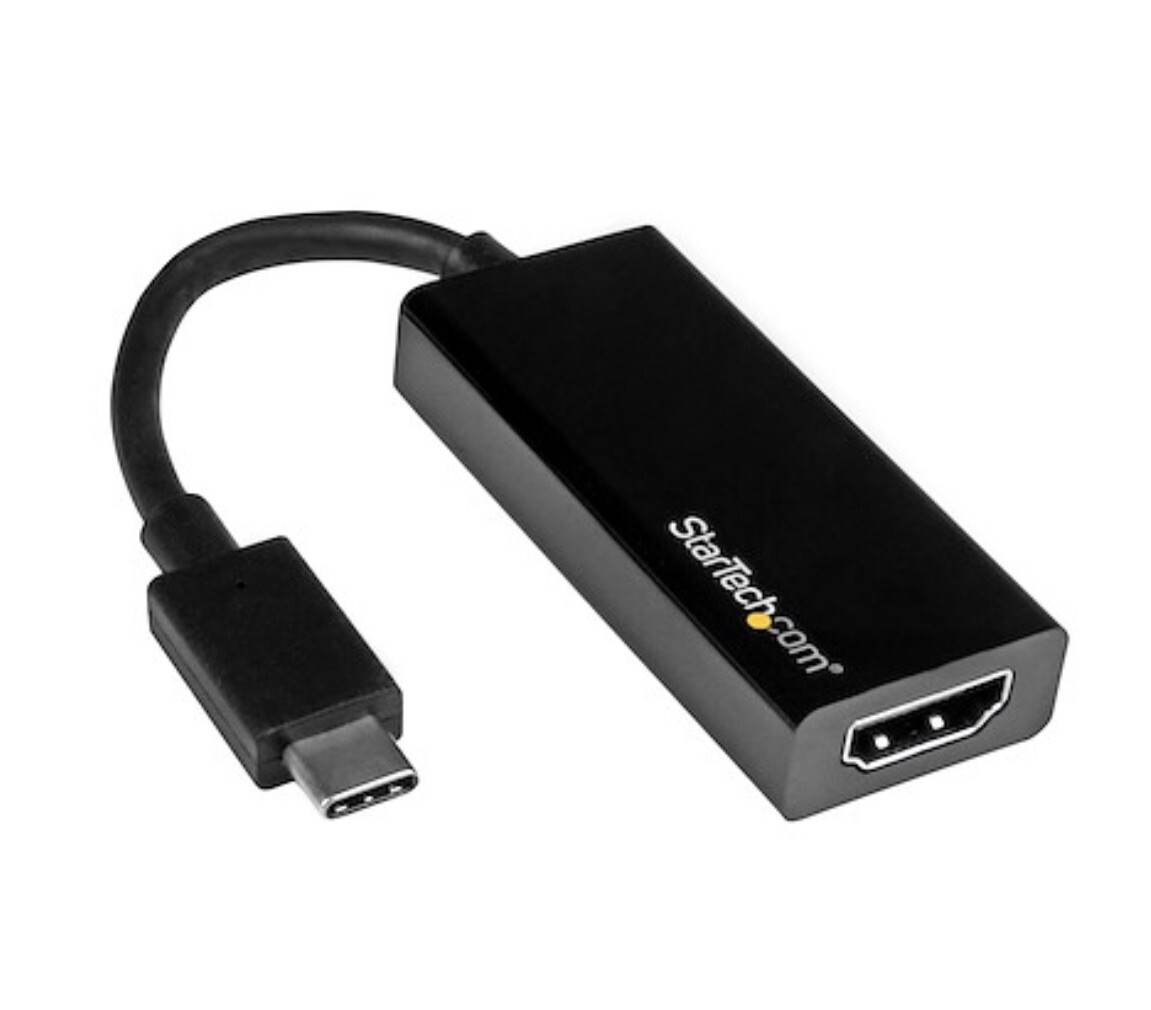

USB-C to HDMI adapter
