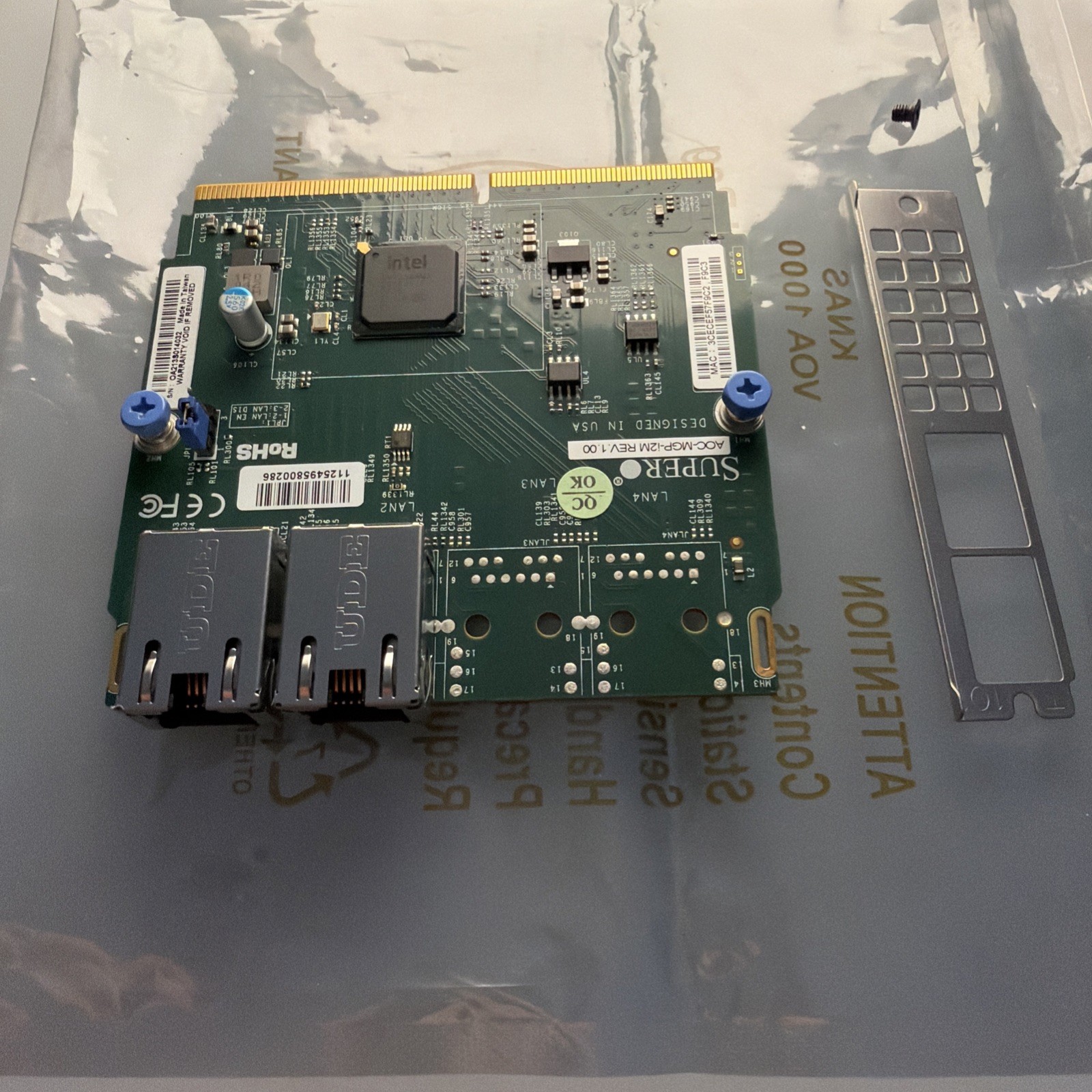

Up for sellingSupermicro AOC-MGP-i2M Intel i350 2-Port RJ45 10/100/1000GBase-T SIOM Network card NIC with BKT-0085L bracket and screw.Removed from New server for upgrade reasons. Includes SIOM Card, with BKT-0085L bracket and screw.BKT-0085L2-port Gigabit Ethernet Adapter with an internal bracket for 1U chassis (Twin
SYS-2029BT-HNR, SYS-2029BT-HNTR, SYS-2029BT-HTR, SYS-F619P2-RC1, SYS-F619P2-RC0,
SYS-F619P2-RT, SYS-F619P2-RTN, Ultimate Ethernet Controllers in Supermicro Super I/O Module
Supermicro® Super I/O Modules provide flexible I/O networking options and the AOC-MGP-i2M is the most flexible and scalable GbE SIOM controller. Based on Intel GbE network controller i350, it is designed with performance enhancing features and power management technologies.Key Features• Super I/O Module (SIOM) Form Factor
• Intel® i350 GbE controller
• Dual RJ45 Ports
• VMDq and SR-IOV for Virtualized Environments
• Jumbo Frames support
• Energy Efficient Ethernet (EEE)
• iSCSI Remote Boot Support
• PXE Boot Support
• Support for most Network Operating Systems
• Asset Management Features
• NC-SI for Remote Management
• RoHS compliant 6/6Power Management and Efficiency
- Energy Efficient Ethernet (EEE)
- DMA Coalescing reduces platform power consumption
- Active State Power Management (ASPM) support
- LAN disable function
- MAC Power Management controls
- Low Power Link Up - Link Speed Control
Virtualization Features
- PC-SIG SR-IOV support
- VM to VM Packet forwarding (Packet Loopback)
- Flexible Port Partitioning
- IEEE 802.1q VLAN support
- IEEE 802.1q advanced packet filtering
- Jumbo Frames support
Performance Features
- TCP/UDP, IPv4 and IPv6 checksum offloads to improveCPU usage
- Low Latency Interrupts
- Tx TCP segmentation offload (IPv4, IPv6) increasesthroughput and lowers processor usage
- Receive Side Scaling (RSS) for Windows environment,Scalable I/O for Linux environments
- Intelligent interrupt generation
Management Features
- Preboot eXecution Environment (PXE) support
- iSCSI Remote Boot Support
- Asset Management support on Supermicro® platforms
- Controller asset tags such as part number, revision,serial number, and MAC addresses
- NC-SI for remote management
OS Support
- Windows Server 2012 R2, 2012, 2008 R2 (x64 Edition)
- Windows 8.1, 8, 7 (x64 Edition)
- RedHat Linux
- SUSE Linux
- FreeBSD
- UEFI
- VMWare
Cables Support
- RJ45 Category 5/5e up to 100m
Power Consumption
- Typical 3W, Maximum 3.7W
Operating Conditions
- Operating temperature: 0°C to 55°C (32°F to 131°F)
- Storage temperature: -40°C to 70°C (-40°F to 158°F)
- Storage humidity: 90% non-condensing relative humidityat 35°C
Physical Dimensions (W x D)
- Card PCB dimensions: 92mm (3.62in) x 87.1mm (3.43in)
Supported Platforms
- Supermicro® motherboards with Super I/O Module slot
- Supermicro® server systems with Super I/O Module slot
