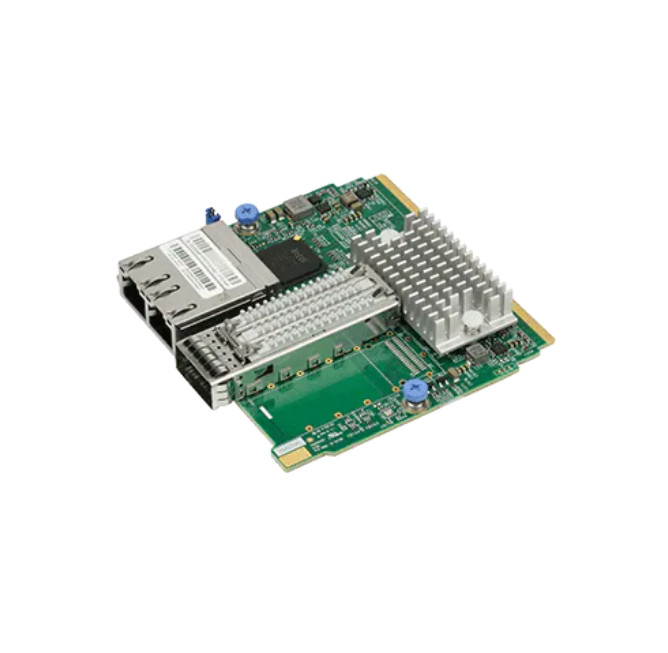

The Ultimate InfiniBand FDR Adapter, in Supermicro Super I/O Module (SIOM) Form FactorThe AOC-MHIBF-m1Q2G is the most powerful InfiniBand controller in the IT market. In small formfactor SIOM, available as part of an integrated solution with Supermicro servers, it provides both InfiniBand FDR 56Gbpsand 40Gbps Ethernet as well as remote server management through a dedicated Gigabit LAN controller. Based on Mellanox®ConnectX-3 Pro and Intel® i350 controllers, it provides the highest performing and most flexible interconnect solution forSupermicro servers in Enterprise Data Centers and High-Performance Computing deployments.
GbE RJ45 Specifications
• Ethernet and Virtualization Features: - PC-SIG SR-IOV support - Jumbo Frames support• Performance and Efficiency Features: - Energy Efficient Ethernet (EEE) - TCP/UDP, IPv4 and IPv6 checksum offloads to improve CPU usage - Low Latency Interrupts• Management Features: - Asset Management support on Supermicro® platforms - Preboot eXecution Environment (PXE) support - iSCSI Remote Boot Support - NC-SI for Remote Management via Intel® i350 GbE RJ45 connector• Operating System Support: - Windows Server 2012 R2, 2012, 2008 R2 (x64 Edition) - Windows 8.1, 8, 7 (x64 Edition) - RedHat Linux - SUSE Linux - FreeBSD - UEFI - VMwareInfiniBand FDR QSFP Specifications
• Connectivity: - Interoperable with InfiniBand or 40GbE switches - Passive copper cable with ESD protection• InfiniBand: - IBTA Specification 1.2.1 compliant - Hardware-based congestion control - 256 to 4Kbyte MTU, 2GB messages• Enhanced InfiniBand: - Hardware-based reliable transport - Collective operations offloads - Hardware-based reliable multicast - Extended Reliable Connected transport - Enhanced Atomic operations• Ethernet: - IEEE 802.3ba 40 Gigabit Ethernet - IEEE Std 802.3ad Link Aggregation - IEEE Std 802.3az Energy Efficient Ethernet - IEEE Std 802.1Q, .1P VLAN tags and priority - IEEE P802.1bb D1.0 Priority-based Flow Control - IEEE 1588 - Jumbo frame support (9600B)• Hardware-based I/O Virtualization: - Single Root IOV - Address translation and protection - Dedicated adapter resources - Multiple queues per virtual machine - Enhanced QoS for vNICs - VMware NetQueue support• Overlay Networks: - VXLAN and NVGRE• Additional CPU Offloads: - RDMA over Converged Ethernet - TCP/UDP/IP stateless offload - Intelligent interrupt coalescence• FlexBoot™ Technology: - Remote boot over InfiniBand - Remote boot over Ethernet - Remote boot over iSCSI• Protocol Support: - Open MPI, OSU MVAPICH, Intel MPI, MS - MPI, Platform MPI - TCP/UDP, EoIB, IPoIB, RDS - SRP, iSER, NFS RDMA - uDAPL• Operating System Support: - Citrix XenServer 6.1 - RHEL/CentOS 5.X and 6.X, Novell SLES10 SP4; SLES11 SP1, SLES 11 SP2, OEL, Fedora 14, 15, 17, Ubuntu 12.04 - Windows Server 2008/2012/2012 R2 - FreeBSD - OpenFabrics Enterprise Distribution (OFED) - OpenFabrics Windows Distribution (WinOF) - VMware ESXi 4.x and 5.x
