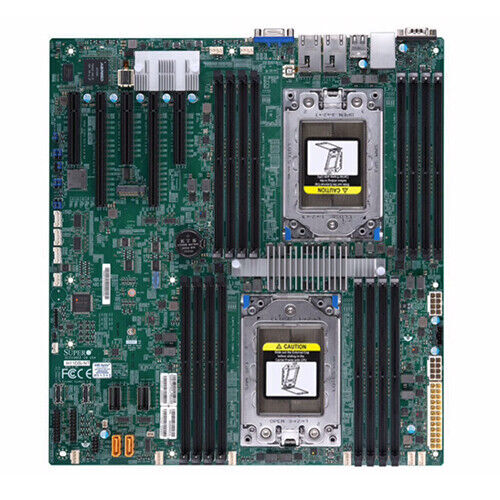

Key Features1.Dual AMD EPYC™ 7001/7002*Series Processors (*AMD EPYC 7002 series drop-in
support requires board revision 2.x)2.2TB Registered ECC DDR4 2666MHz SDRAM in 16 DIMMs
4TB Registered ECC DDR4 3200MHz SDRAM in 16 DIMMs (Board revision 2.x required)3.Expansion slots:
 2 PCI-E 3.0 x16
 3 PCI-E 3.0 x8
 M.2 Interface: 1 SATA/PCI-E 3.0 x2
 (Platform with EPYC 7002 processor
 only supports PCI-E type M.2 module)
 M.2 Form Factor: 2280, 22110
 M.2 Key: M-key
4.10 SATA3, 1 M.2, 2 SATA DOM5.Dual 10GBase-T LAN Ports6.ASPEED AST2500 BMC graphics7.Up to 2 USB 3.0 ports
Up to 4 USB 2.0 ports8.8 4-pin PWM Fan & Speed control
Product SKUs
MBD-H11DSi-NT

• H11DSi-NT (Bulk Pack)

Physical Stats
Form Factor

• 12" x 13.05" (30.5cm x class="desc" style="box-sizing: border-box; margin: 0px; padding: 0px; font-weight: bold; color: rgb(93, 139, 96) !important;">
• Dual AMD EPYC™ 7001/7002*series Processors (*Board revision 2.x required)
• Socket SP3
• Up to 240W TDP

Cores

• Up to 32 Cores
• Up to 64 Cores (Board revision 2.x required)

Chipset

• System on Chip

System Memory
Memory Capacity

• 16 DIMM sockets
• Supports up to 2TB Registered ECC DDR4 2666MHz SDRAM
• Supports up to 4TB Registered ECC DDR4 3200MHz SDRAM (Board revision 2.x required)
• 8-channel memory bus

Memory Type

• DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs
• DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs (Board revision 2.x required)

DIMM Sizes

• 8GB, 16GB, 32GB, 64GB, 128GB, 256GB*(*Board revision 2.x required)

Memory Voltage

• 1.2V

Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)

On-Board Devices
SATA

• SATA3 (6 Gbps)

IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED AST2500 BMC

Network Controllers

• Intel® X550 10G Base-T Ethernet Controller
• 1 Realtek RTL8211E PHY (dedicated IPMI)

VGA

• ASPEED AST2500 BMC

Input / Output
SATA

• 10 SATA3 (6 Gbps) ports

NVMe

• 2 Internal NVMe Ports (PCI-E 3.0 x4)

LAN

• 2 RJ45 10GBase-T ports
• 1 RJ45 Dedicated IPMI LAN port

USB

• 2 USB 3.0 ports (rear)
• 4 USB 2.0 ports (2 rear + 2 via header)

VGA

• 1 VGA port

Others

• 1 COM port (rear)
• 2 SATA DOM power connectors
• 1 TPM 2.0 header

Expansion Slots
PCI-Express

• 3 PCI-E 3.0 x8
• 2 PCI-E 3.0 x16

M.2

• Interface: 1 SATA/PCI-E 3.0 x2
  (Platform with EPYC 7002 processor only supports PCI-E type M.2 module)
• Form factor: 2280, 22110
• Key: M-key

Chassis ( Optimized for H11DSI-NT )
2U

• SC213AC-R1K23LPB
• SC825TQC-R802LPB
• SC745BAC-R1K28B2
• AS -4023S-TRT

System BIOS
BIOS Type

• AMI 128Mb SPI Flash EEPROM

BIOS Features

• Plug and Play (PnP)
• DMI 2.3
• PCI 2.2
• ACPI 5.1
• USB Keyboard Support
• SMBIOS class="desc" style="box-sizing: border-box; margin: 0px; padding: 0px; font-weight: bold; color: rgb(93, 139, 96) !important;">
• SuperDoctor 5
• Watch Dog
• NMI
• SUM
• IPMI 2.0, KVM with dedicated LAN

Power Configurations

• ACPI Power Management
• Power-on mode control for AC power loss recovery

PC Health Monitoring
CPU

• Monitors CPU Core Voltages, +1.1V, +1.5V, +1.8V, +12V, +5V, +5V standby
• CPU switching voltage regulator

FAN

• Up to 8-fan status tachometer monitoring
• Up to eight 4-pin fan headers
• Dual Cooling Zone
• Status monitor for speed control
• Pulse Width Modulated (PWM) fan connectors

Temperature

• Monitoring for CPU and chassis environment
• CPU Thermal Trip Support
• Thermal control for 8x Fan connectors
• I2C Temperature Sensing Logic

LED

• CPU / System Overheat LED

Other Features

• Chassis Intrusion Detection
• Chassis Intrusion Header
• Operating Temperature:
  10°C to 35°C (50°F to 95°F)
• Non-operating Temperature:
  -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity:
  8% to 90% (non-condensing)
• Non-operating Relative Humidity:
  5% to 95% (non-condensing)
