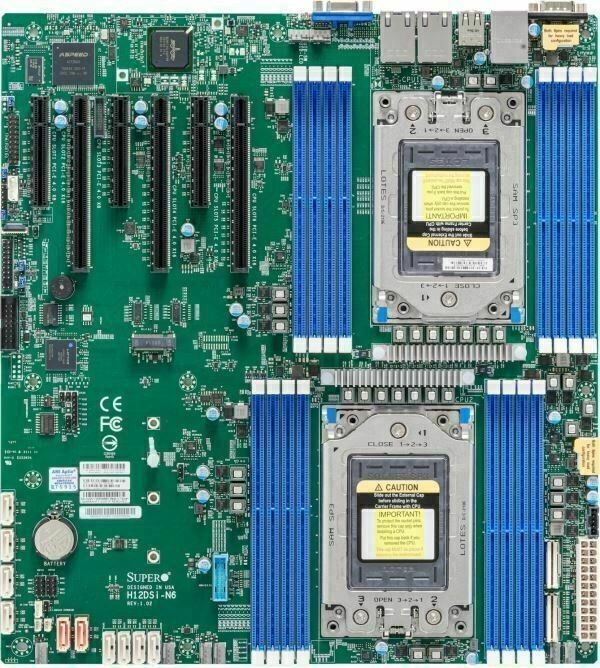

Supermicro H12DSI-N6 Motherboard EATX For AMD EPYC 7002/7003 Rome/Milan CPU SP3
Product Description
Key Features
1.Dual AMD EPYC™ 7003/7002 Series Processors
2.4TB Registered ECC DDR43200MHz SDRAM in 16 DIMMs
3.Expansion slots:
3 PCI-E 4.0 x16 slots, 3 PCI-E 4.0 x8 slots
M.2 Interface: 1 PCI-E 4.0 x4
M.2 Form Factor: 2280, 22110
M.2 Key: M-key
4.10 SATA3, 2 SATADOM, 4 NVMe
5.Dual Gigabit LAN ports,
1 dedicated IPMI LAN Port
6.ASPEED AST2600 BMC graphics
7.2 USB 2.0 ports (rear),
4 USB 3.0 ports (2 rear, 2 headers)
8.8x 4-pin PWM Fans & Speed control
Specifications
Product SKUs
MBD-H12DSi-N6
Physical Stats
Form Factor
Dimensions
- 12" x 13.05" (30.5cm x 33.1cm)
Processor/Chipset
CPU
- Dual AMD EPYC™ 7003/7002 Series Processors
- Socket SP3
Cores
Chipset
System Memory
Memory Capacity
- 16 DIMM slots
- Supports up to 4TB Registered ECC DDR4 3200MHz SDRAM
- 8-channel memory bus
- For Dual CPUs: Recommended that memory be populated equally in adjacent memory banks
Memory Type
- DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
DIMM Sizes
- 8GB, 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage
Error Detection
- Corrects single-bit errors
- Detects double-bit errors (using ECC memory)
On-Board Devices
SATA
IPMI
- Support for Intelligent Platform Management Interface v. 2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- ASPEED AST2600 BMC
Network Controllers
- Dual LAN via Broadcom BCM5720L Gigabit Ethernet Controller
VGA
Input / Output
SATA
LAN
- 2x 1GbE LAN ports
- 1 RJ45 Dedicated IPMI LAN port
USB
- 2 USB 2.0 ports (rear)
- 4 USB 3.0 ports (2 rear, 2 headers)
VGA
Others
- 1 COM port (rear)
- 2 SATA DOM power connectors
- 4 PCI-E 4.0 NVMe x4 internal ports
- TPM 2.0 header
Expansion Slots
PCI-Express
- 3 PCI-E 4.0 x16 slots
- 3 PCI-E 4.0 x8 slots
M.2
- Interface: 1 PCI-E 4.0 x4
- Form Factor: 2280, 22110
- Key: M-key
Chassis ( Optimized for H12DSi-N6)
2U
- SCLA25TQC-R609LP
- SCLA26AC12-R920LP1
3U
Server(s) (with H12DSi-N6)
Model(s)
System BIOS
BIOS Type
- AMI 256Mb SPI Flash EEPROM
BIOS Features
- Plug and Play (PnP)
- DMI 2.3
- PCI 2.2
- ACPI 6.2
- USB Keyboard Support
- SMBIOS 3.1.1
Management
Software
- SuperDoctor 5
- Watch Dog
- NMI
- SUM
- IPMI 2.0, KVM with dedicated LAN
Power Configurations
- ACPI Power Management
- Power-on mode control for AC power loss recovery
PC Health Monitoring
CPU
- Monitors CPU Core Voltages, +1.5V, +1.8V, +12V, +5V, +5V standby
- CPU switching voltage regulator
- VBAT
FAN
- Up to 8 fan status tachometer monitoring
- Up to 8x 4-pin fan headers
- Status monitor for speed control
- Pulse Width Modulated (PWM) fan connectors
Temperature
- Monitoring for CPU and chassis environment
- CPU Thermal Trip Support
- Thermal control for 8x Fan connectors
- I²C Temperature Sensing Logic
LED
- CPU / System Overheat LED
Other Features
- Chassis Intrusion Detection
- Chassis Intrusion Header
Operating Environment / Compliance
Environmental Specifications
- Operating Temperature:
10°C to 35°C (50°F to 95°F) - Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F) - Operating Relative Humidity:
8% to 90% (non-condensing) - Non-operating Relative Humidity:
5% to 95% (non-condensing)
Parts List
Bulk Pack List
Part Number Qty Description Motherboard MBD-H12DSi-N6-B 1 H12DSi-N6 Motherboard I/O Shield MCP-260-00042-0N 1 STD I/O SHIELD
